The best video camera that has ever been used in video intercom

Slinex ML-20HD is an incredible video camera with a 2-megapixel sensor and a 115° viewing angle that provides a highly detailed and wide image. When combined with the sleek design of the ML-20 series, the panel transforms into a work of art.


First acquaintance

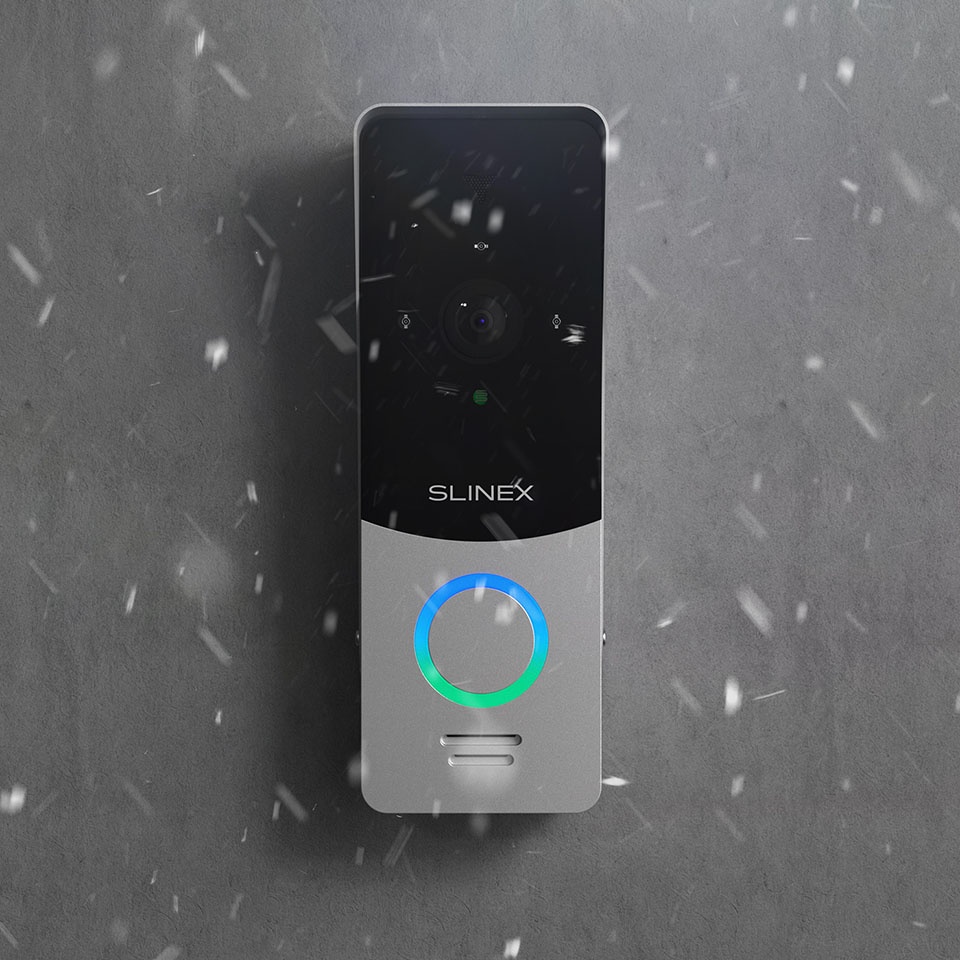

The Slinex ML-20HD outdoor panel is not only highly functional, but also incredibly stylish. The metal alloy case comes in two color combinations and has a polycarbonate overlay with an LED backlit call button that adds a decorative touch to any apartment, house, or office entrance.


The ML-20HD panel is unique with a constant video signal function, a large viewing angle, and a high-resolution camera.


Where it can be used

Slinex ML-20HD is an outdoor panel for one subscriber that is suitable for various settings, including:

• Businesses that usually operate by appointment, such as dentists, beauty salons, notary offices, etc.
• Night shops and pharmacies
• Small offices
• In a common corridor or at the door to an apartment
• Private houses, etc.


The design of the ML-20HD panel enables it to easily fit into the interior or exterior of any room. It works perfectly in conjunction with a video intercom, and as part of a complete video surveillance system due to its unique feature - the ability to continuously record video.


Appearance and camera

The 2-megapixel AHD camera on the ML-20HD has a 115° viewing angle that captures Full HD images and videos with the smallest details. Even at night, the IR illumination with a mechanical filter allows you to see the caller at the door. The signal format includes AHD 1080p (2 MP), AHD 720p (1 MP), or CVBS (PAL).


Regarding the ML-20HD panel housing, its IP65 protection class means that the panel is not affected by snow, rain, or dust. Additionally, the panel works flawlessly in temperatures ranging from -40°C to +50°C.

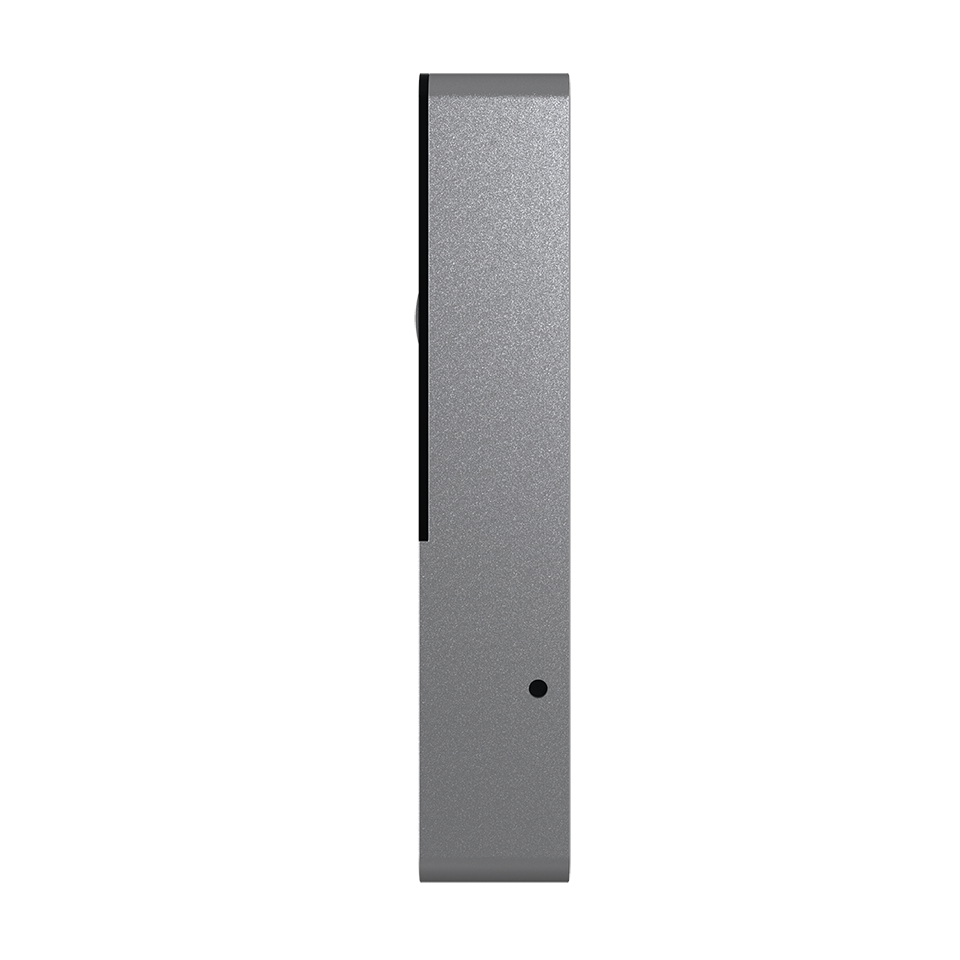

If the video intercom does not support the AHD video recording standard, it is possible to switch the video signal mode from AHD to CVBS using the button on the back of the device. The panel will operate in CVBS mode with a maximum video resolution of 960 TVL. The ML-20HD is compatible with almost any analog video doorphones.


Slinex ML-20HD is an elegant multifunctional device that leaves a lasting impression.


Full description Hide
Horizontal viewing angle


Camera resolution

• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)


45×130×24 mm

Operating temperature

-40 – +50 °С


Unique features
• Camera operation modes switcher (AHD-H, AHD-M, CVBS)
• Wide-angle lens
• Mechanical IR cut filter
• Touch call button
• Separate video camera power wire
Type of sensor
1/4" CMOS
Night backlight
IR LED, up to 1.5 m
Minimal illumination
0,01 Lux
Body structure
Metal alloy
