Description

The best video camera that has ever been used in video intercom

Slinex ML-20HD – incredible 2 MP with a viewing angle of 115° will give you the most detailed and wide image. In combination with the design of the ML-20 line, the panel turns into a real art.



First acquaintance

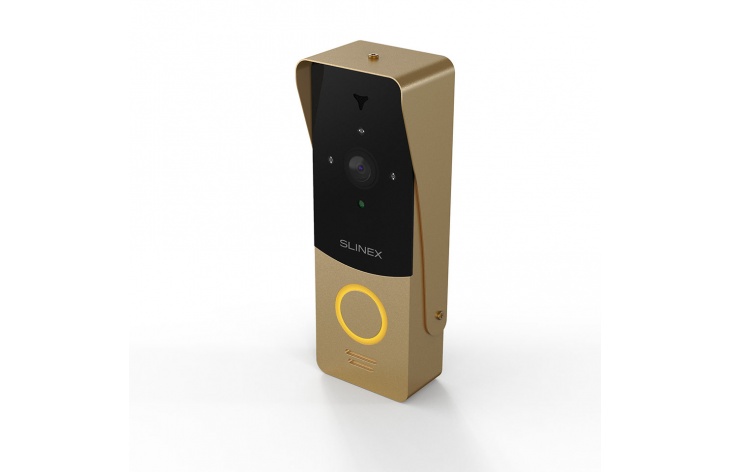

The Slinex ML-20HD individual outdoor panel is the most stylish device. A metal alloy case with a polycarbonate overlay in 2 color combinations and an LED backlit call button will decorate the entrance group of an apartment, house or office.



The ML-20HD is a unique panel with a constant video signal function, a large viewing angle and a high resolution camera.



Where it can be used

Slinex ML-20HD is an outdoor panel for 1 subscriber, which is suitable for:

• businesses that most often work by appointment: dentists, beauty salons, notary offices, etc.;

• night shops and pharmacies;

• small offices;

• in the common corridor or at the door to the apartment;

• private houses, etc.



The design of the ML-20HD panel will allow you to easily fit into the interior or exterior of any room. Such a device will work perfectly both in conjunction with a video intercom, and as part of an entire video surveillance system due to its peculiarity - the possibility of constant video recording.



Appearance and camera

A 2-megapixel AHD camera with a viewing angle of 115° will allow you to take Full HD pictures and videos on which you can see the smallest details. IR illumination with a mechanical filter will allow you to see the caller at the door even at night. Signal format: AHD 1080p (2 MP), AHD 720p (1 MP) or CVBS (PAL).



Speaking about the ML-20HD panel housing, its IP65 protection class means that the panel is not afraid of snow, rain and dust. In addition, there is no need to be afraid for the operation of the device in heat or cold, as the panel works perfectly in the temperature range from -40°С to +50°С.



Features

If the video intercom does not support the AHD video recording standard, it is possible to switch the video signal mode from AHD to CVBS using the button on the back of the device. The panel will work in CVBS mode with a maximum video resolution of 960 TVL. ML-20HD is compatible with almost any analog video doorphones.



Slinex ML-20HD is an elegant multifunctional device that will impress at first glance.




Full description Hide
Horizontal viewing angle

150°

Camera resolution

• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)

Dimensions

45×130×24 mm

Operating temperature

-40 – +50 °С

Characteristics

Unique features
• Camera operation modes switcher (AHD-H, AHD-M, CVBS)
• Wide-angle lens
• Mechanical IR cut filter
• Touch call button
• Separate video camera power wire to use it as a source of video for DVR or motion detection recording
Type of sensor
1/4" CMOS
Night backlight
IR LED, up to 1.5 m
Minimal illumination
0,01 Lux
Body structure
Metal alloy
