Description

Acquaintance

The ML-20TLHD outdoor panel is a brand new solution in the intercom production industry. Followed by the latest trends of limitation spreading different diseases we designed outdoor panel that doesn’t need touching call button to initiate a call. Simply place your hand in front of the panel and incoming call starts automatically.



Where it can be used

Slinex ML-20TLHD is an individual call panel (for 1 subscriber), which is suitable both for places and institutions with a large number of guests, and for private use:

• businesses that most often work by appointment: dentists, beauty salons, notary offices, etc.;

• night shops and pharmacies;

• small offices;

• in the common corridor or at the door to the apartment;

• private houses, etc.



The panel features

With Slinex ML-20TLHD, to make a call, it is enough to hold your hand near the button at a distance of up to 10 cm. This excludes the transmission of various kinds of infections by contact.



Appearance and camera

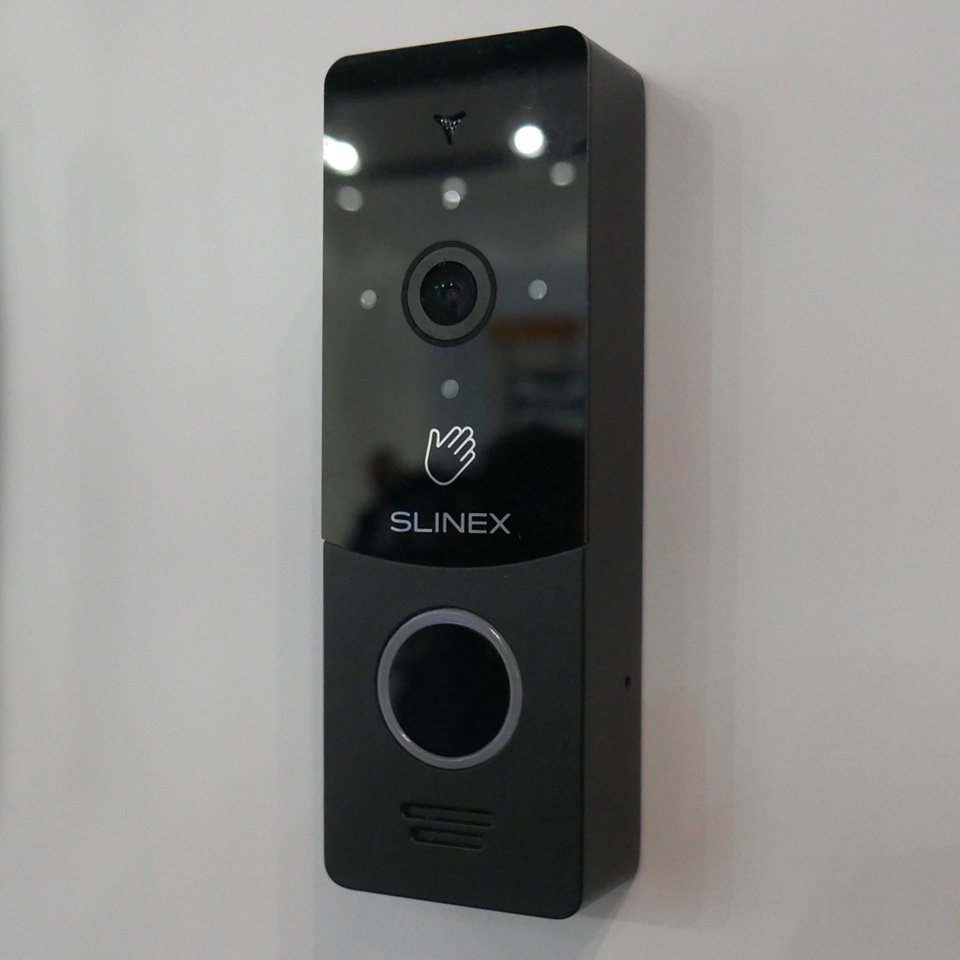

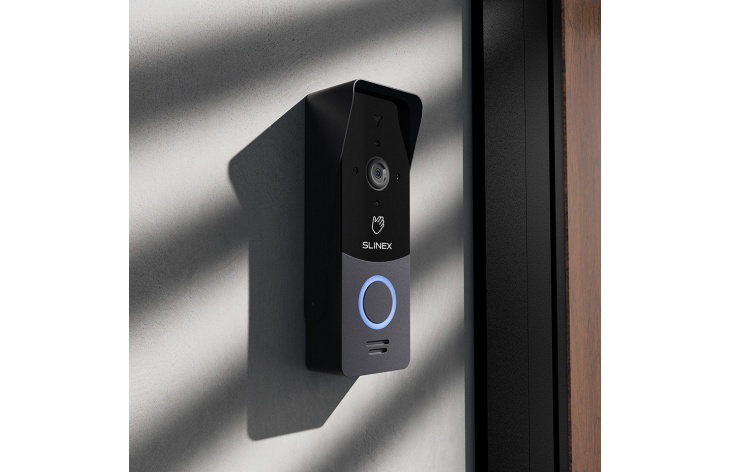

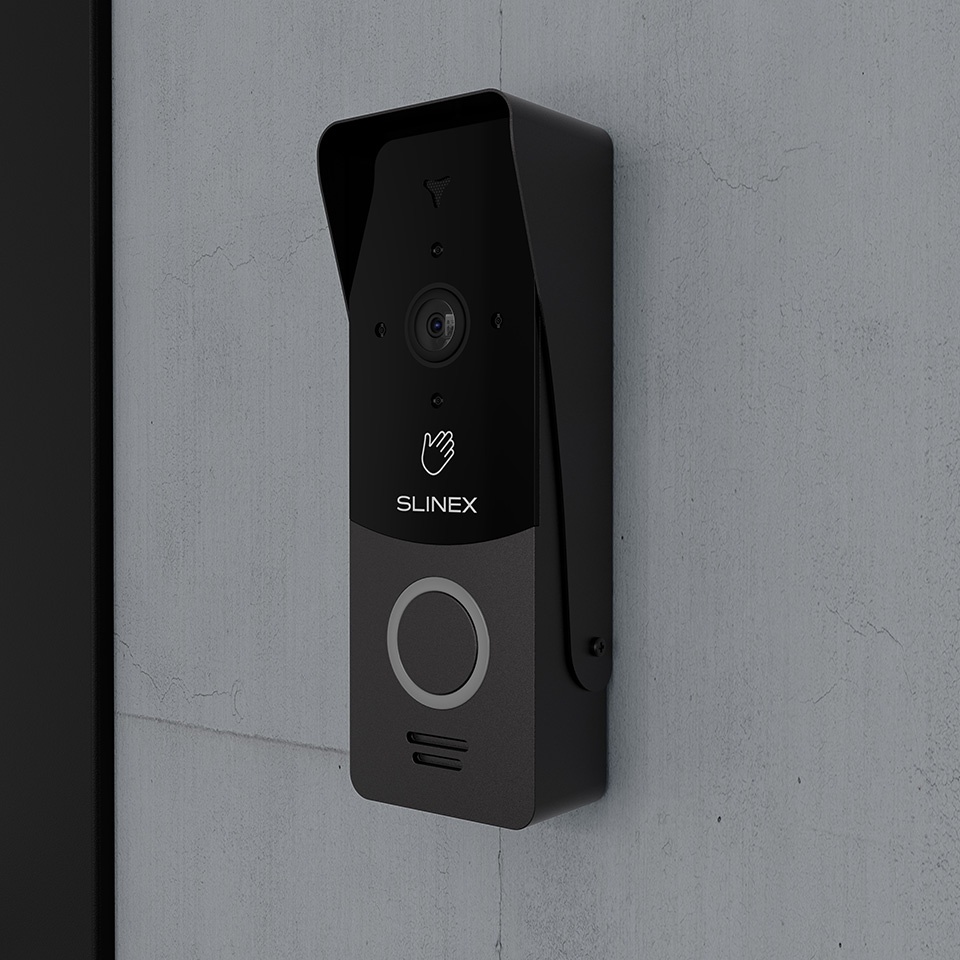

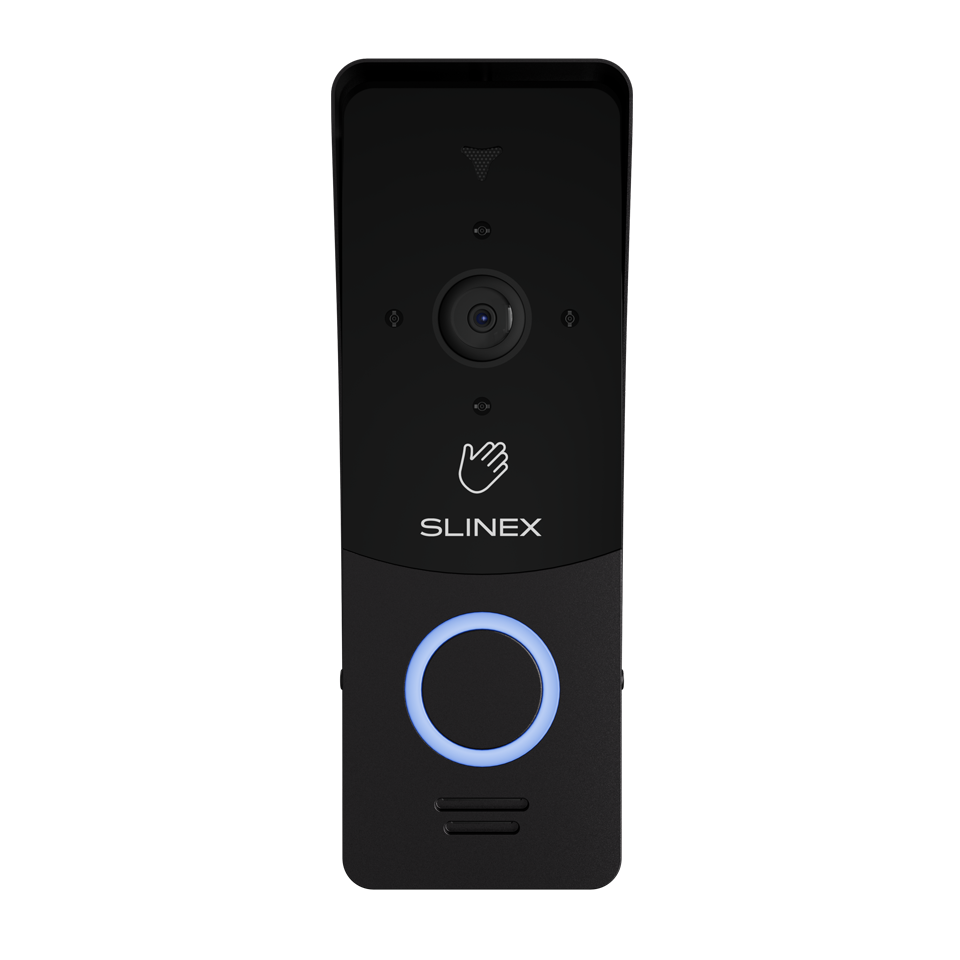

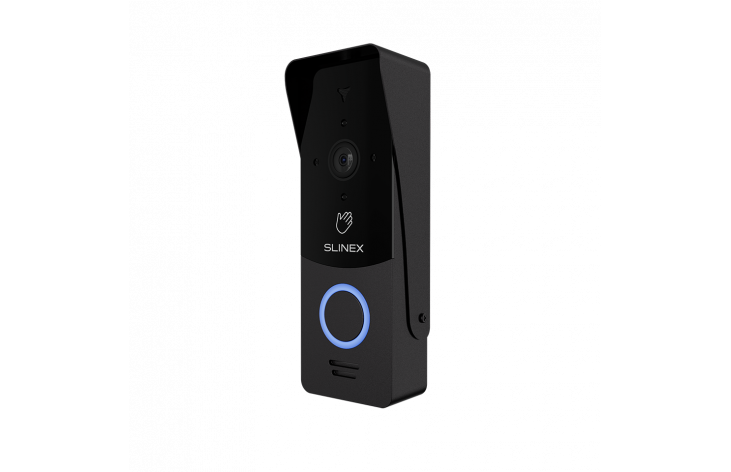

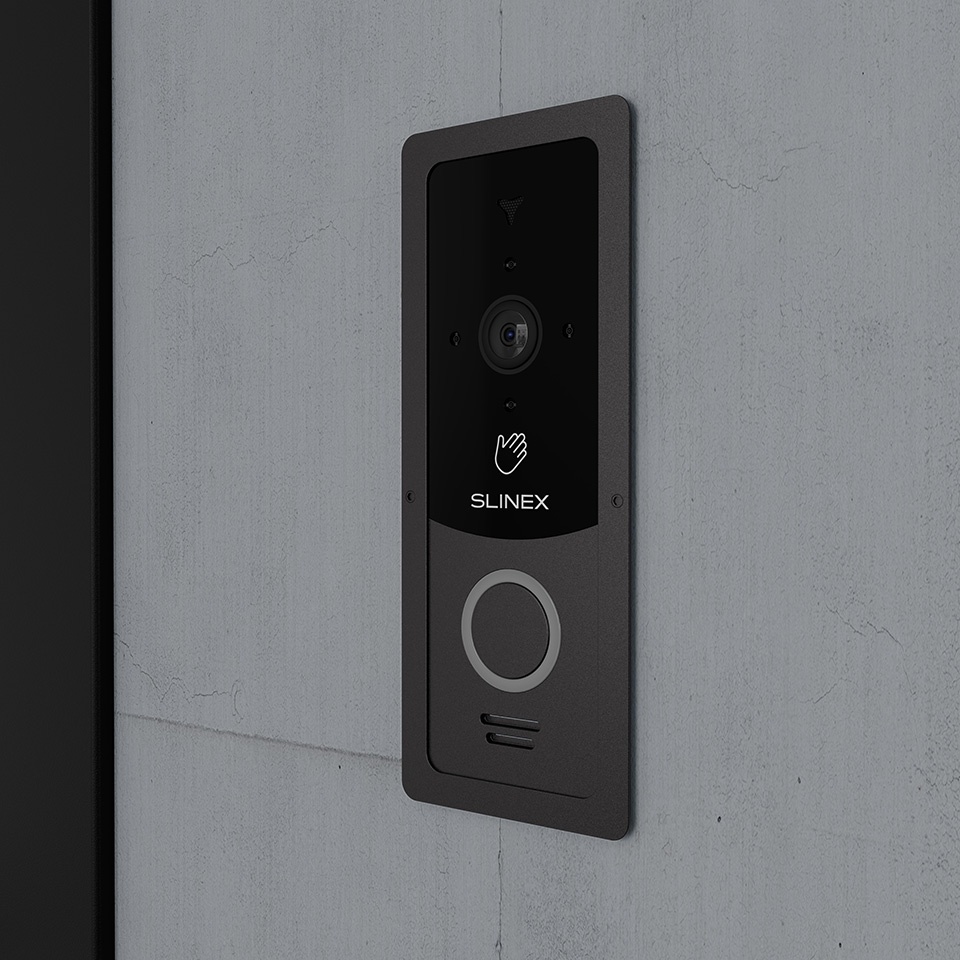

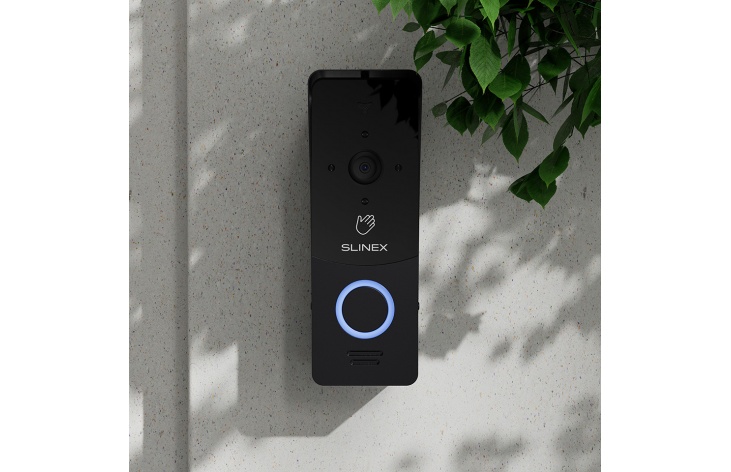

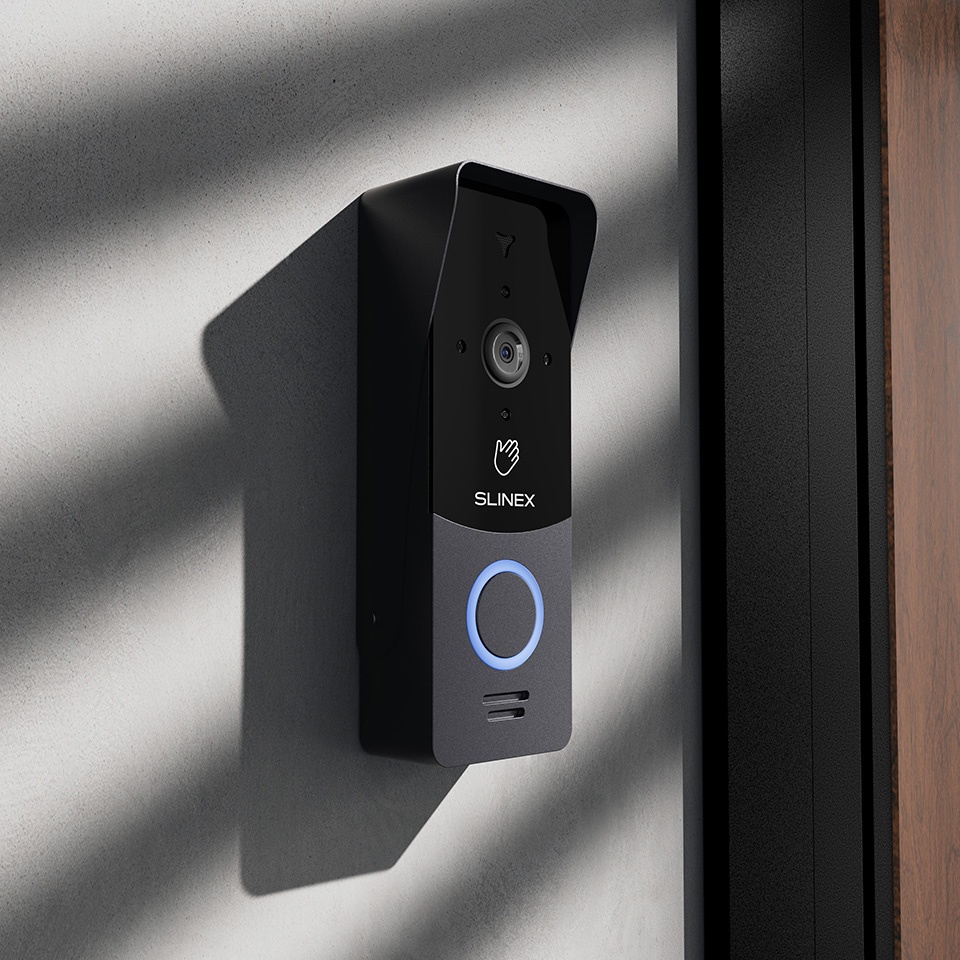

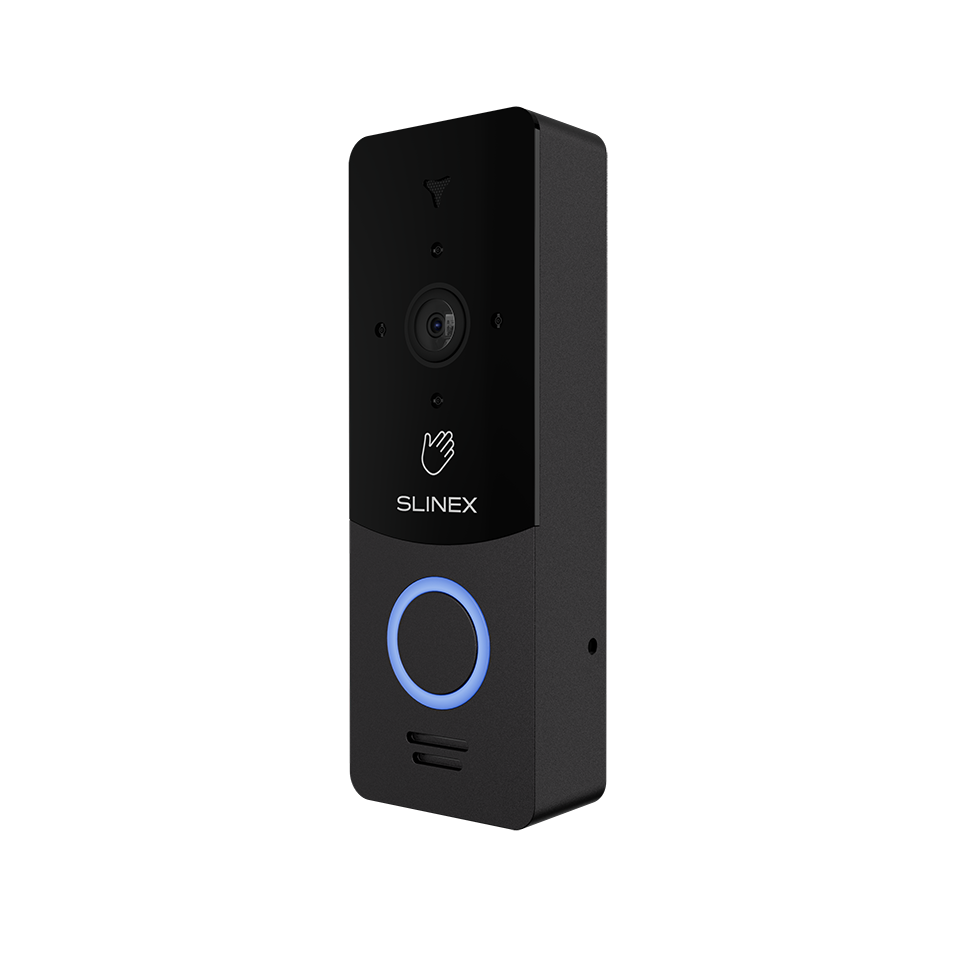

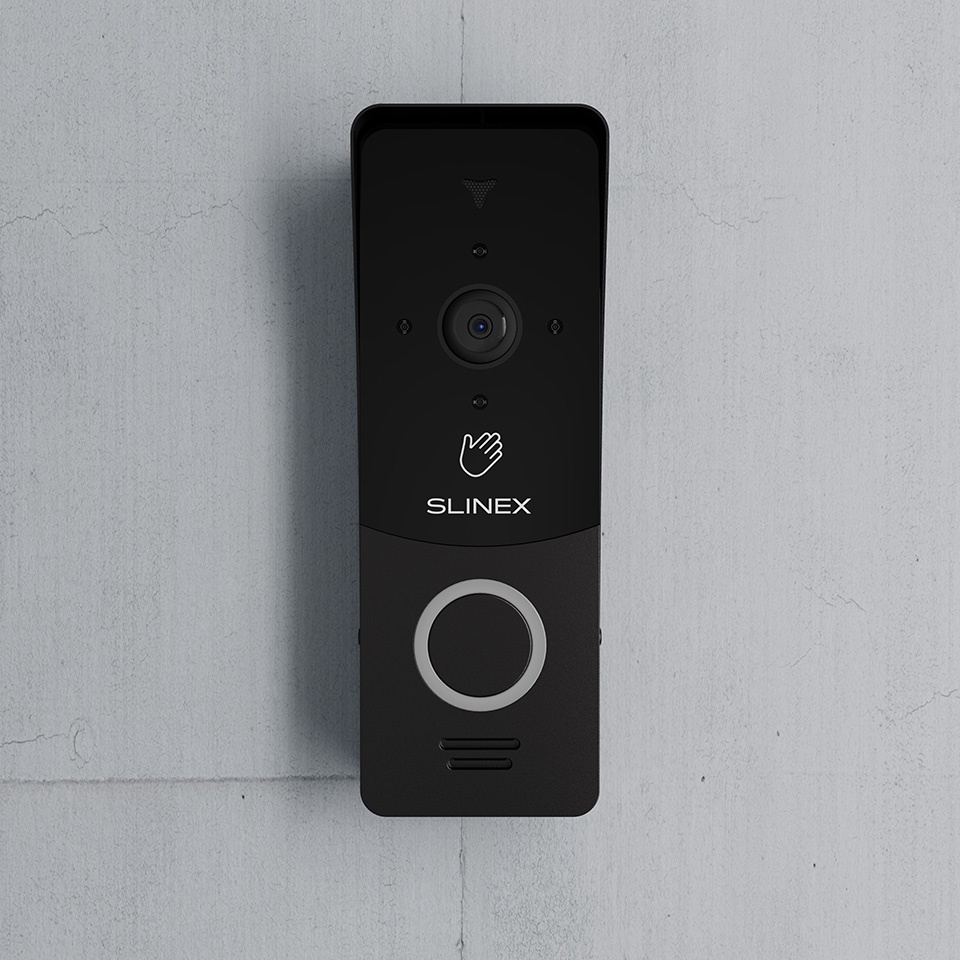

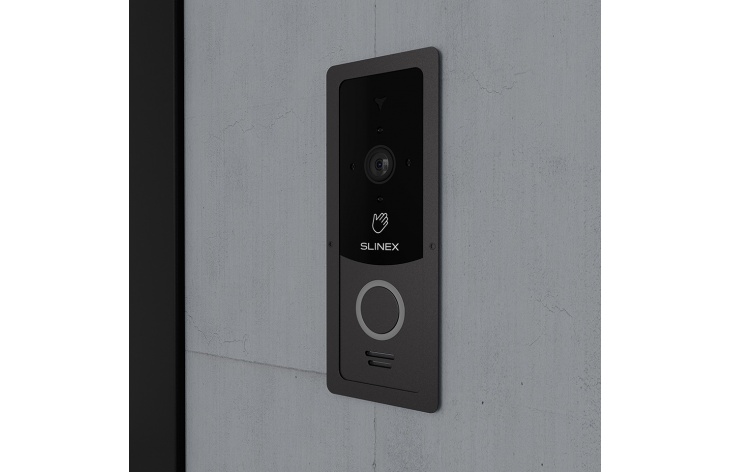

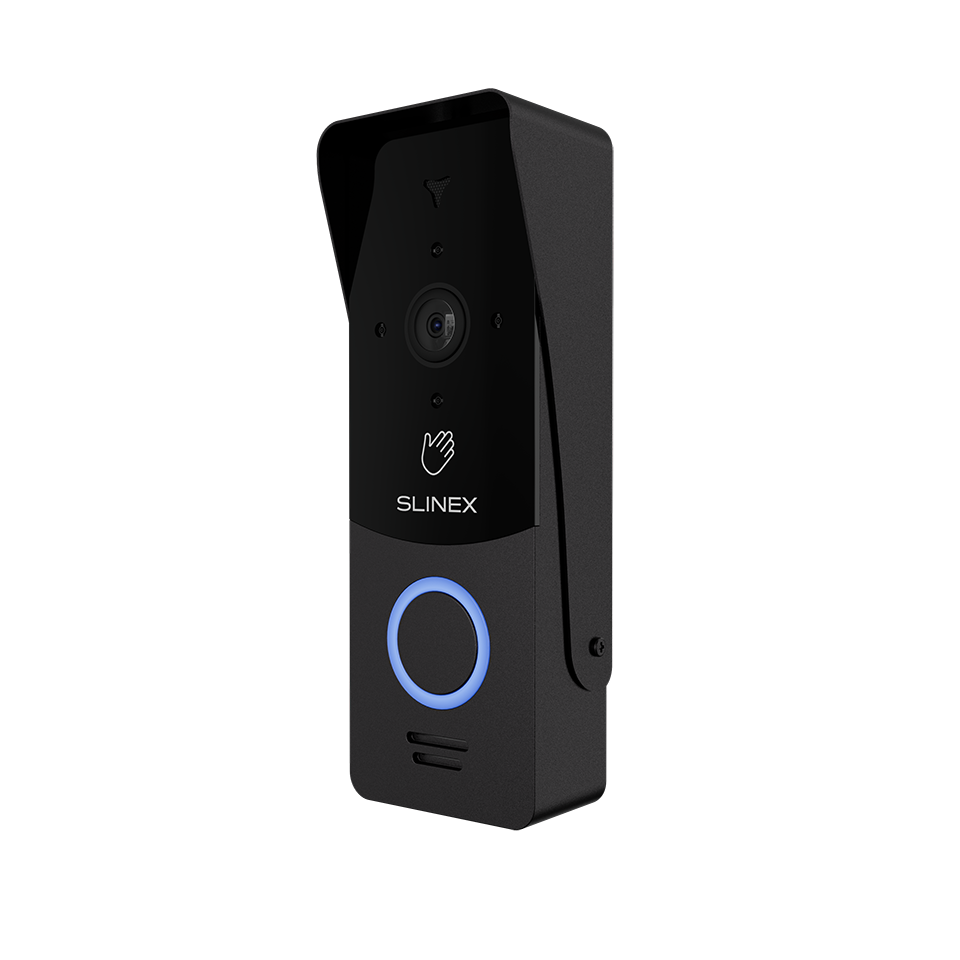

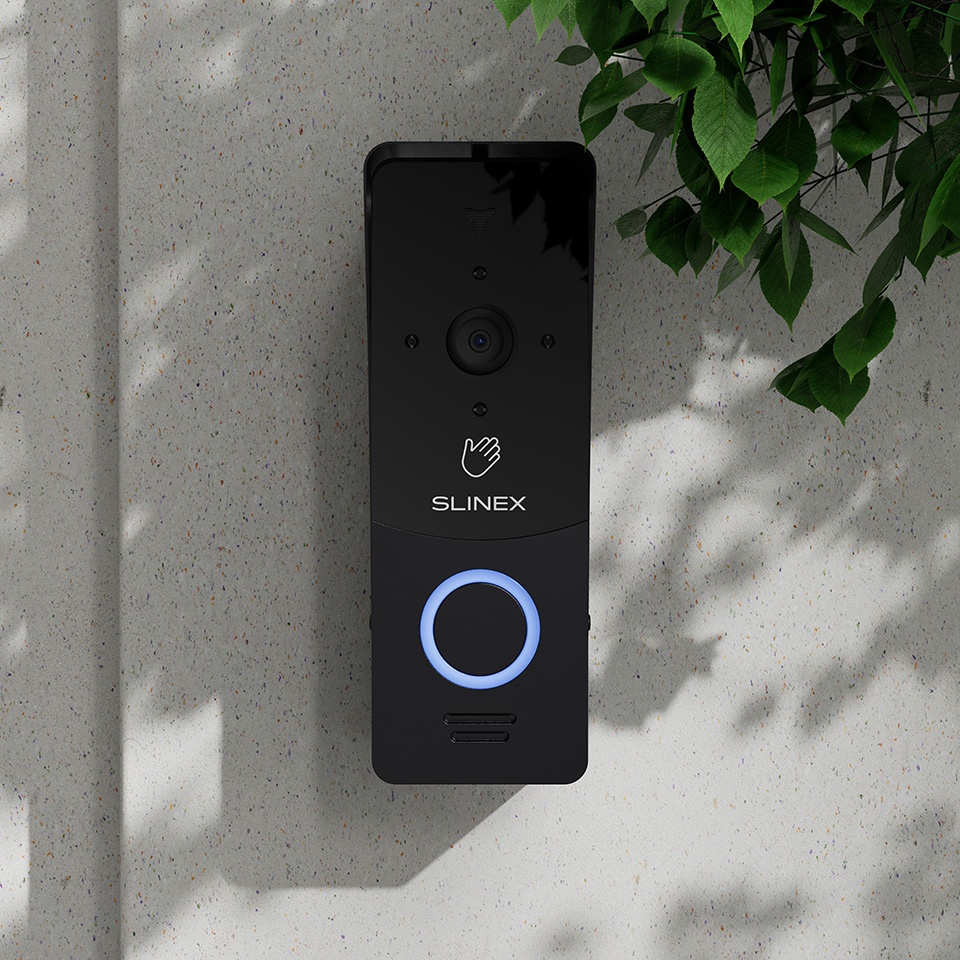

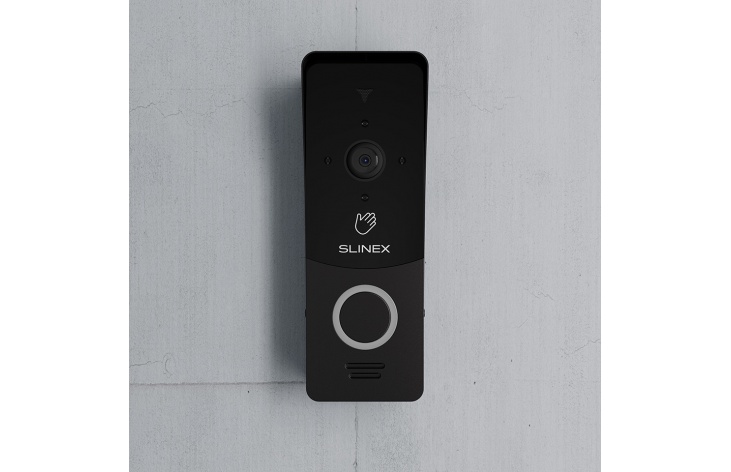

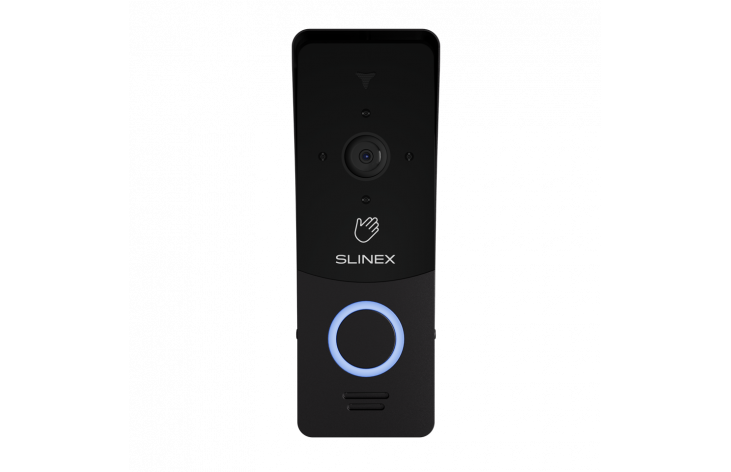

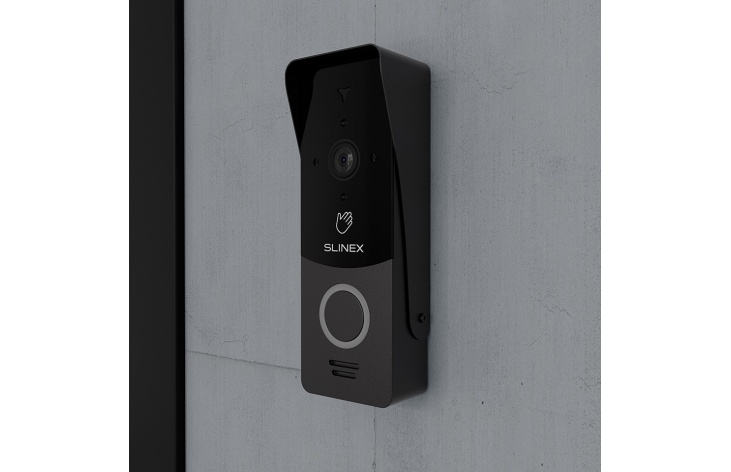

The new Slinex ML-20TLHD has a premium design of the ML-20HD call panel with only one difference – a new All-black coloring. The black metal case with a pleasant-looking acrylic overlay and blue LED backlight of the contactless call button will make you look at the familiar design in a new way!



As the camera supporting AHD and has a mechanical IR-cut filter, the user gets an image with an improved color rendition and deep image detail. Thanks to camera mode switch button (AHD-H, AHD-M, CVBS), ML-20TLHD can be connected to a large list of analog intercoms.

Full description Hide
Horizontal viewing angle

115°

Camera resolution

• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)

Dimensions

45×130×24 mm

Operating temperature

-40 – +50 °С

Characteristics

Unique features
• Touchless call system
• Camera operation modes switcher (AHD-H, AHD-M, CVBS)
• Wide-angle lens
• Mechanical IR cut filter
• Mechanical locks support, up to 1A
• Separate video camera power wire to use it as a source of video for DVR or motion detection recording
Type of sensor
1/2,9” CMOS
Night backlight
IR LED, up to 1.5 m
Minimal illumination
0,01 Lux

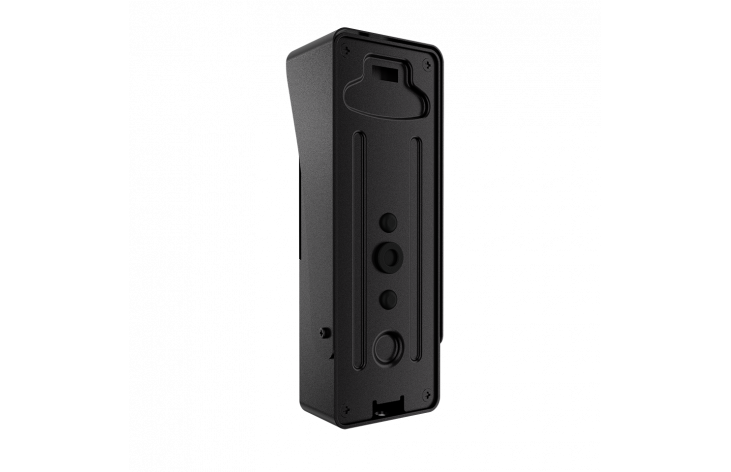

Body structure
Metal alloy + acrylic glass
All characteristics
