Description

First acquaintance

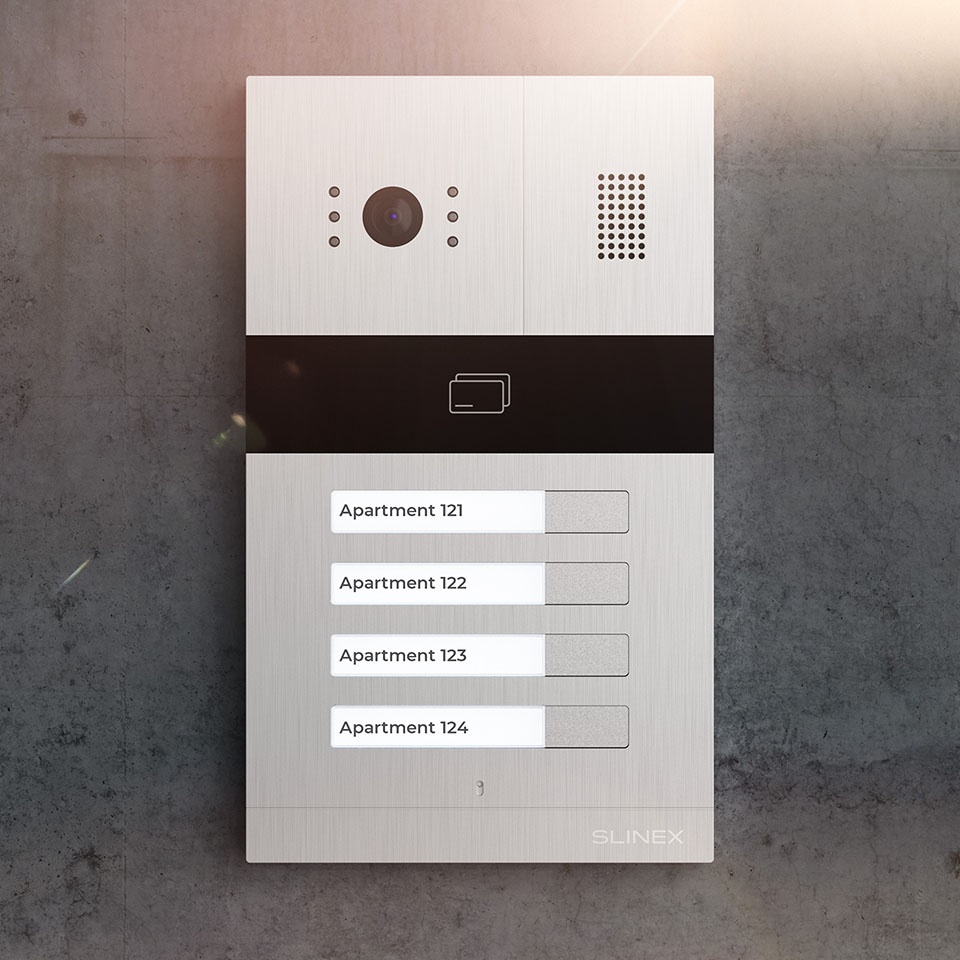

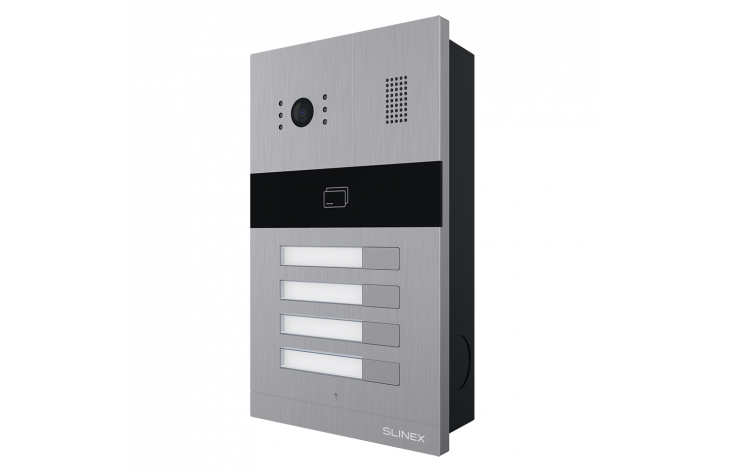

The Slinex MA-04CRHD is an ultramodern 4-apartment outdoor panel with an elegant design. This panel has numerous advantages, including a 2MP color camera, a built-in combined reader of contactless cards from EM-Marin and Mifare, a mechanical IR filter on 6 LEDs, and backlit nameplates. In terms of functionality and external parameters, this panel has no rivals in the modern market. It far surpasses the quality of outdoor panels from other manufacturers.



Where it can be used

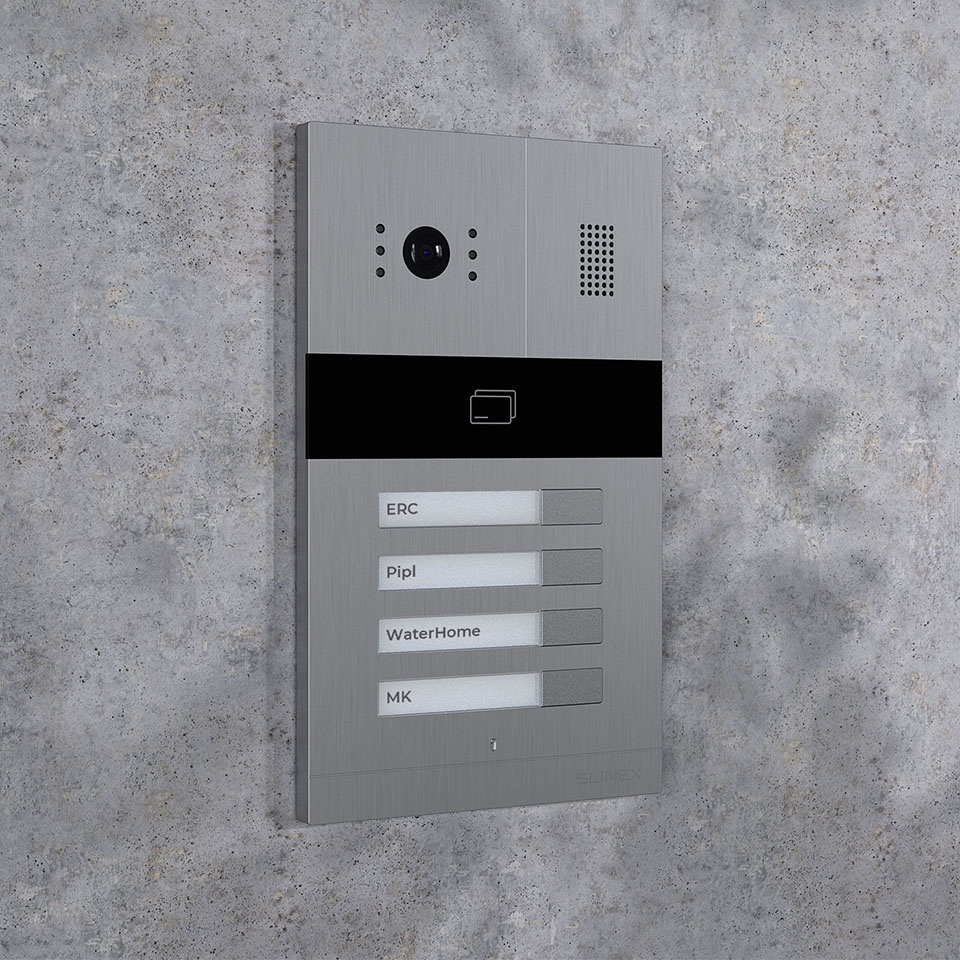

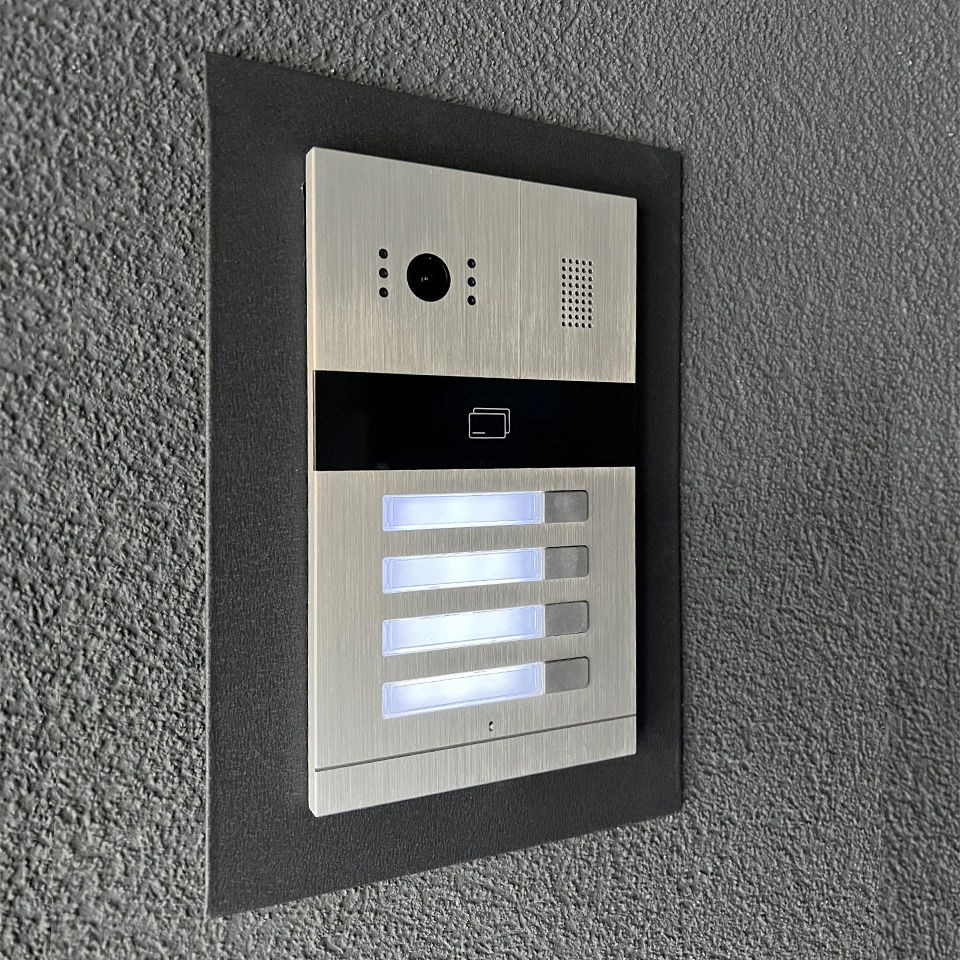

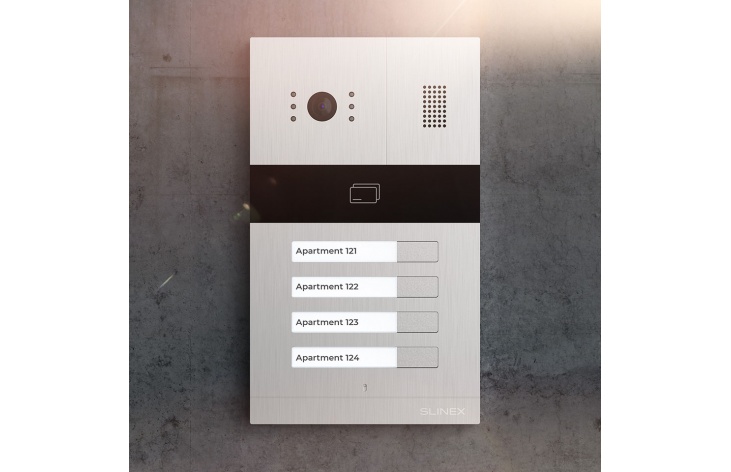

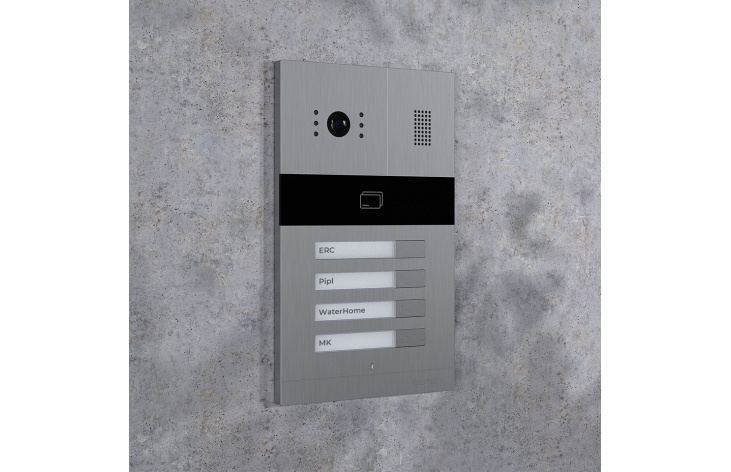

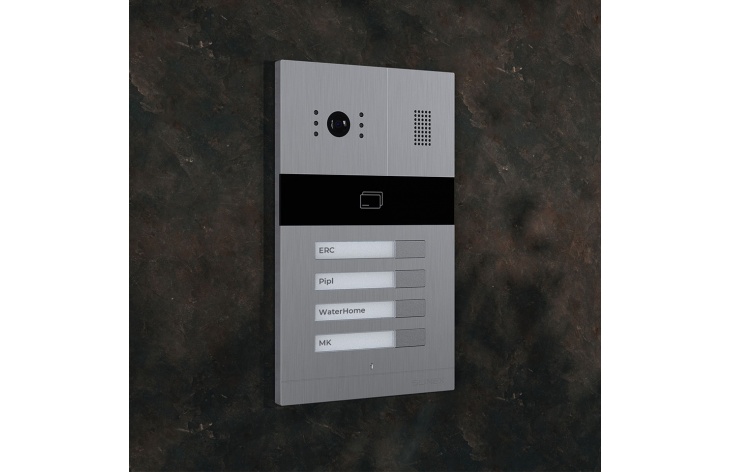

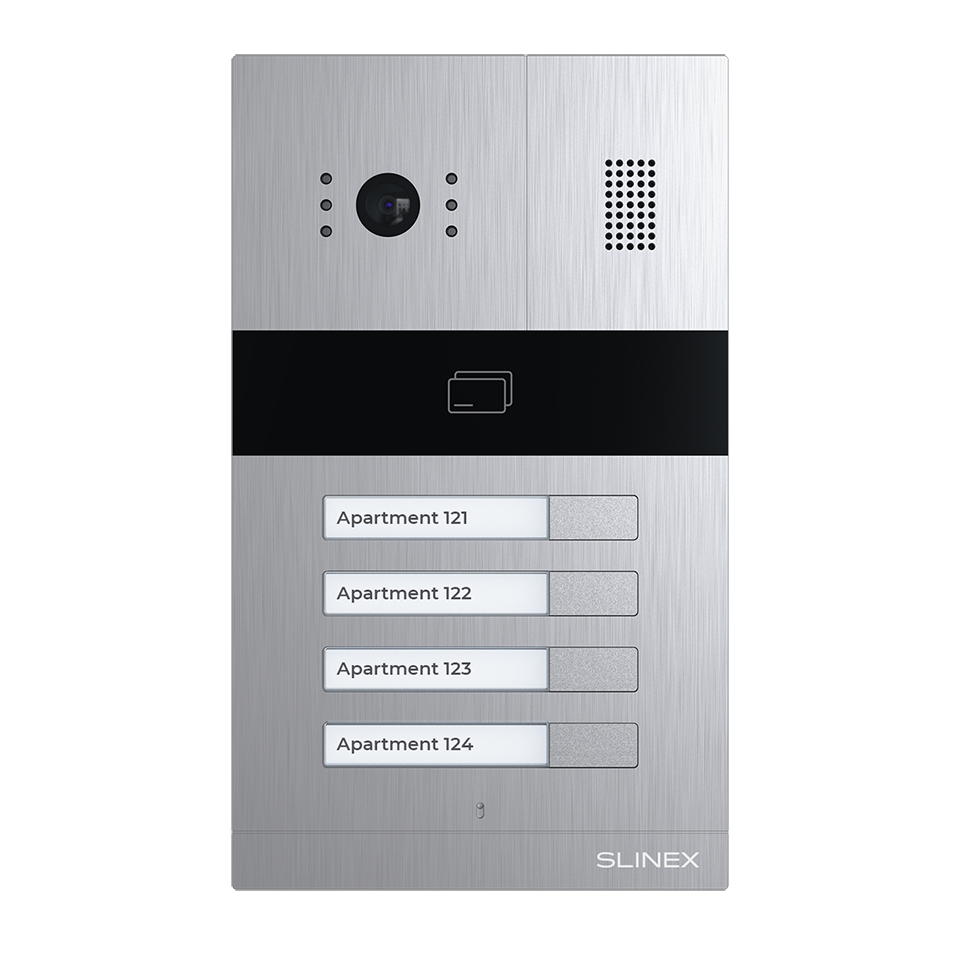

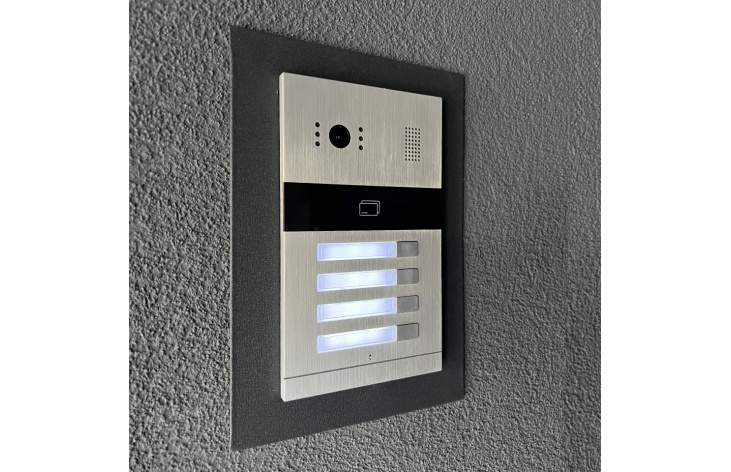

The device is an excellent choice for installation in an office or building with a limited number of apartments. This model is a universal solution for installation on the floor of an office center that houses several offices. On special nameplates on the panel body, it's possible to specify the apartment or office number, the names of apartments, or the name of the company. Thanks to backlit nameplates, all information will be clearly visible, even in the dark. The outdoor panel can be flush-mounted both outside and inside.

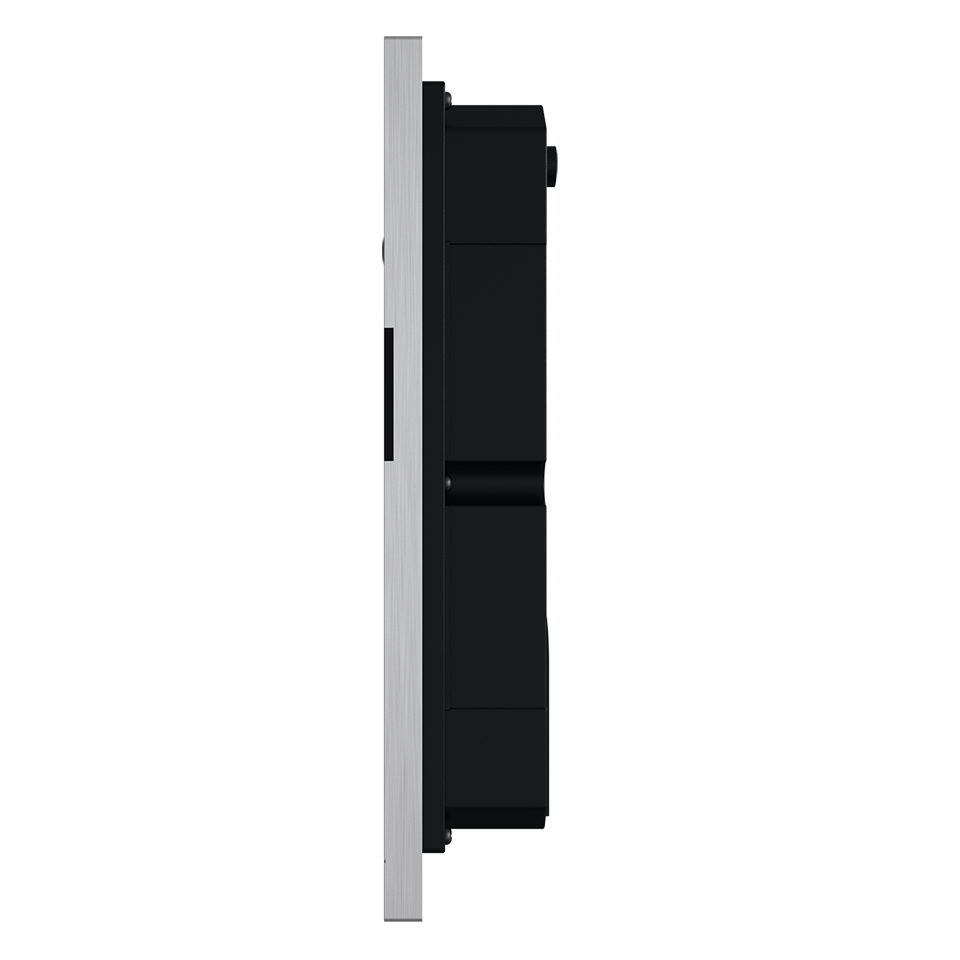

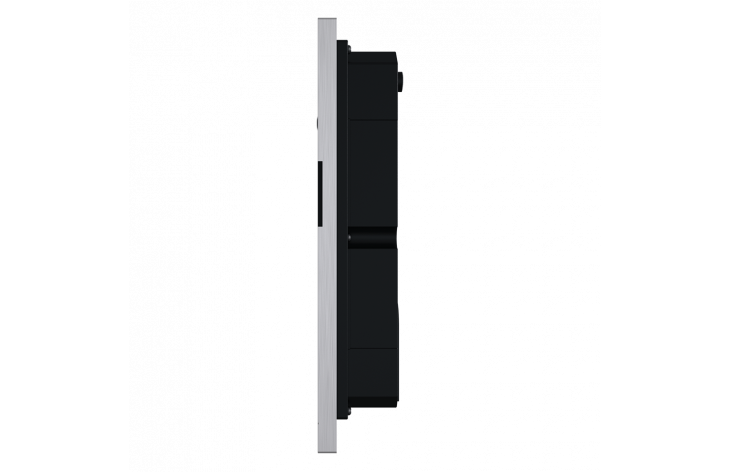

The panel dimensions are 110×185×34 mm, and the device works reliably in a wide range of temperatures, from -40° to +65°C.



Specifications of the model
The key feature of the MA-04CRHD is the combined reader of contactless cards from EM-Marin and Mifare, which provides controlled and safe access to the premises. The internal memory can hold up to 248 cards.



The model boasts a mechanical IR filter, which enhances visibility in the dark and enables the camera to capture better images. This makes it much easier to identify visitors not only during the day but also in the evening.



Appearance and camera

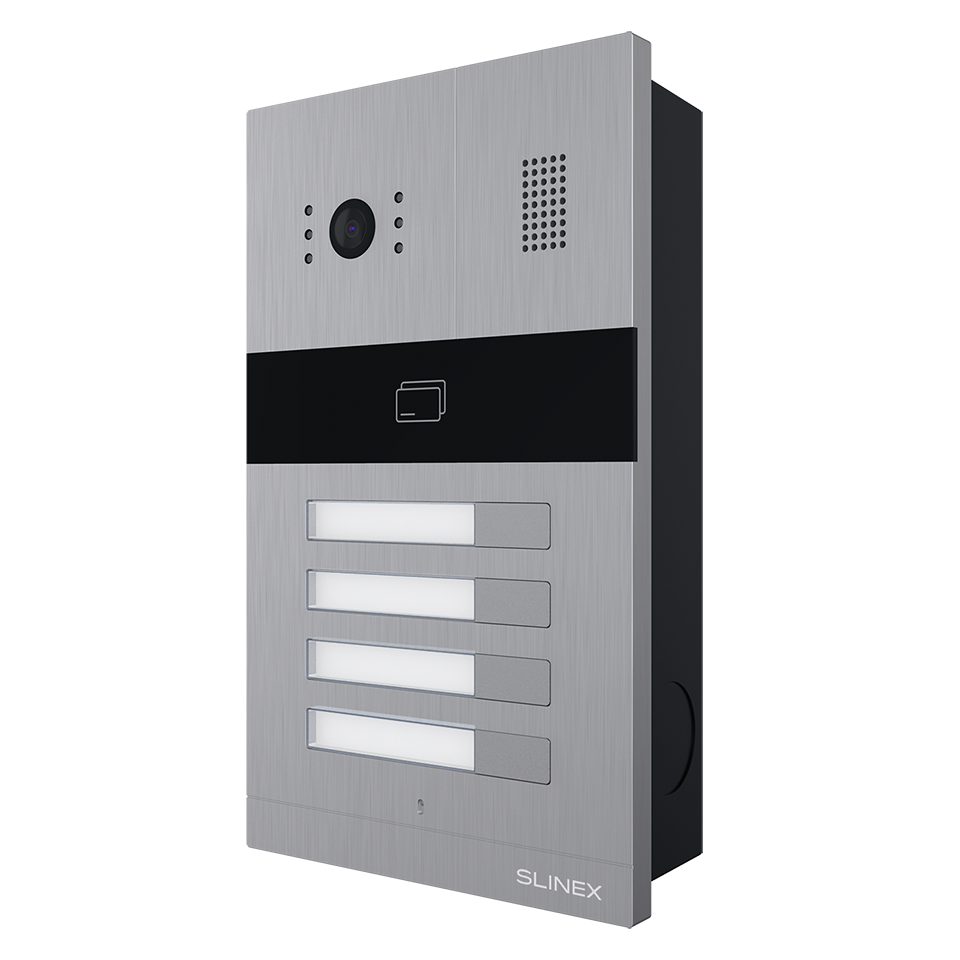

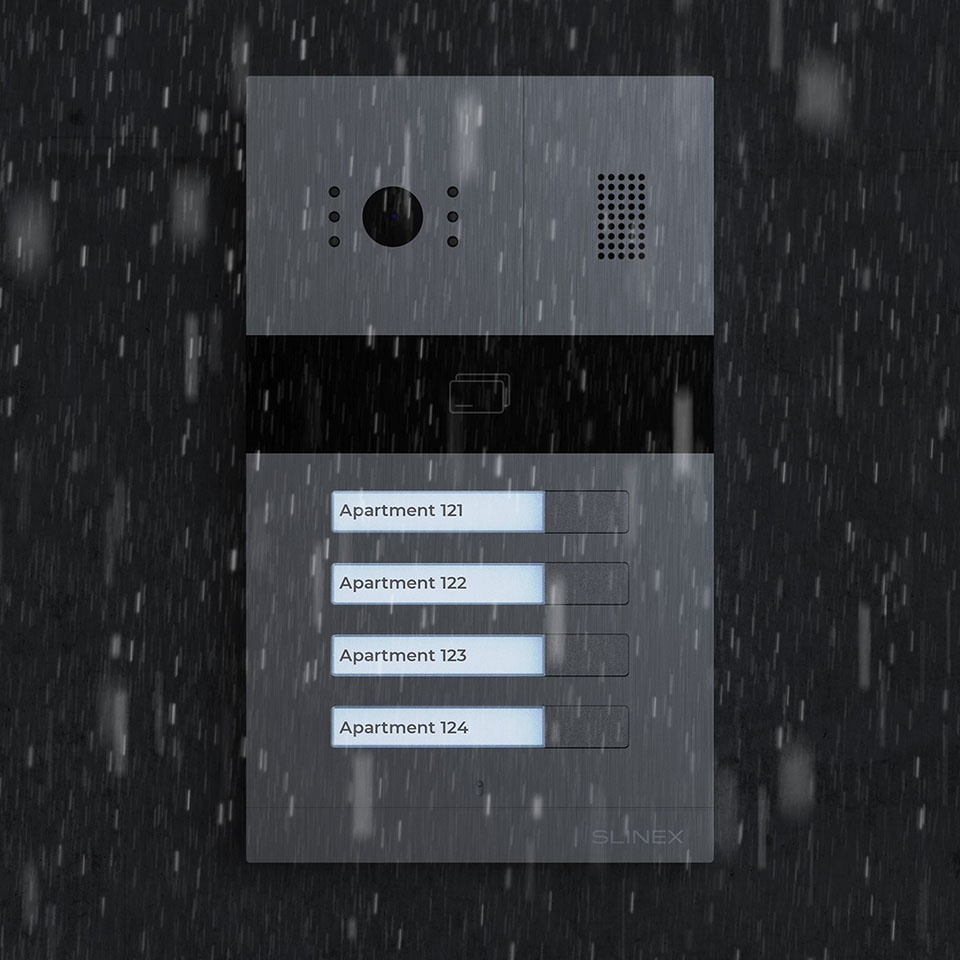

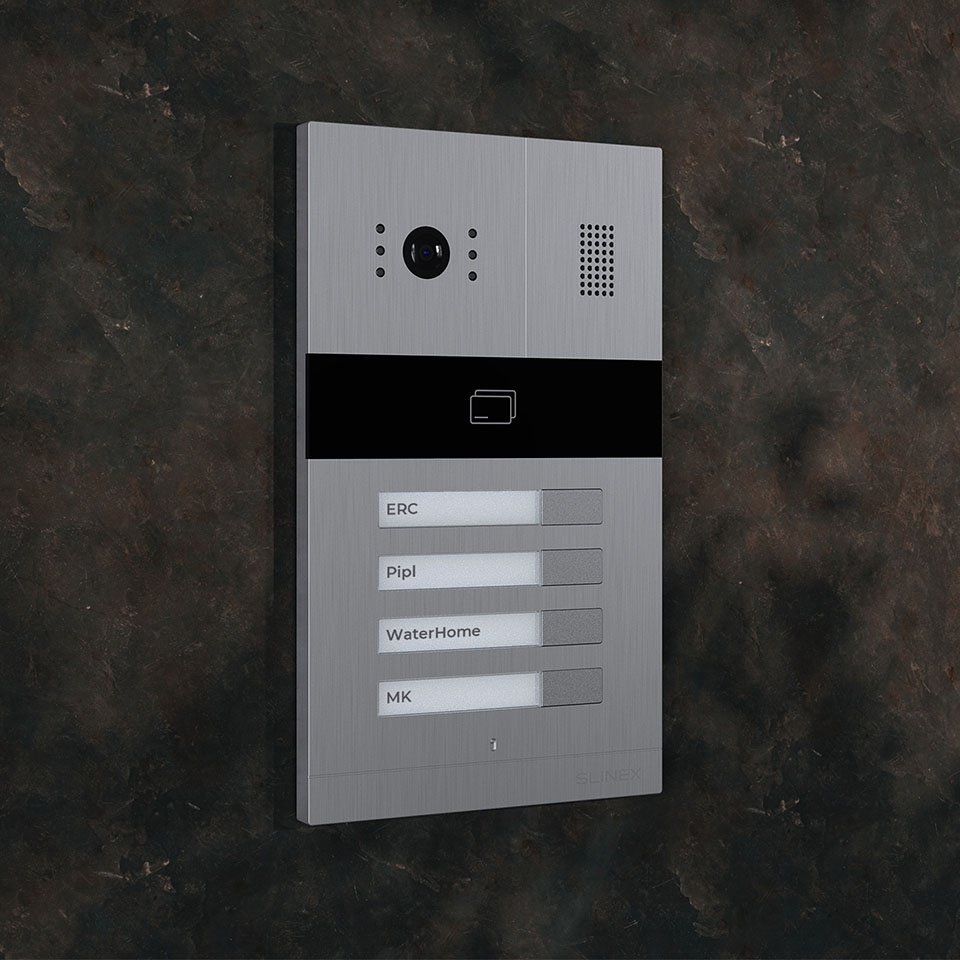

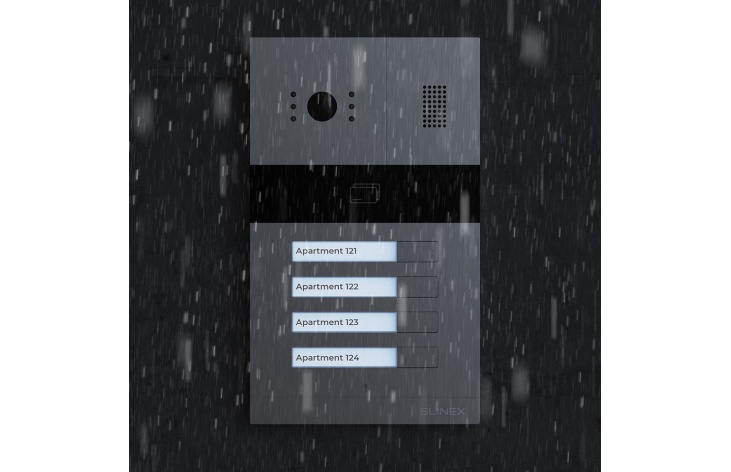

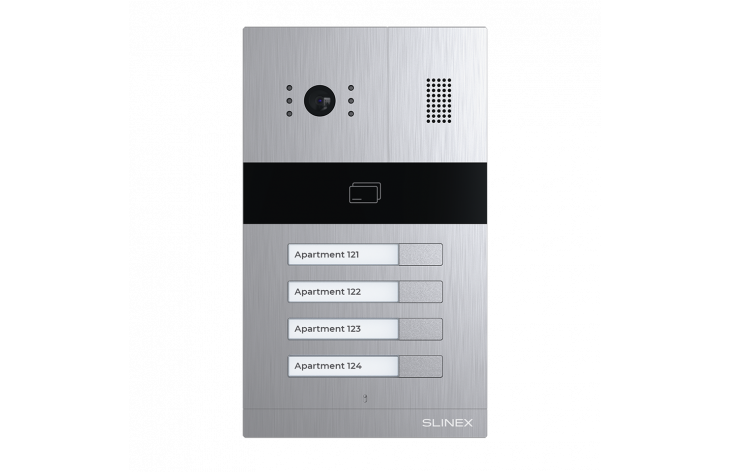

The MA-04CRHD's body is made of brushed aluminum and has a special acrylic insert for the reader. The IP65 protection class of the device indicates its stability to dust and moisture. The outdoor panel comes in one color, silver, which is universally suitable for all types of buildings.



The panel is equipped with a Full HD camera with a 115° viewing angle. The camera delivers high-quality images and videos and displays them on the internal monitor.



Interoperability with additional devices

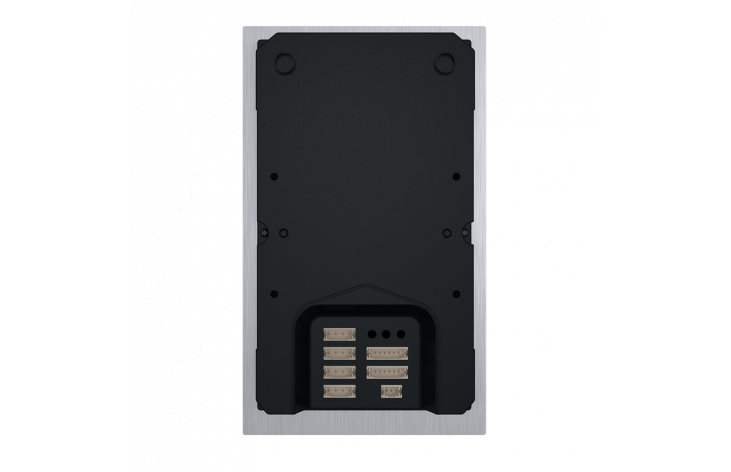

The MA-04CRHD is interoperable with any 4-wire intercoms. To increase the number of apartments in the system, you can connect an additional MA-08 extension module for 8 apartments.

The Slinex MA-04CRHD is a modern outdoor panel with a stylish design and high functionality. This panel is straightforward and convenient to use.



Full description Hide
Horizontal viewing angle

115º

Camera resolution

• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)

Dimensions

110×185×34 mm

Operating temperature

-40 – +65 °С

Characteristics

Device type
Outdoor panel for 4 subscribers
Unique features
• Combined EM-Marin / MIFARE reader
• Camera operation modes switcher (AHD-H, AHD-M, CVBS)
• Mechanical IR cut filter
• Wide-angle lens
• Nameplates backlight
• Support up to 2 MA-08 extensions (20 subscribers)
Type of sensor
1/2.9" CMOS
Cards type
EM-Marin, MIFARE
Memory capacity
248 user cards
