First acquaintance

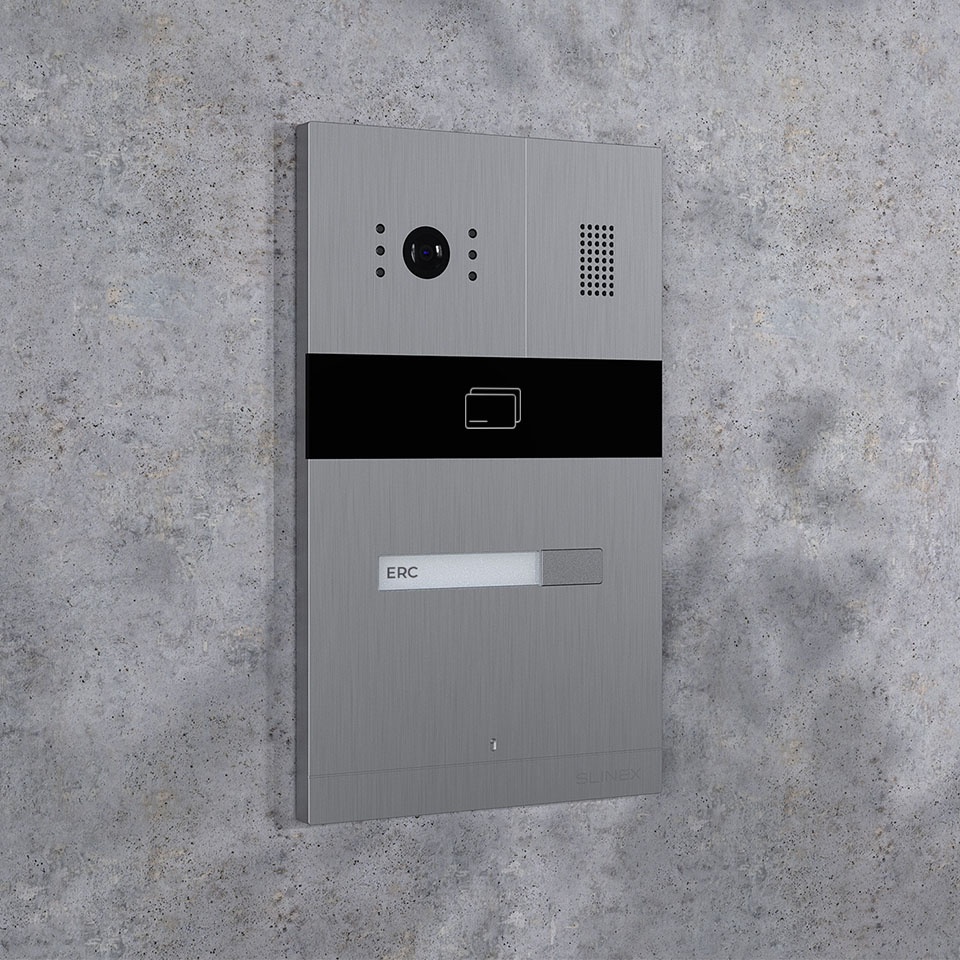

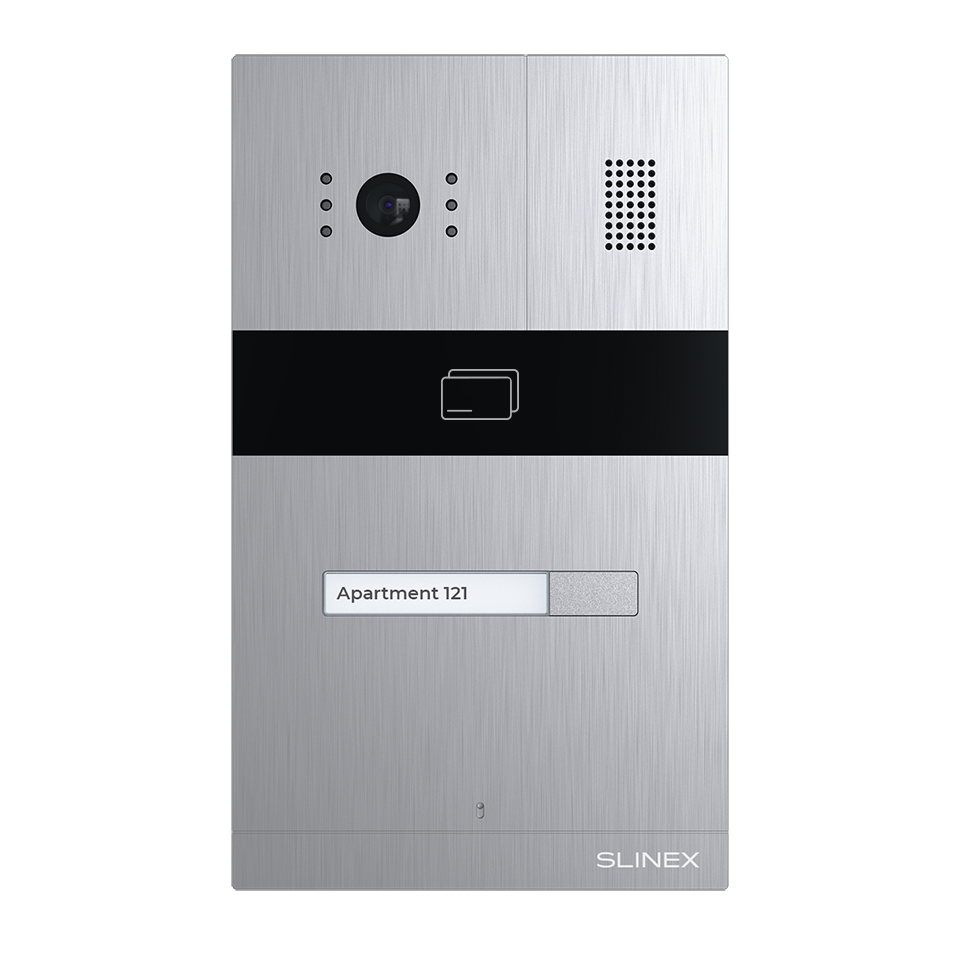

The Slinex MA-01CRHD is an individual outdoor panel with an ultramodern design that boasts of many advantages, including a 2MP color camera, a built-in combined reader of contactless cards from EM-Marin, Mifare, mechanical IR filter on 6 LEDs, and a backlit nameplate. In terms of functionality and external parameters, this panel has no match in the modern market, far surpassing the quality of outdoor panels offered by other manufacturers.


Where it can be used

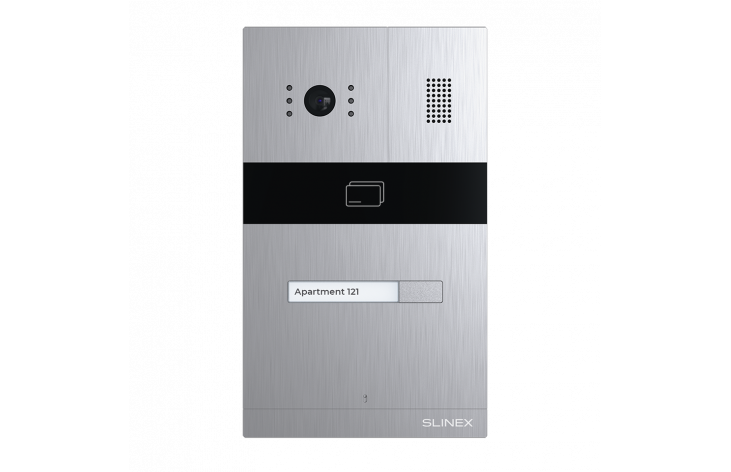

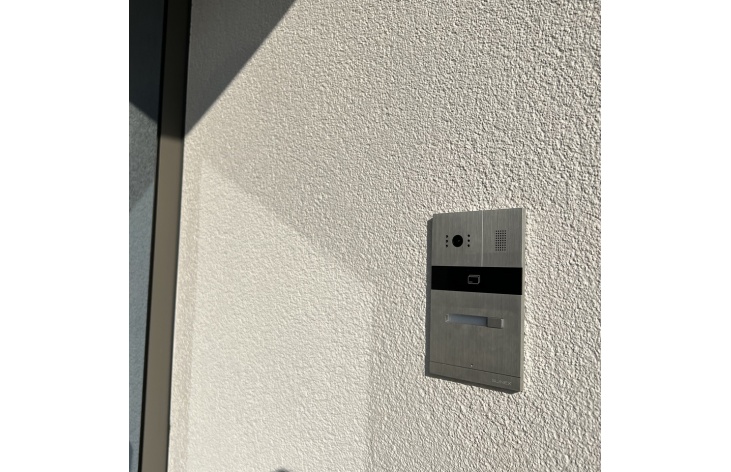

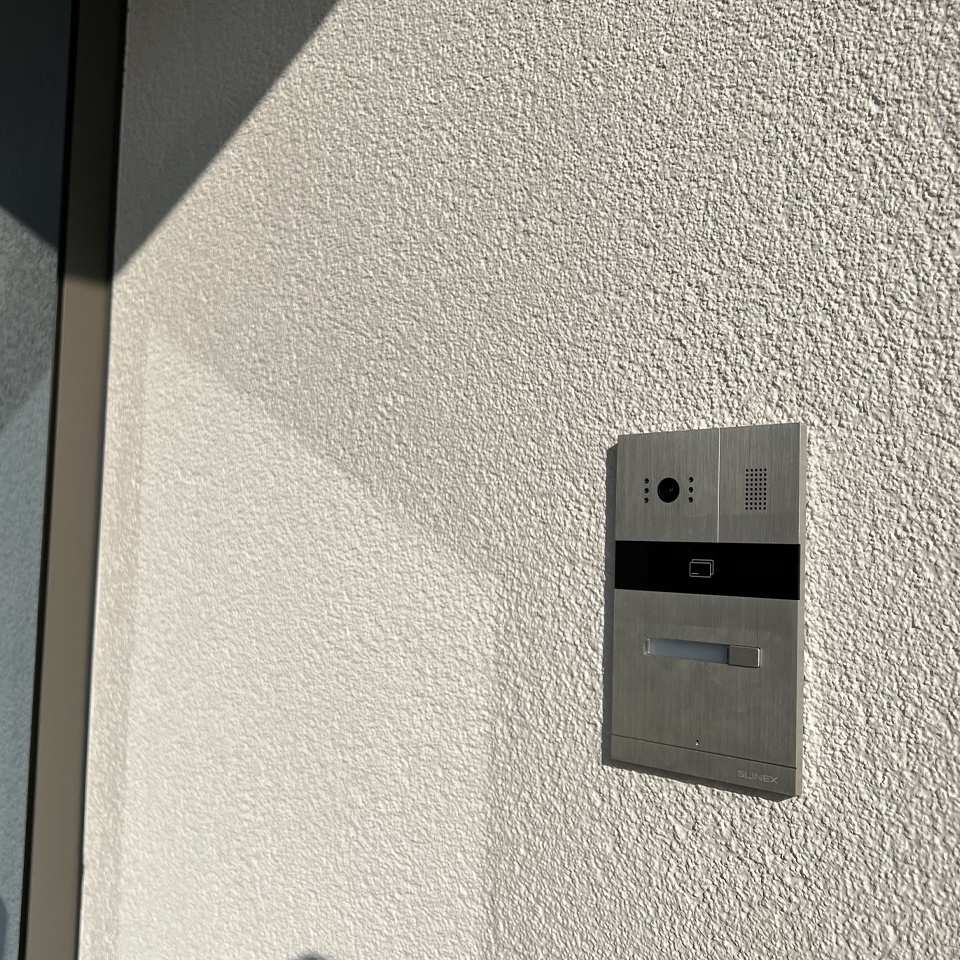

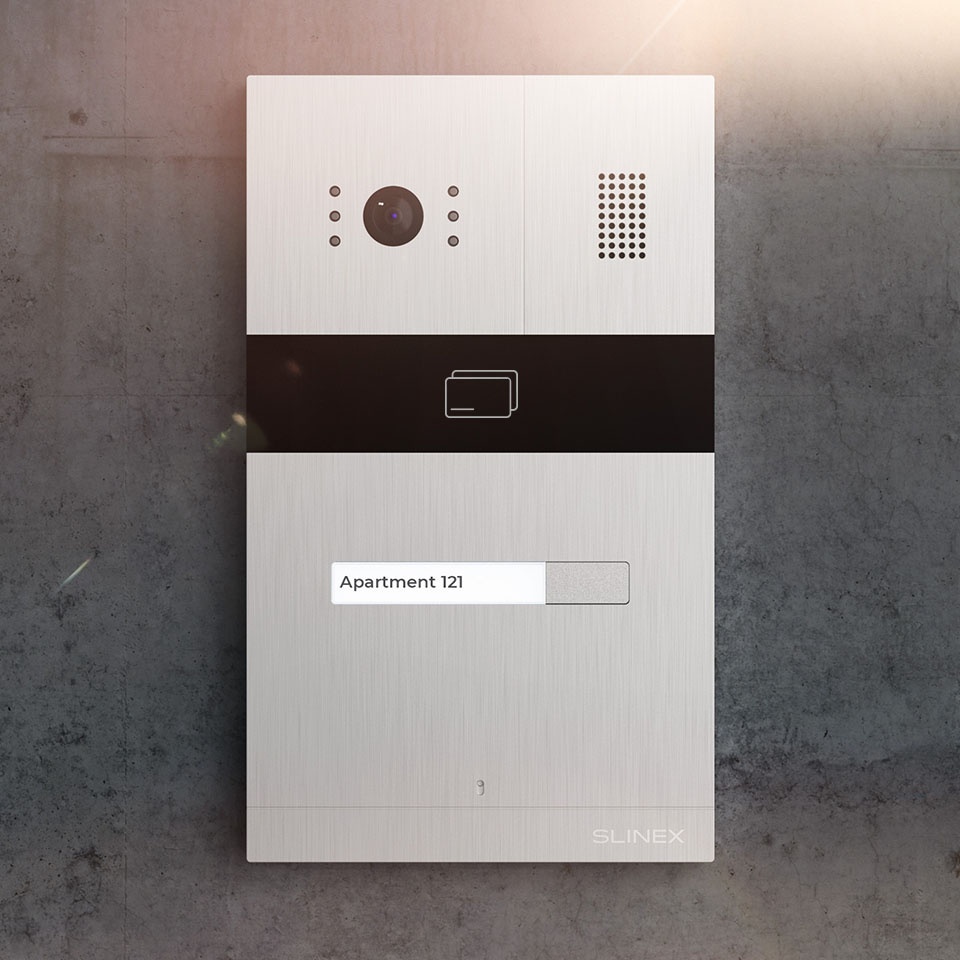

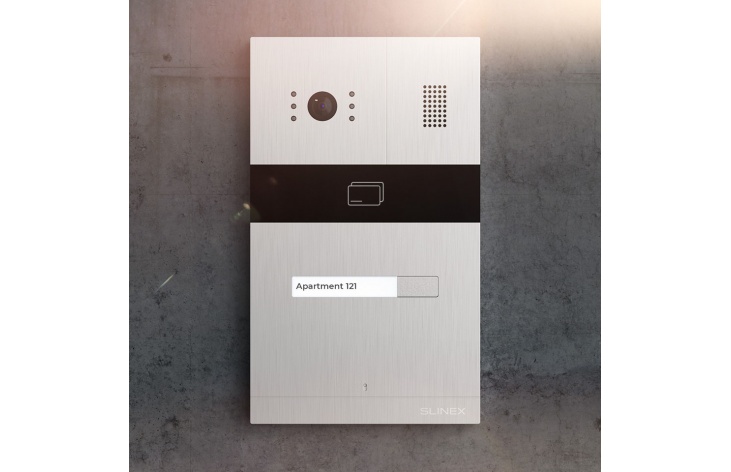

The MA-01CRHD is an ideal device for installation in offices or buildings with a small number of apartments. This model can also serve as a universal solution for installation on the floor of an office center that houses several offices. A special nameplate on the panel body can be used to specify the number of an apartment, office, names of apartments or the name of the company. Thanks to the backlit nameplate, all information will be clearly visible, even in the dark. The outdoor panel can be flush mounted both outside and inside. With panel dimensions of 110×185×34 mm, the device works stably in a wide range of temperatures, from -40° to + 65°C.


Specifications of the model
The key feature of the MA-01CRHD is the availability of a combined reader of contactless cards from EM-Marin, Mifare for controlled and safe access to premises. The internal memory can store up to 248 cards. Additionally, the model boasts the presence of a mechanical IR filter, which provides better visibility in the dark, allowing for better picture quality, making identification of the visitor much easier, not only during the day but also at night.


Appearance and camera

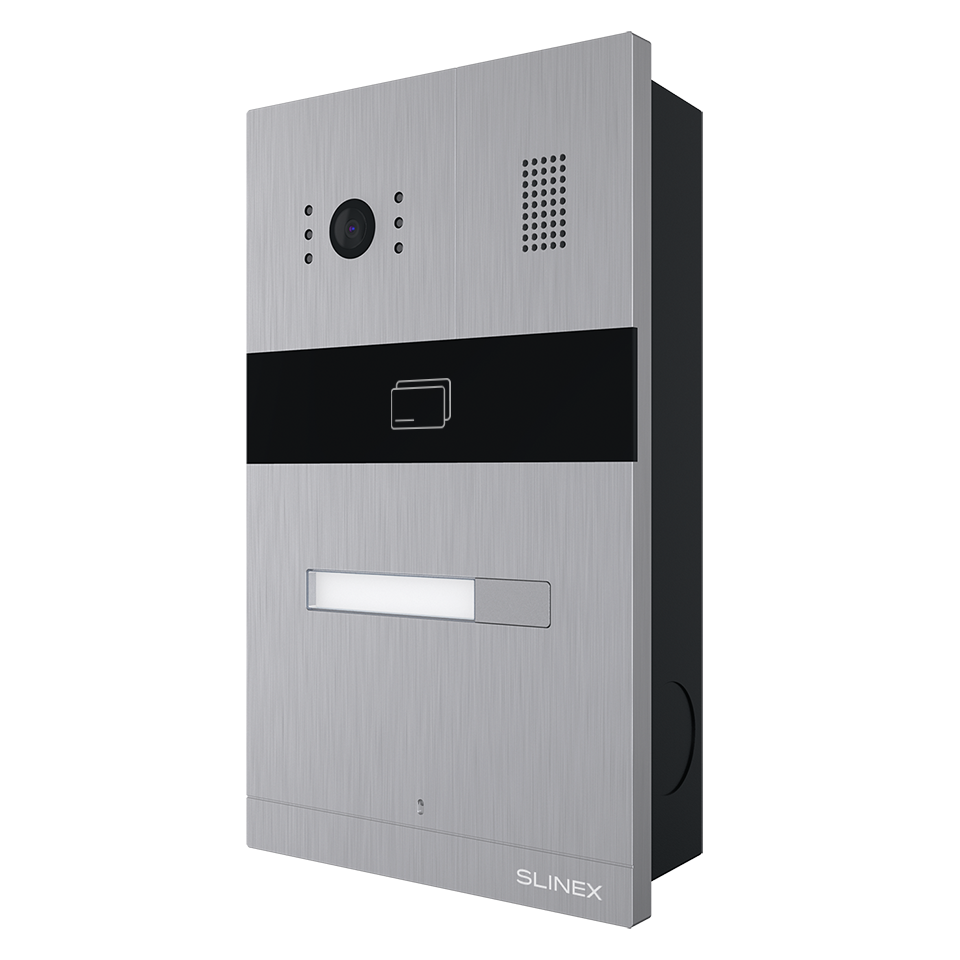

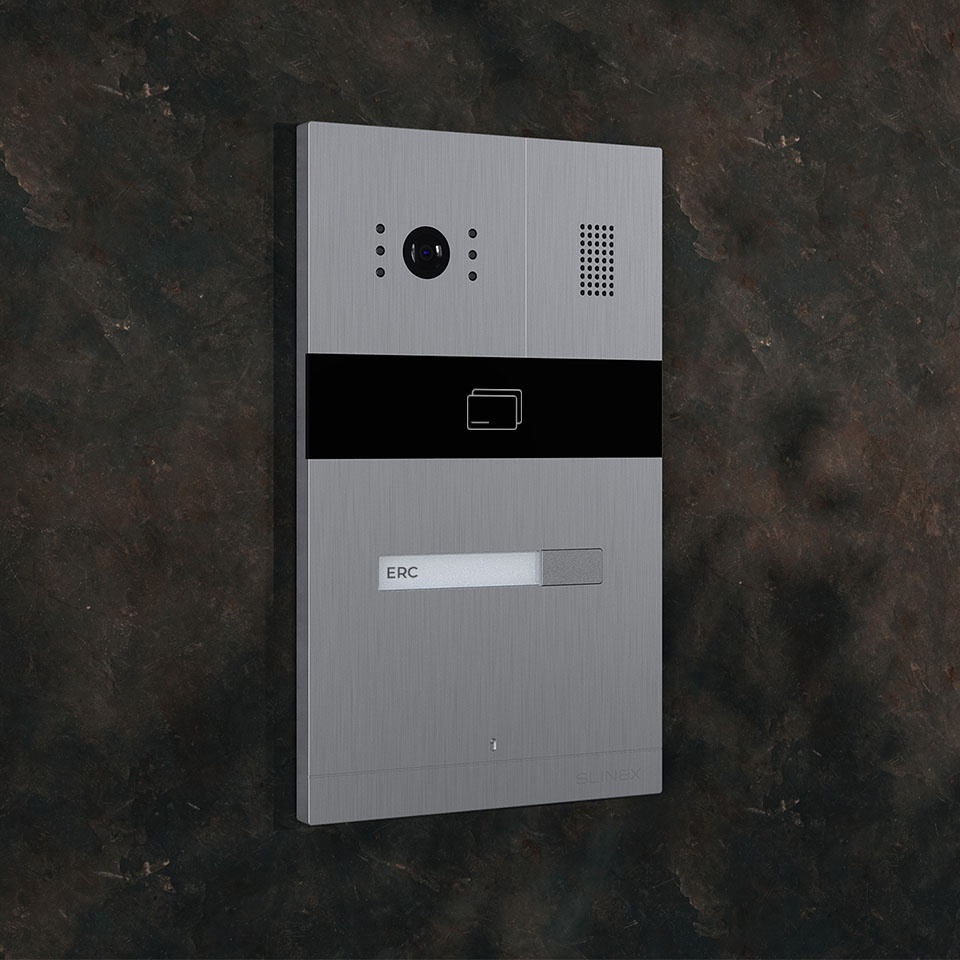

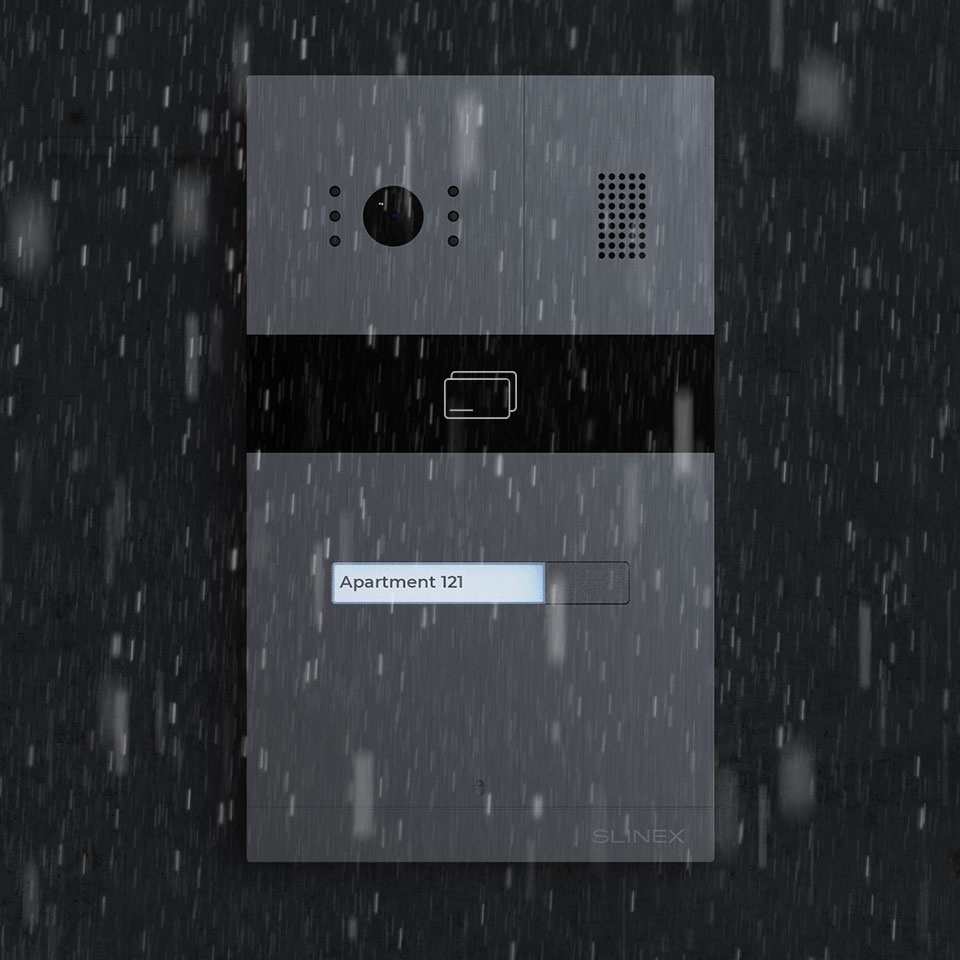

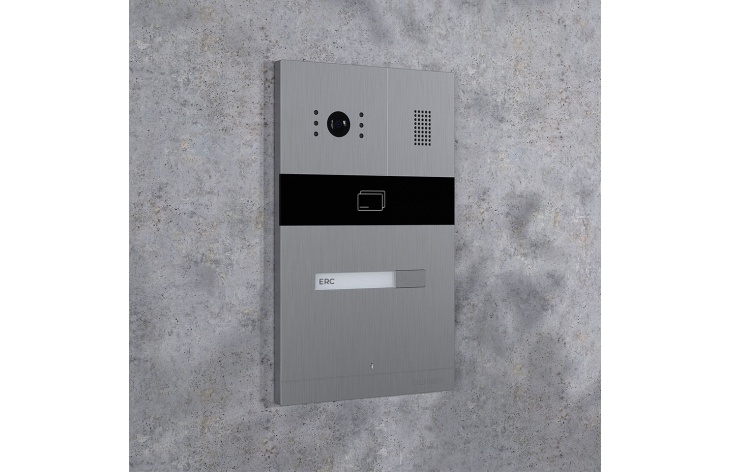

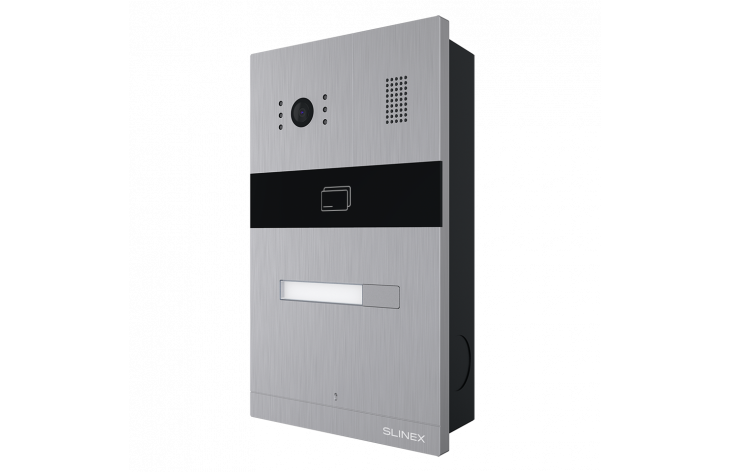

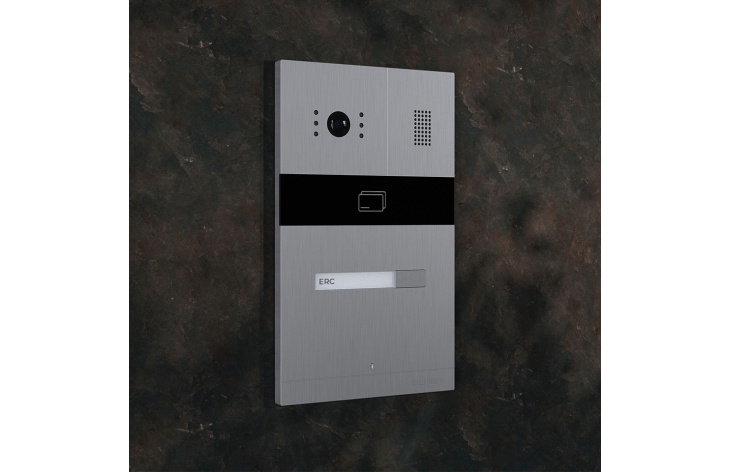

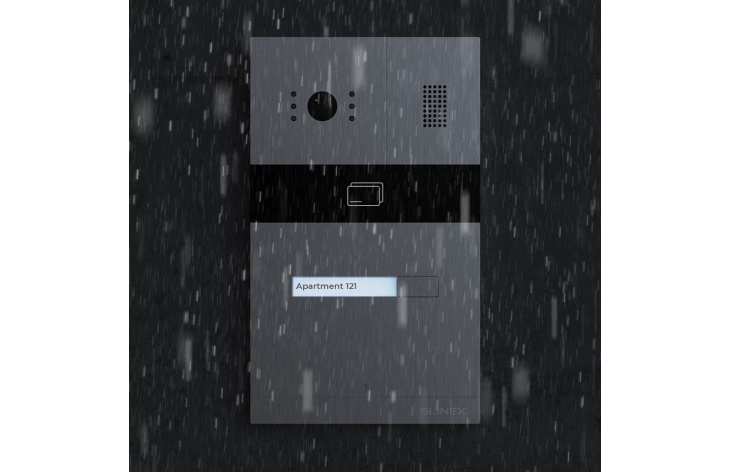

The MA-01CRHD body is made of brushed aluminum and has a special acrylic insert for the reader. The IP65 protection class of the device indicates its stability to the effects of dust and moisture. The outdoor panel is available in one color, "silver," which is universally suitable for all types of buildings. The panel is equipped with a Full HD camera with a 115° viewing angle, which allows for high-quality images and video to be displayed on the internal monitor.


Interoperability with additional devices
The MA-01CRHD is interoperable with any 4-wire intercoms. To increase the number of apartments in the system, an additional MA-08 extension module for eight apartments can be connected.


The Slinex MA-01CRHD is a modern outdoor panel designed with a stylish form factor and high functionality. It is simple and convenient to use.


Full description Hide
Horizontal viewing angle


Camera resolution

• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)


110×185×34 mm

Operating temperature

-40 – +65 °С


Device type
Individual outdoor panel
Unique features
• Combined EM-Marin / MIFARE reader
• Camera operation modes switcher (AHD-H, AHD-M, CVBS)
• Mechanical IR cut filter
• Wide-angle lens
• Nameplates backlight
• Support up to 2 MA-08 extensions (17 subscribers)
Type of sensor
1/2.9" CMOS
Cards type
Memory capacity
248 user cards
All characteristics
