Tabo
Individual IP outdoor station
- Resolution 2Mp (Full HD) / 1Mp (AHD) / 960TVL (CVBS)
- MIFARE IC Reader for 1000 cards
- Mechanical and magnetic type of locks support
- Nameplate backlight
- Dual power options: PoE and DC12V for flexible installation
Colors
Tabo
Individual IP outdoor station
- Resolution 2Mp (Full HD) / 1Mp (AHD) / 960TVL (CVBS)
- MIFARE IC Reader for 1000 cards
- Mechanical and magnetic type of locks support
- Nameplate backlight
- Dual power options: PoE and DC12V for flexible installation
Colors
Description

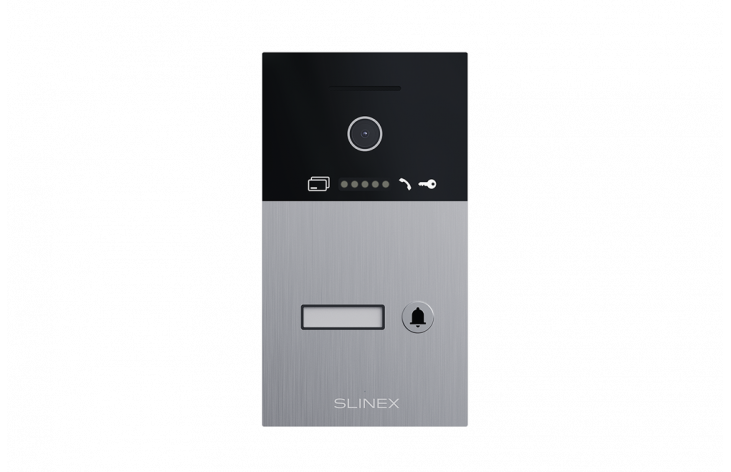

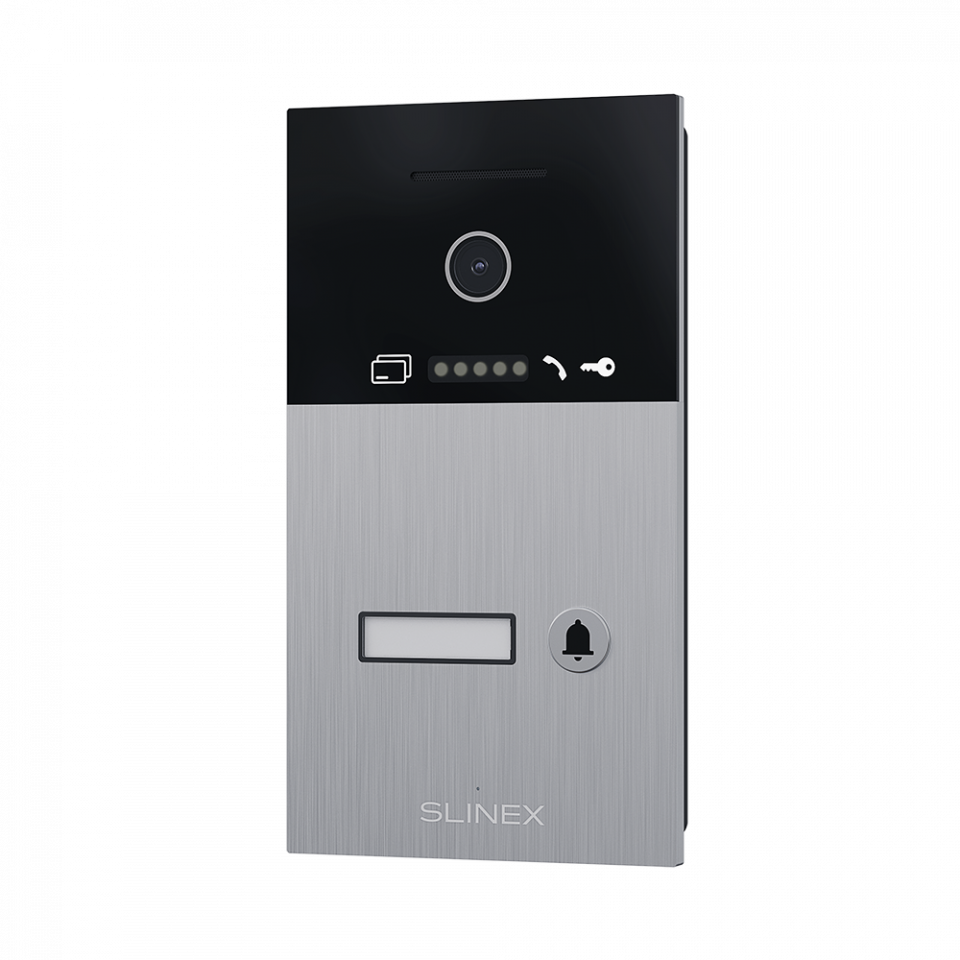

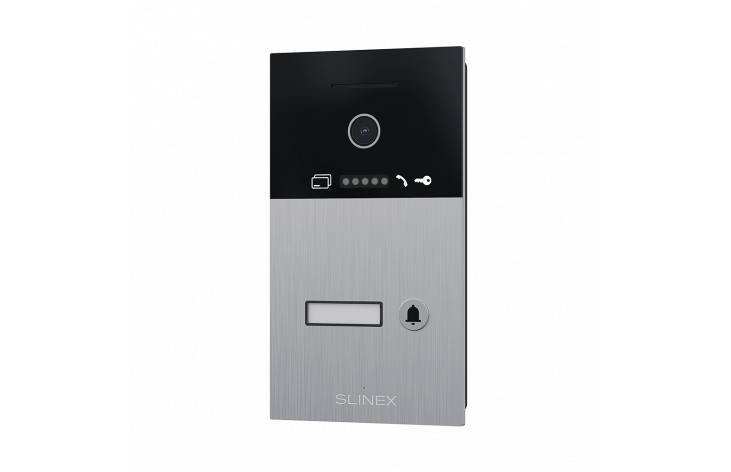

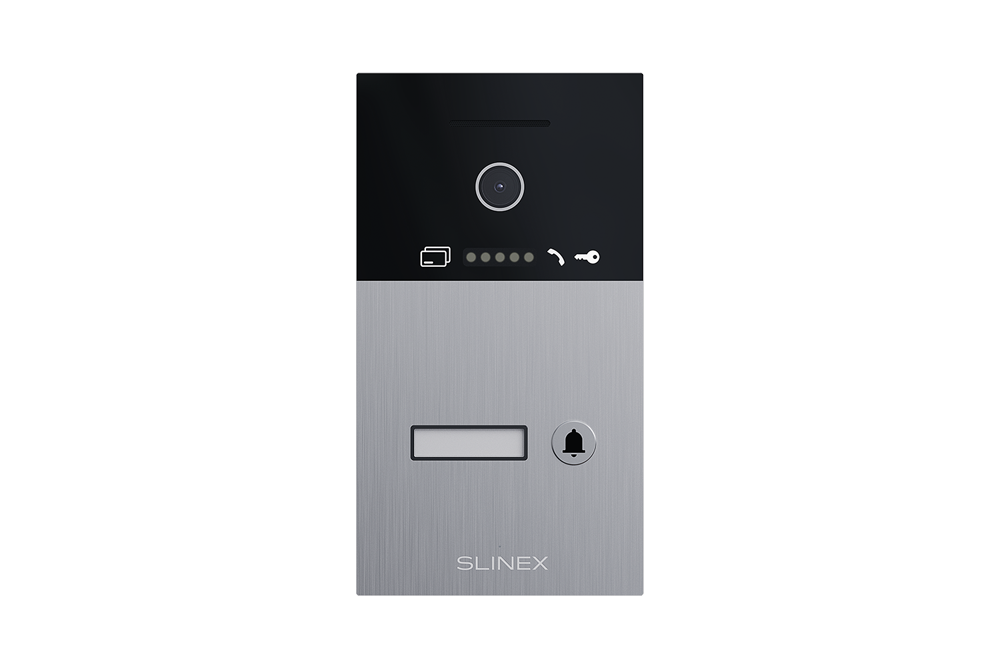

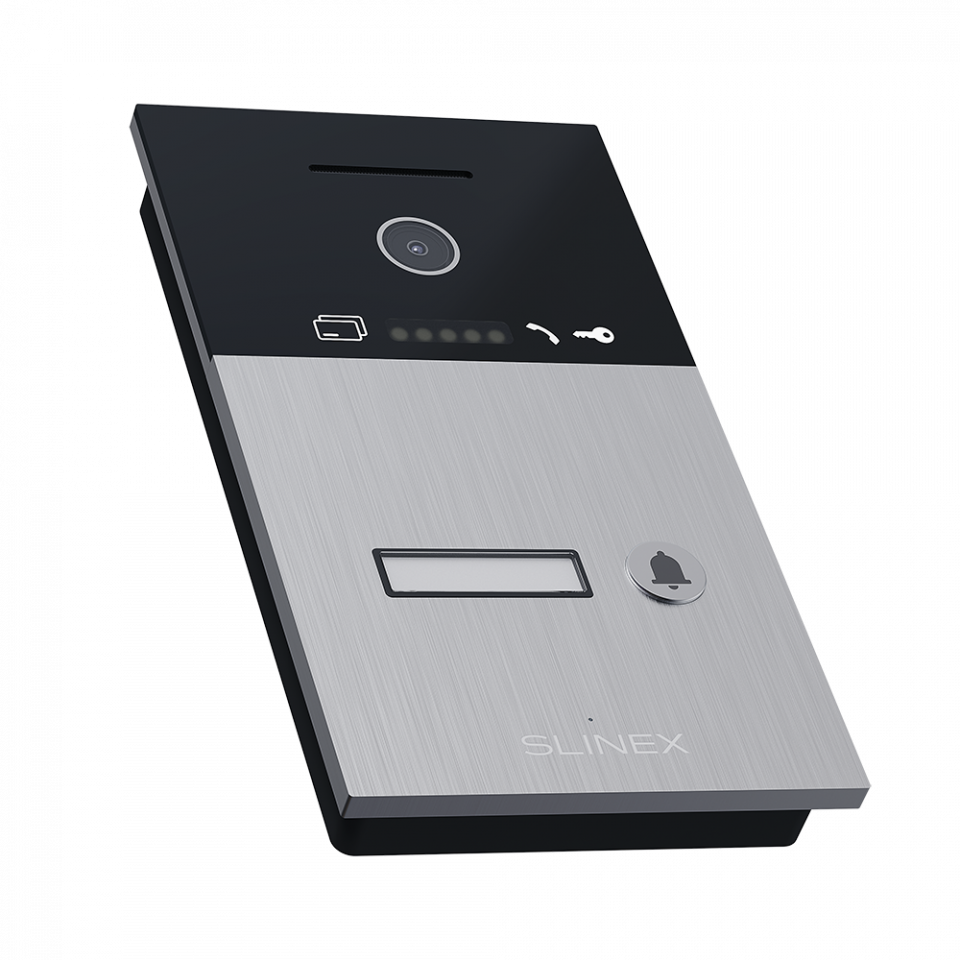

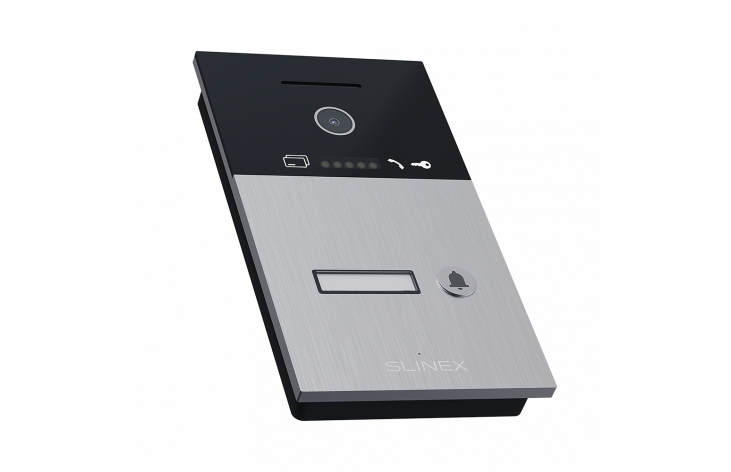

Introducing the Slinex Tabo Outdoor Station
The Slinex Tabo outdoor station is a key component of the IP Direct series, designed to enhance security and access control for modern homes and businesses. With a resolution of 2MP (Full HD), it ensures crystal-clear video quality for reliable identification.
Secure Access Control
Equipped with an optional MIFARE IC reader, the Tabo station can manage access for up to 1000 users, providing enhanced security through MIFARE cards. User management is easily handled from the connected monitor.
Versatile Lock Control
The Tabo station supports both electromechanical and electromagnetic locks, giving you the flexibility to choose between mechanical or magnetic locking solutions, including options for NO, NC, and exit buttons.
Flexible Installation Options

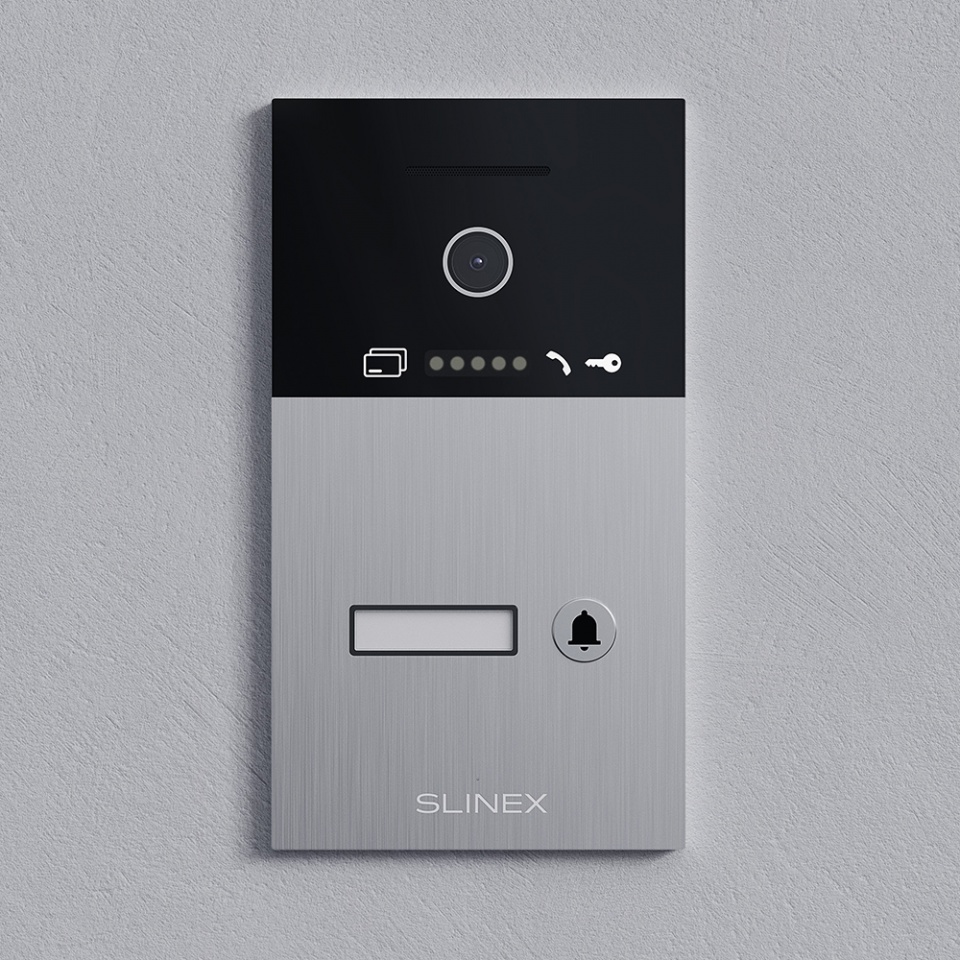

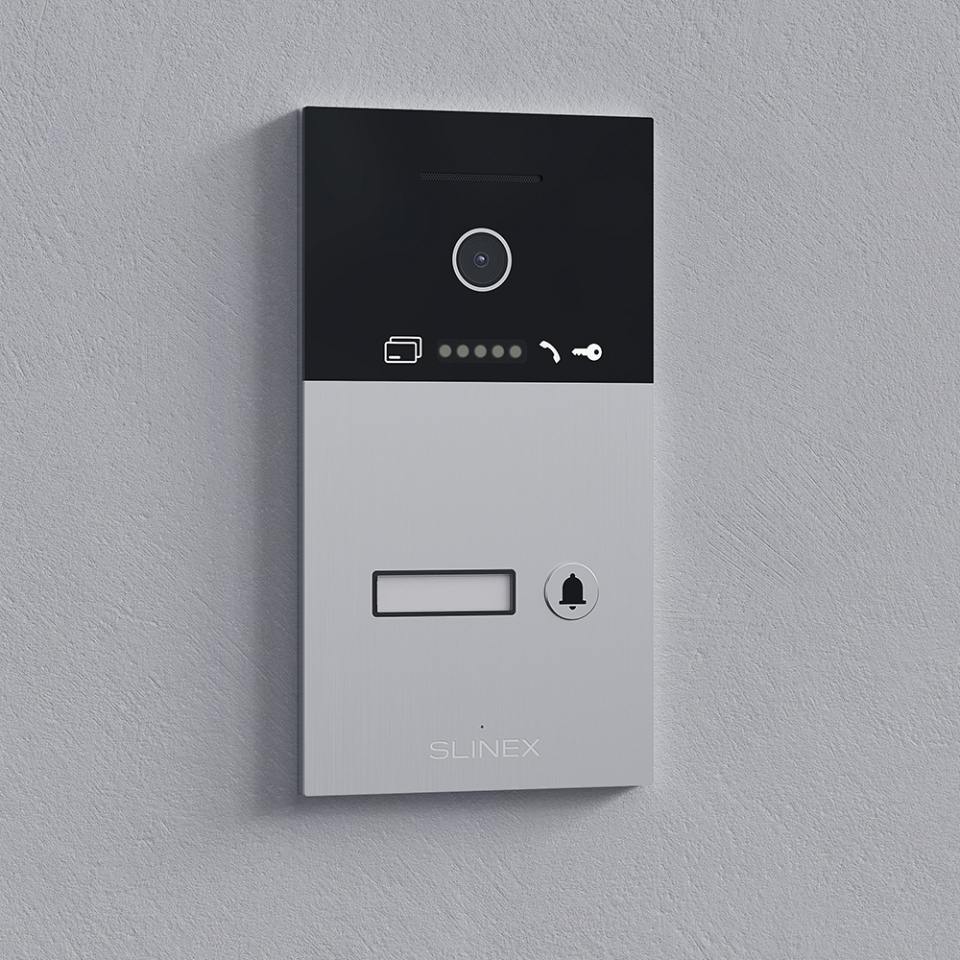

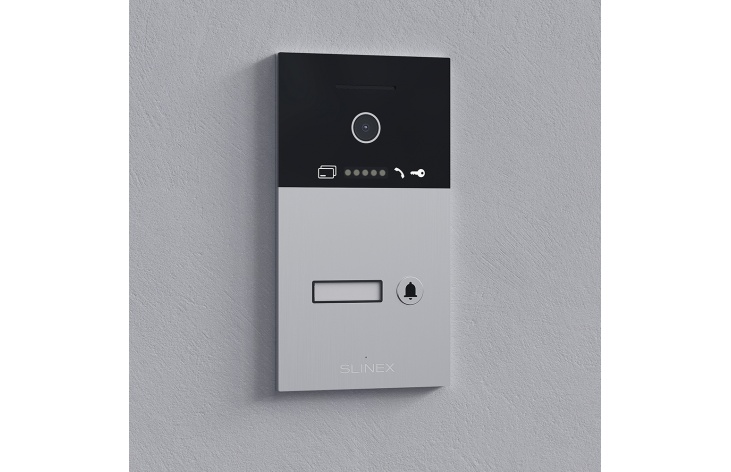

Choose between flush-mounting for a sleek, integrated look or wall-mounting for convenient access. The design accommodates various installation preferences to suit your space.
Backlit Nameplate
Featuring a backlit nameplate, the Tabo allows you to clearly display apartment numbers, office names, or company names. This ensures visibility even in low-light conditions, making it easy for visitors to identify the correct location.
Dual Powering Options
With dual powering capabilities (PoE + DC12V), the Tabo station offers flexible power sourcing. You can opt for Power over Ethernet for simplified wiring or use a standard 12V DC power supply, making installation efficient and adaptable to your needs.
Horizontal viewing angle
115º
Camera resolution
• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)
Dimensions
116×210×33 mm
Operating temperature
-40 – +50°С
Characteristics
- Device type
- Individual IP outdoor station
- Camera resolution
- • 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS) - Type of sensor
- 1/3" CMOS
- Horizontal viewing angle
- 115º
- Dimensions
- 116×210×33 mm
