First impression

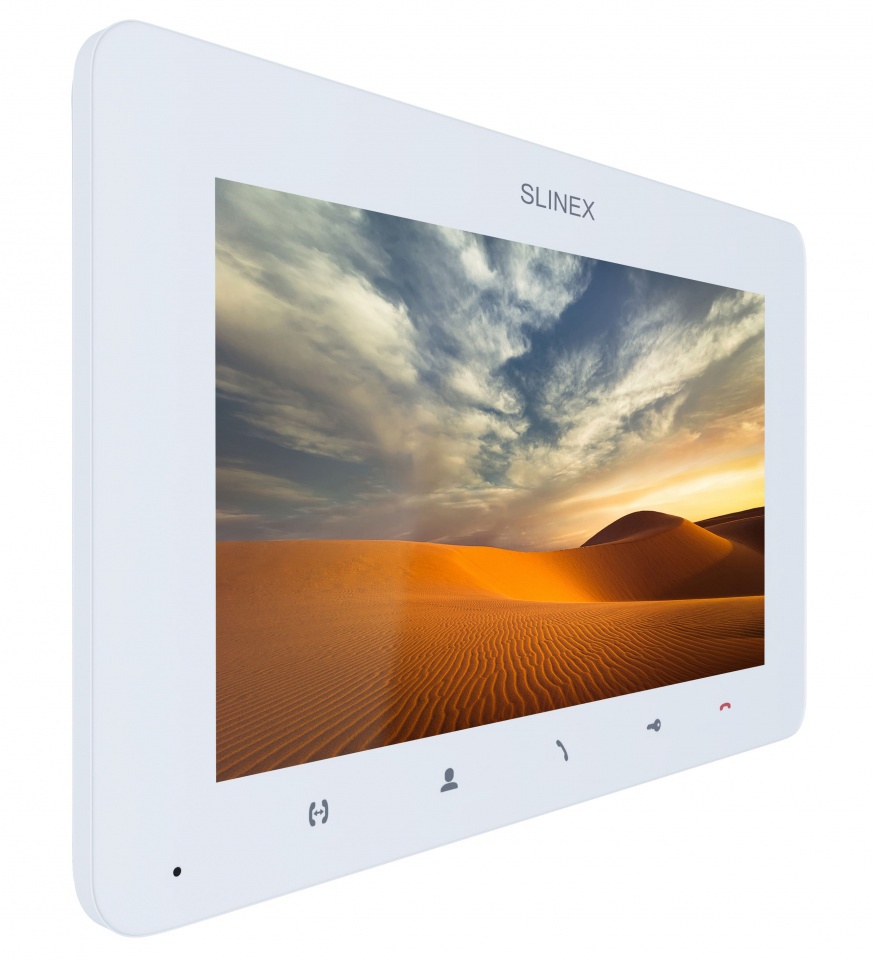

Slinex SМ-07MN is the ideal solution for users who are looking for an inexpensive but fully functional video intercom with a large screen. In addition to the ultra-thin body available in three colors, the SM-07MN is distinguished by the presence of a slot for an external memory card, which is used for saving photos and video. In addition, the device has an internal memory for 100 frames.

Where to use
The video intercom SM-07MN is an excellent solution for any facility. Due to its compact size, it is appropriate for use both in an apartment and office. Classical colors allow placing this intercom in any interior.

The main features of the model

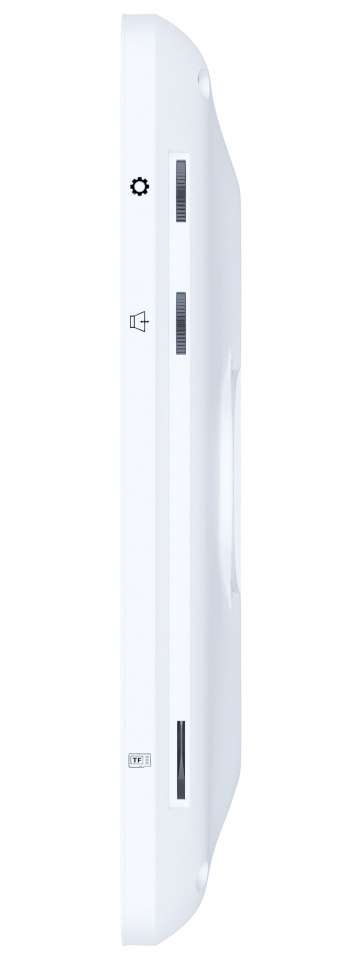

Speaking about the features of the SM-07MN, particular attention should be paid to the device’s memory.  The model is equipped with an internal memory to store up to 100 frames and the external microSD card up to 64GB used for video recording.

Touch buttons for control are placed at the bottom of the body and marked with intuitive pictograms. Regarding the ringing tone, you can select one of 16 polyphonic ringtones recorded in the device. Of course, you can adjust the volume of the call and the conversation. In addition, the SM-07MN has the function of adjusting the opening time of the lock. If at the first glance it may seem to be an absolutely unnecessary function, you need to know more about it. You can set the delay time of the relay operation, and the visitor does not have to hurry to grab the door handle, and you do not need to go back to the intercom if the guest was not fast enough to open the door.  This feature is very convenient for you and your visitors.

Appearance and display

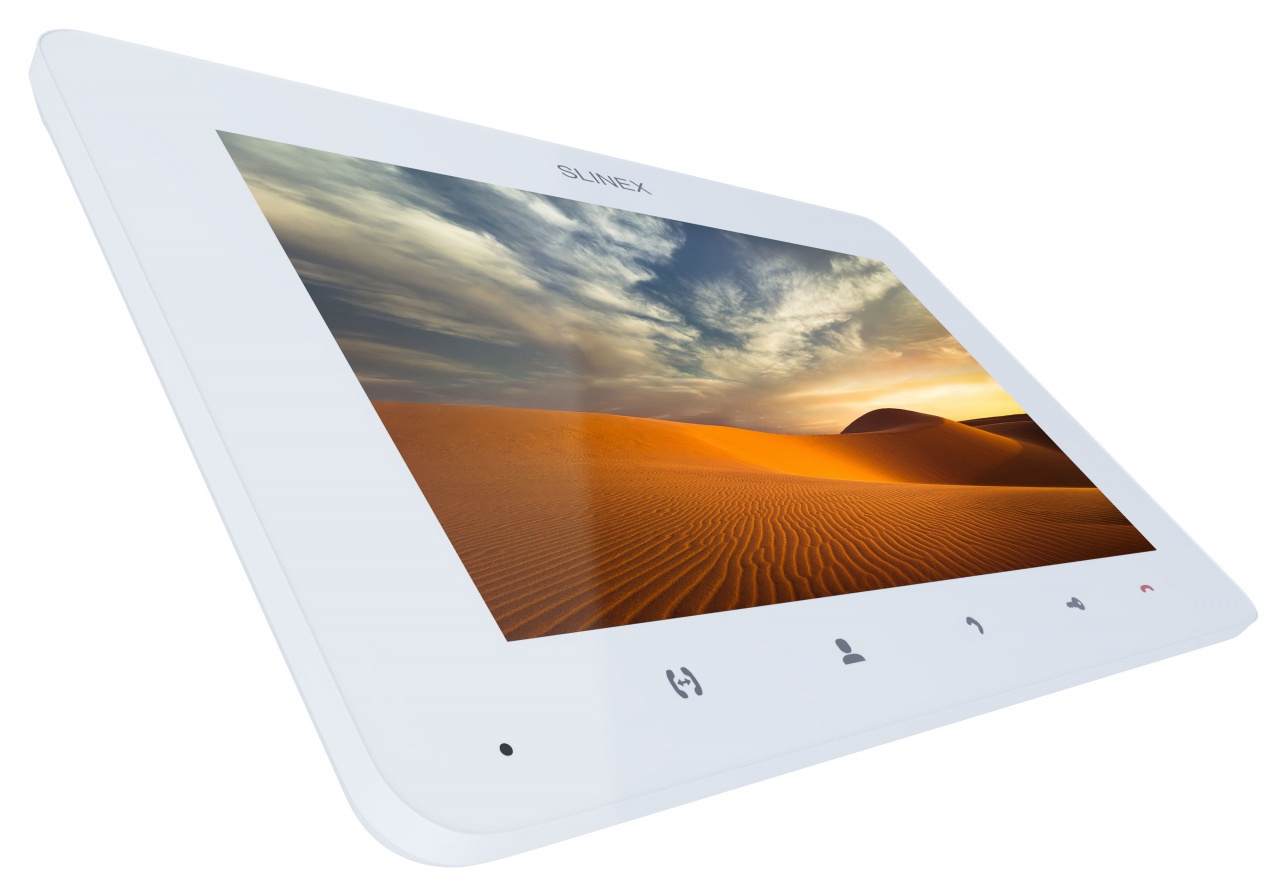

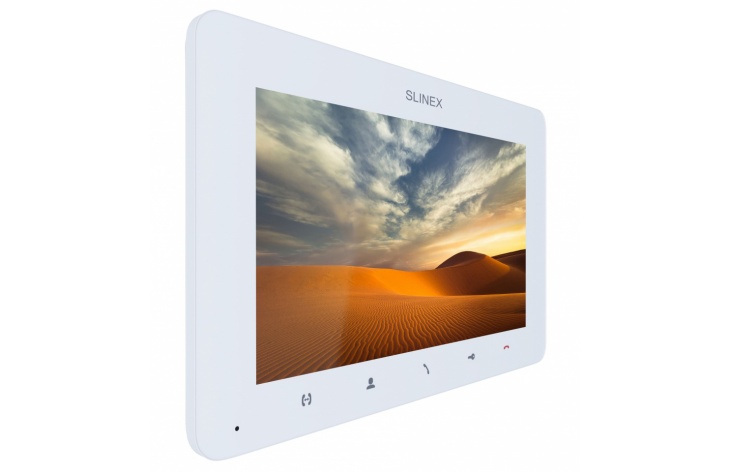

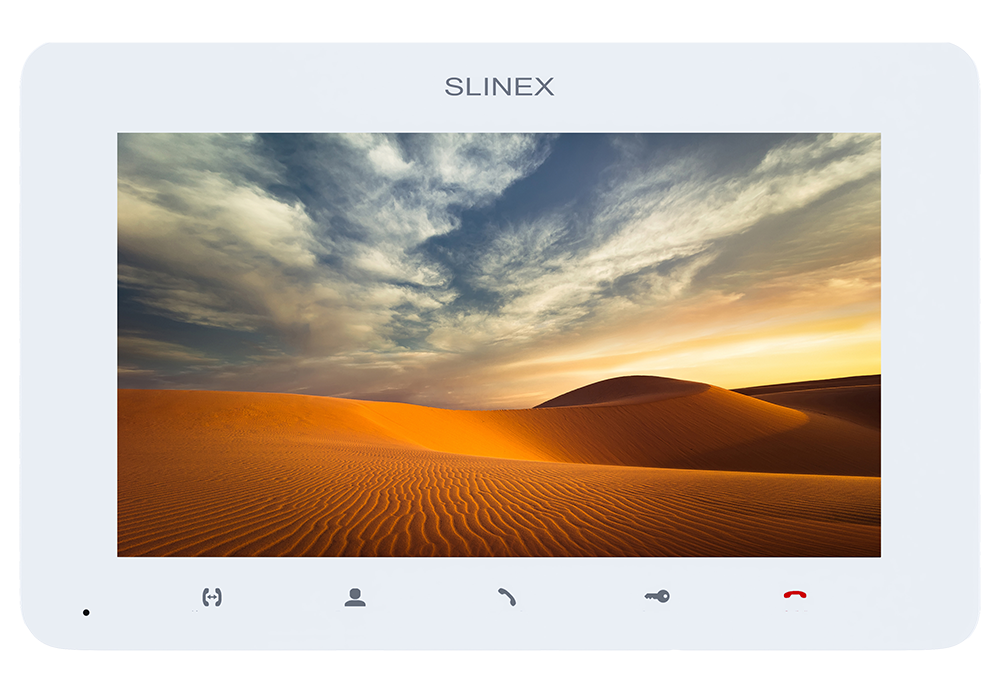

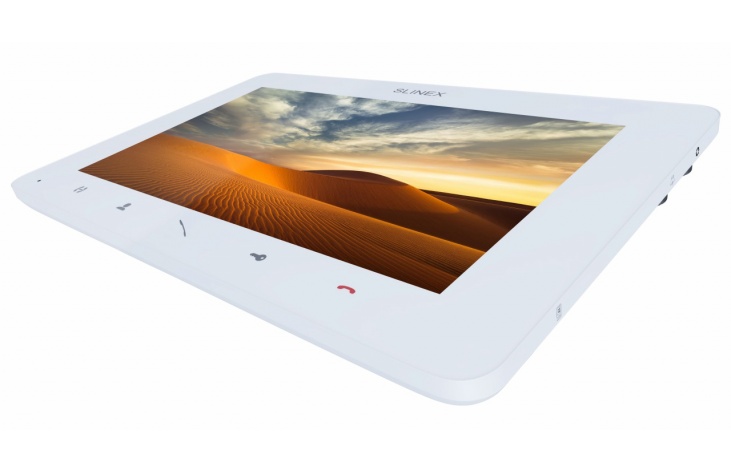

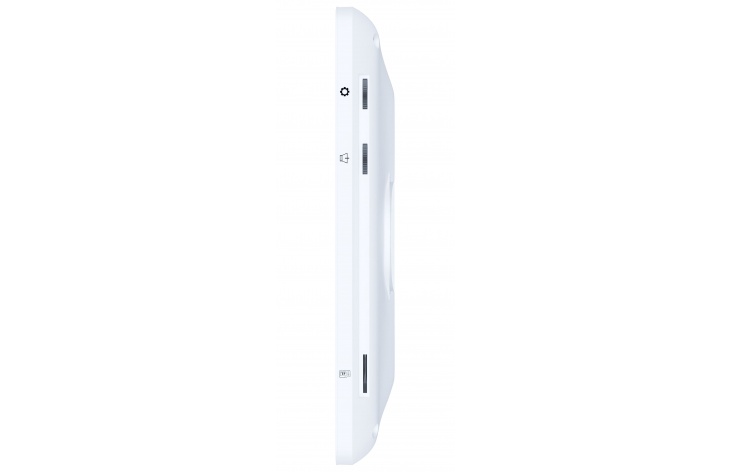

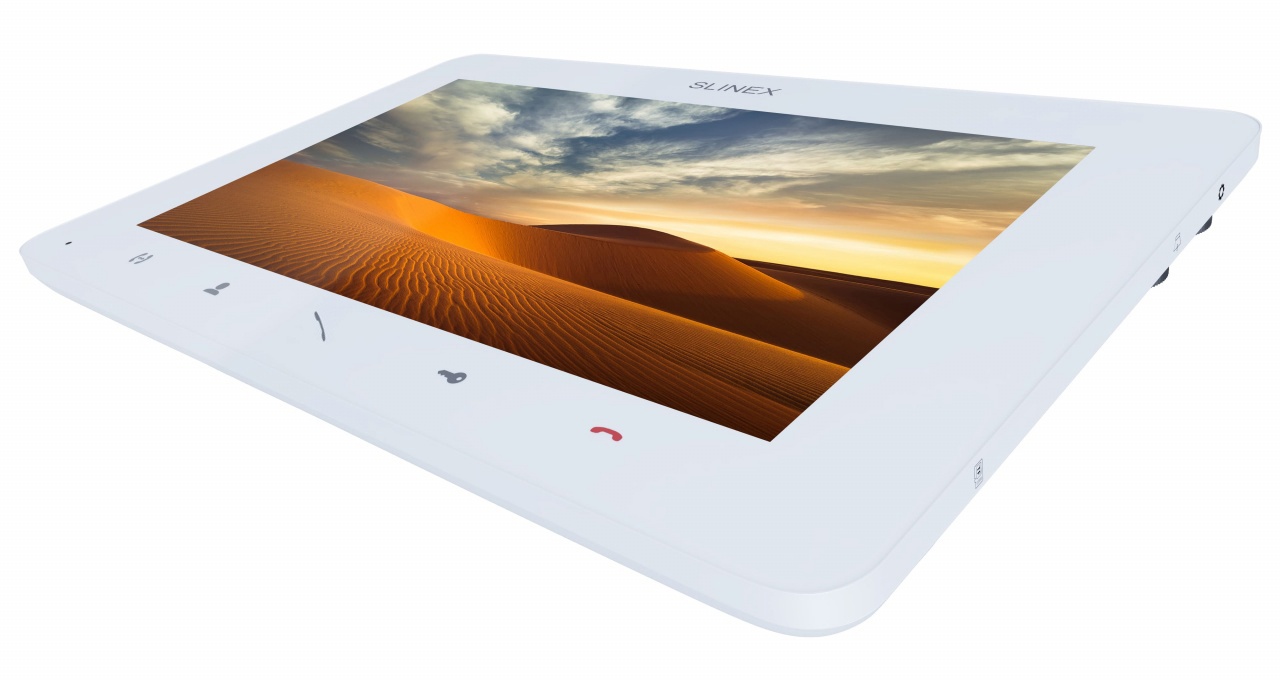

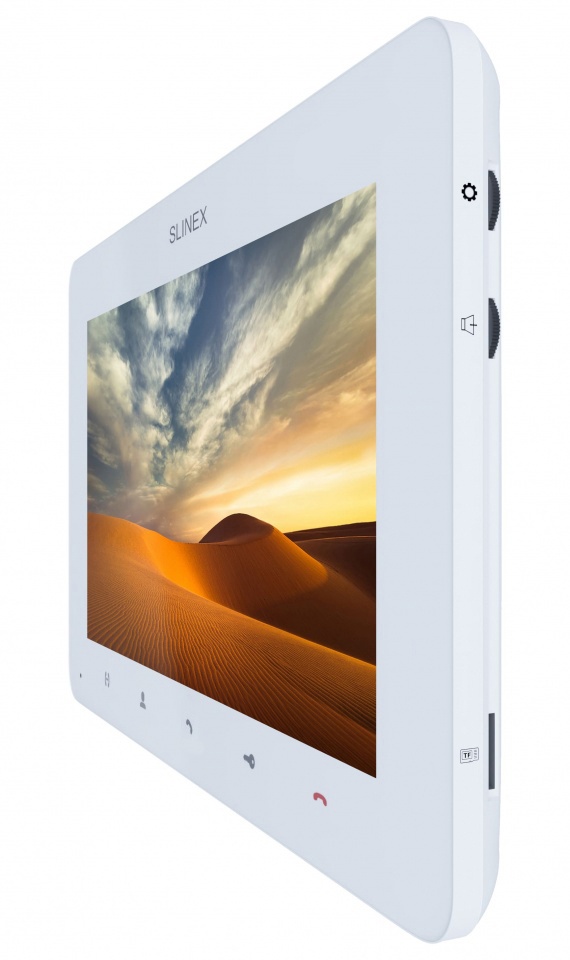

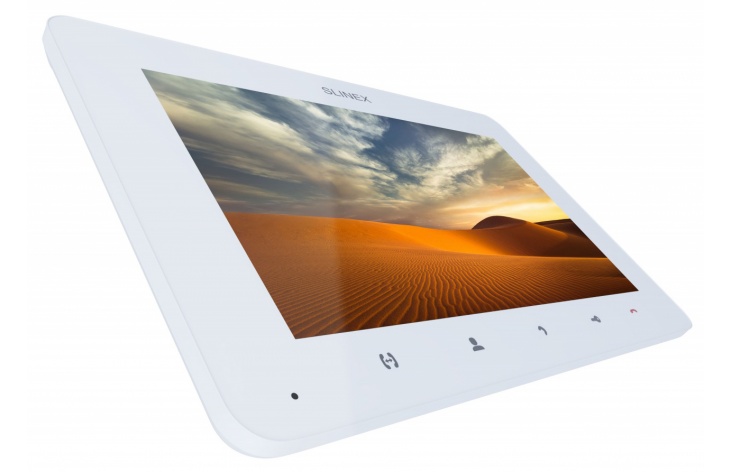

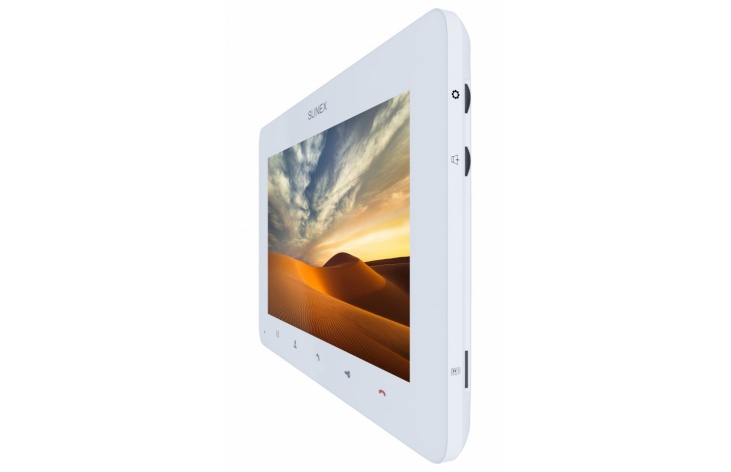

The design of the intercom deserves special attention. The body of the device is made of plastic and presented in three colors: silver, graphite, and white. The device dimensions are 193×123×18 mm. The model requires wall-mount installation.  All the elements needed for installation are included in the kit.

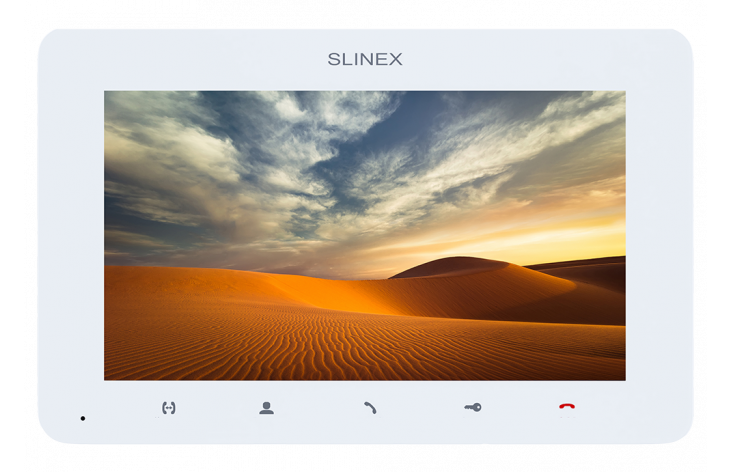

The SM-07MN has a 7 inch IPS display providing high-quality color images with a resolution of 1024×600 pixels.

Device compatibility with additional components
The model SM-07MN is compatible with almost all analog outdoor panels that support PAL/NTSC standards as well as with all analog CCTV surveillance cameras regardless of the manufacturer.

Brief guide for intercom installation
1. Place the bracket in the location of the intended installation;
2. Drill the required number of holes in the wall (4);
3. Place the dowels from the set in the holes;
4. Fix the bracket with screws;
5. After connecting the required communication wires, fix the intercom on the bracket.

The video intercom SM-07MN has all the functions necessary for the most efficient use of the device.  This intercom is multifunctional and budgetary. Due to its laconic design and calm colors, it will look great in any interior.

Full description Hide
Display

7”, IPS screen 16:9

Dimensions

193×123×18 mm

UNIQUE FEATURES

• A separate ringtone for each connected panel;
• Motion detection software;
• Ability to turn off the backlight button;
• Enable and disable sound for selecting menu items

ADDITIONALLY

• 12 polyphonic ringtones
• Adjustable time of lock opening
• Adjustable call and conversation volume

Characteristics

Screen resolution
1024×600
Outdoor panels quantity
2
Additional video cameras quantity
2
Memory
Support of microSD card up to 32GB
Power consumption
Up to 8W
