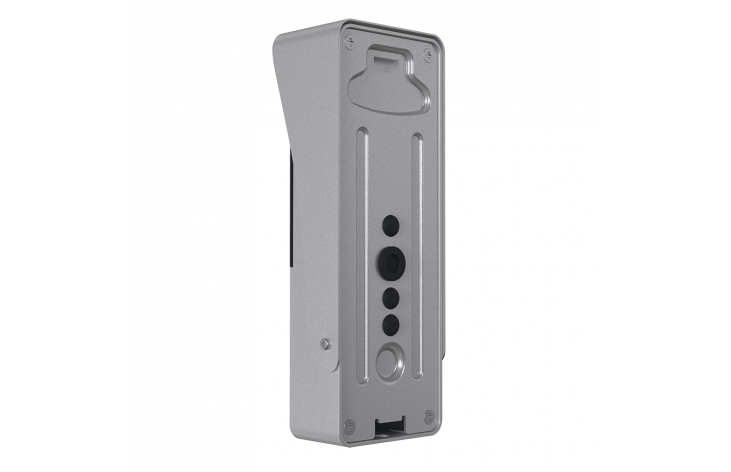

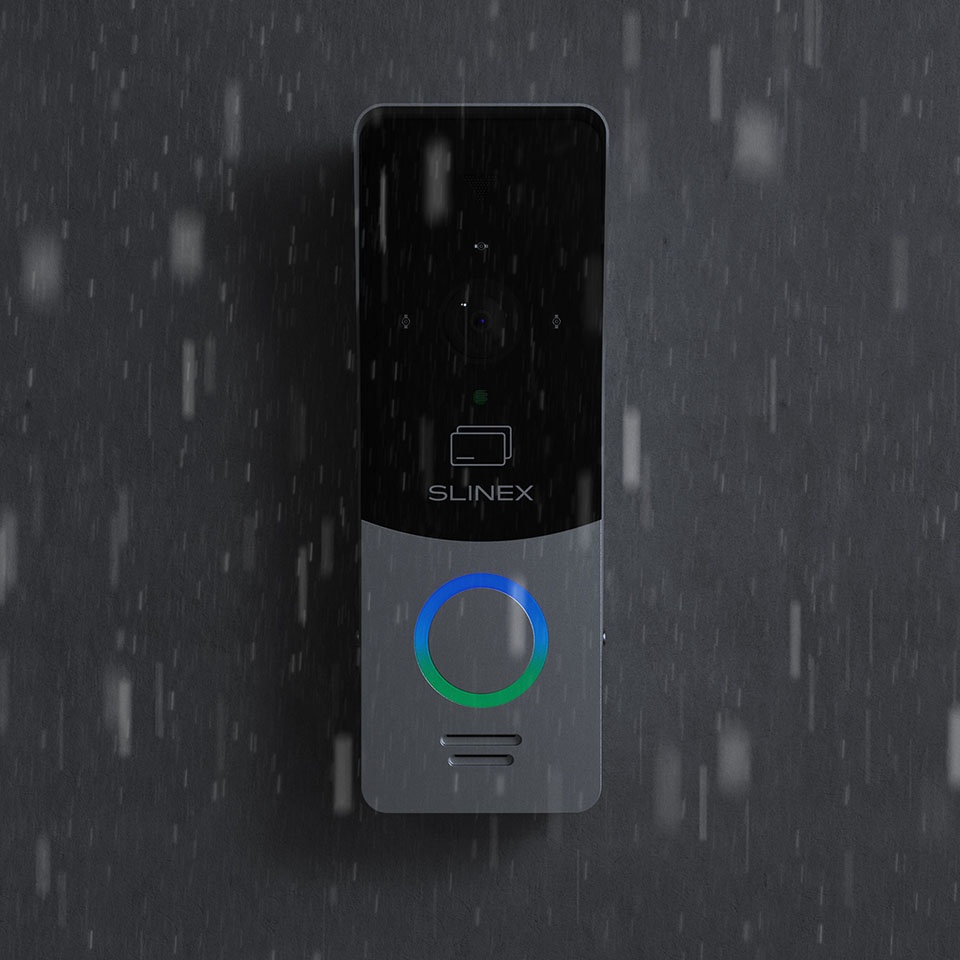

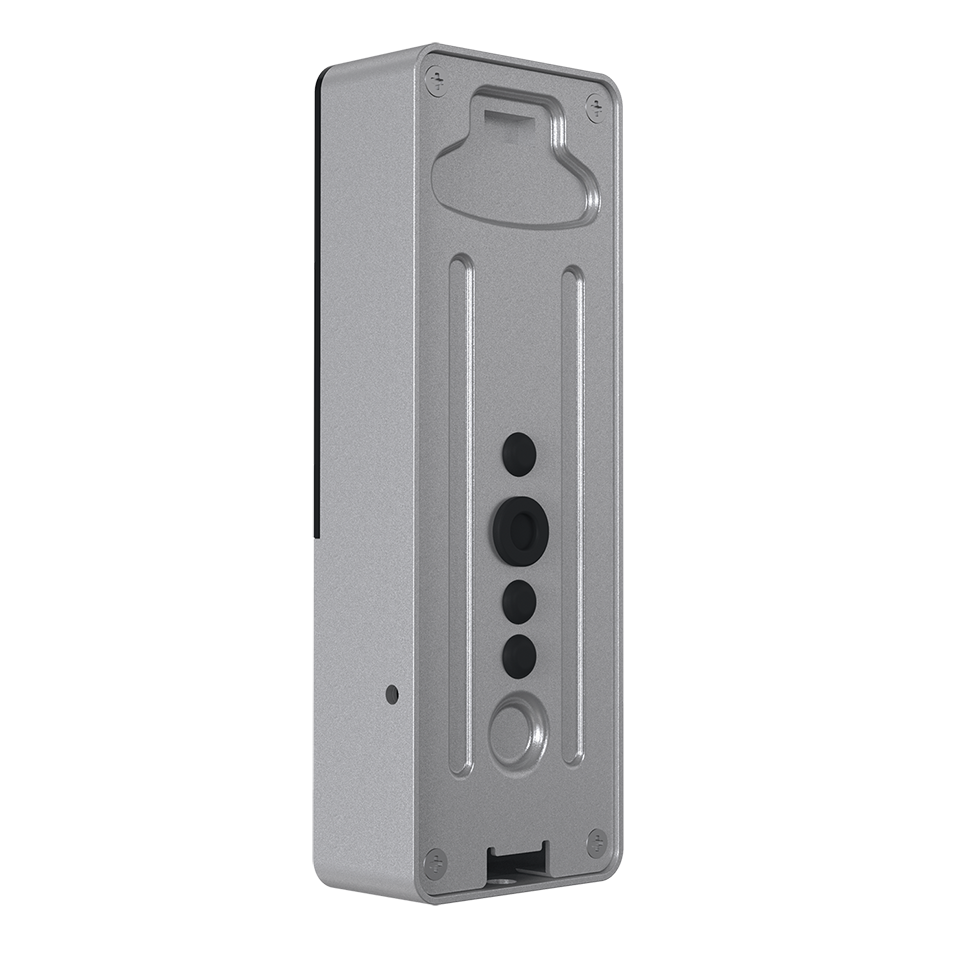

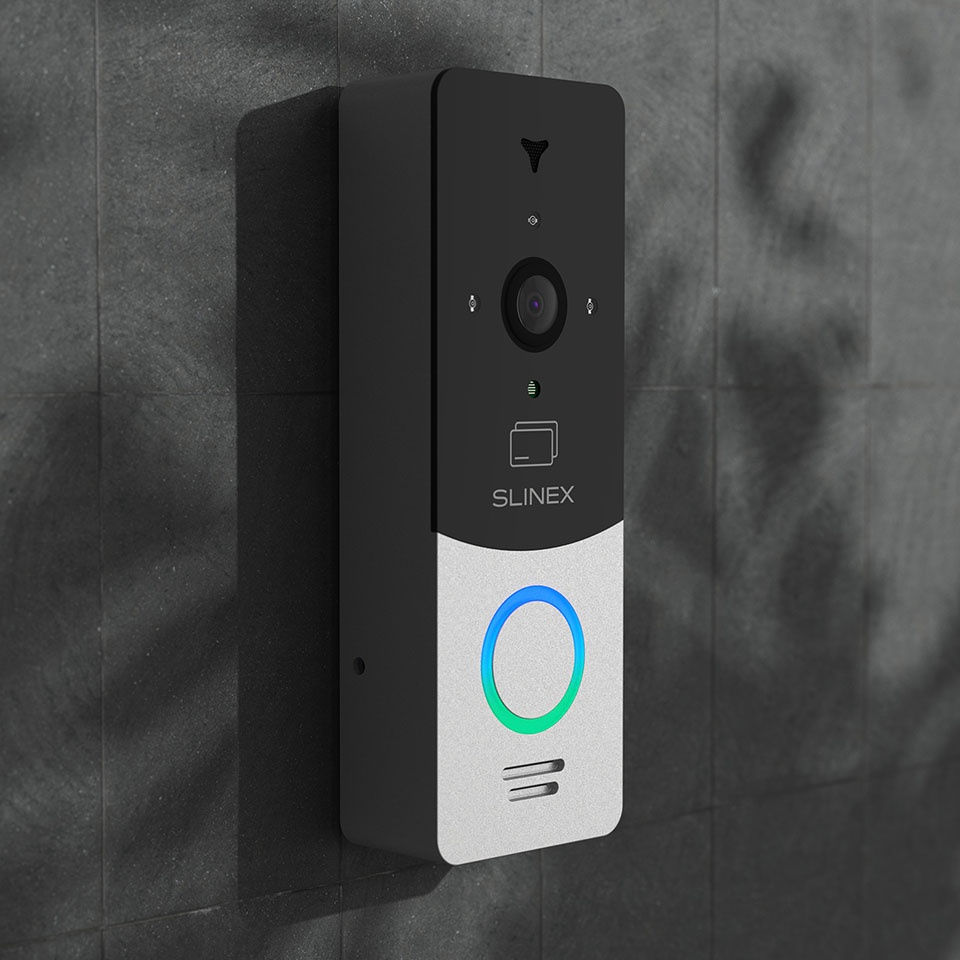

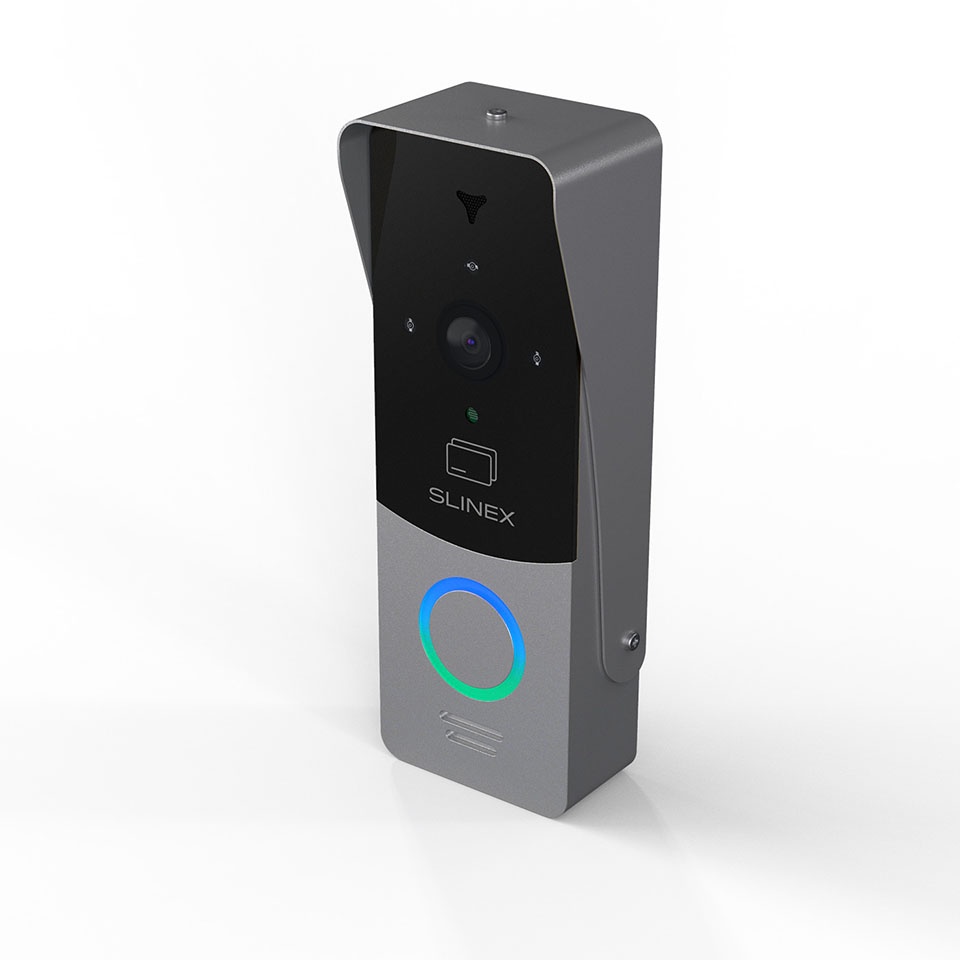

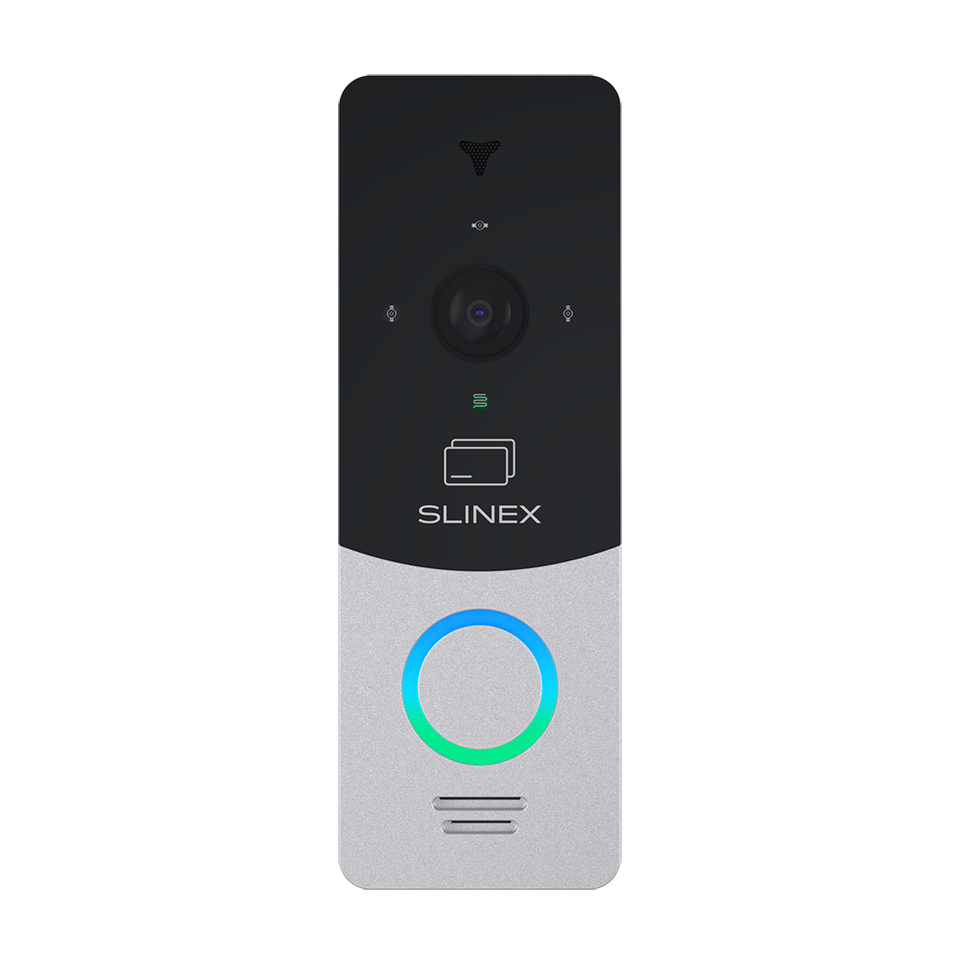

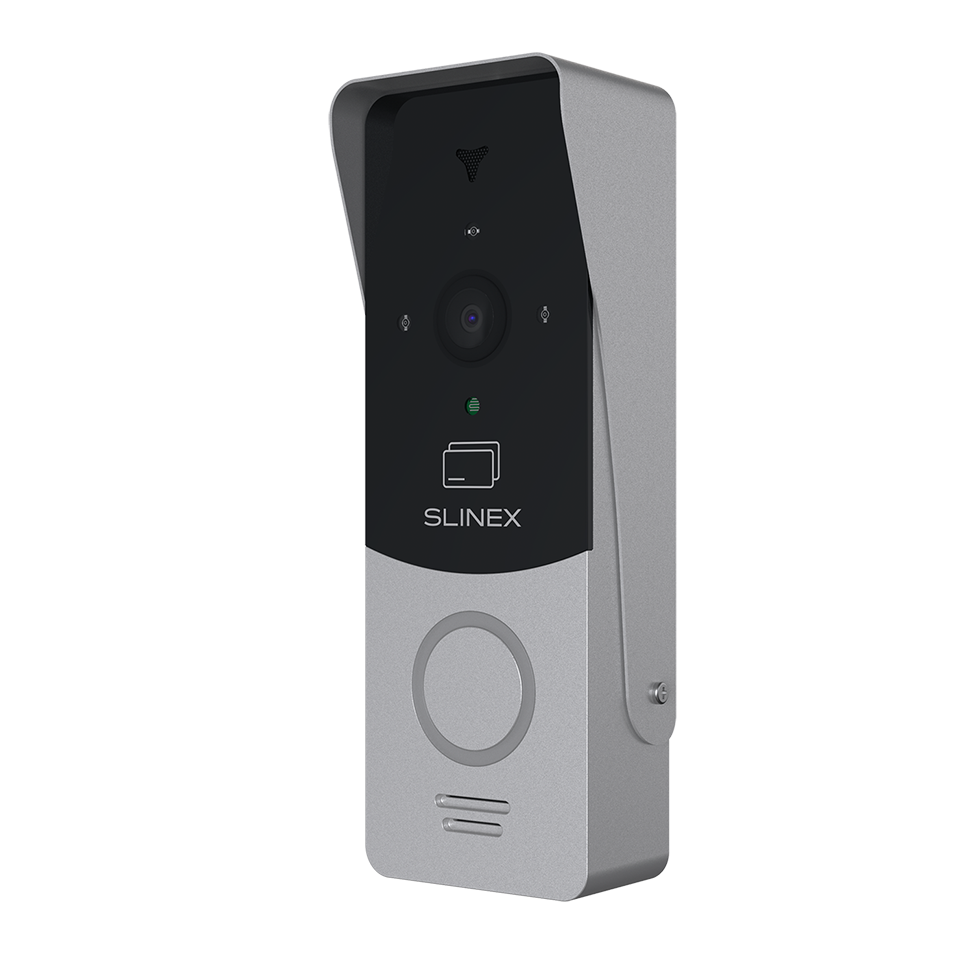

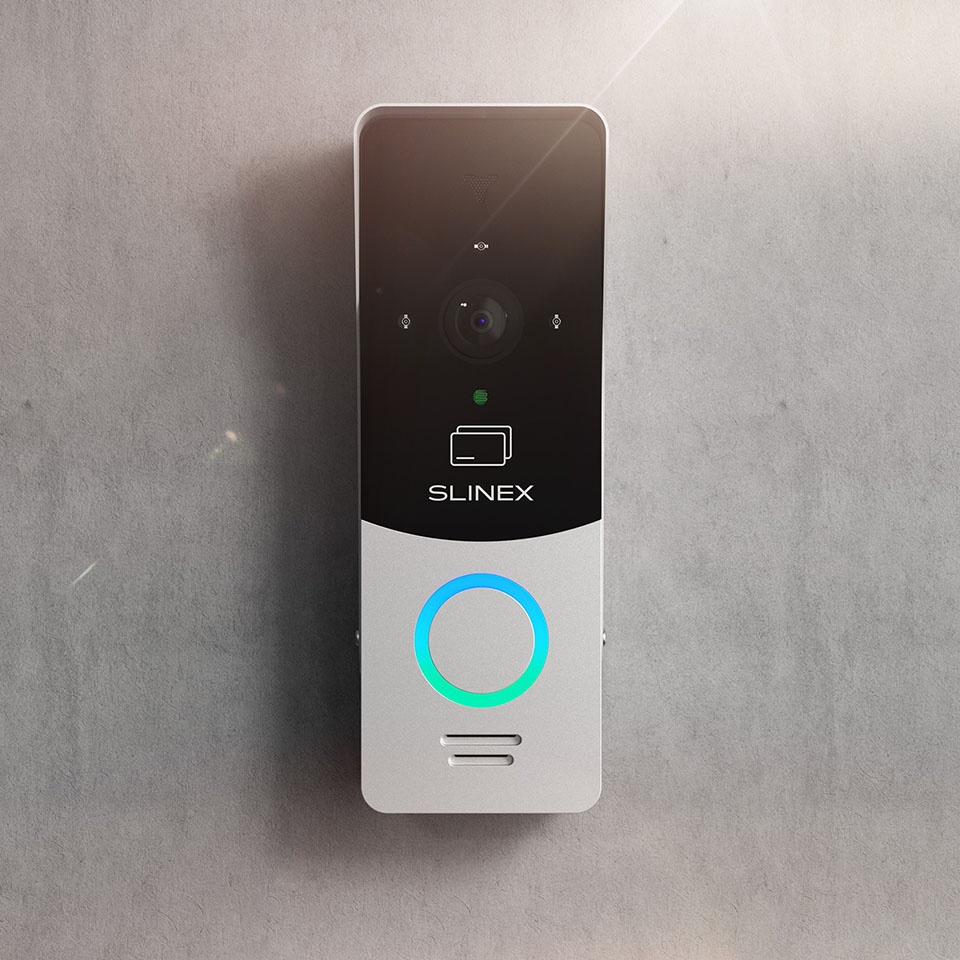

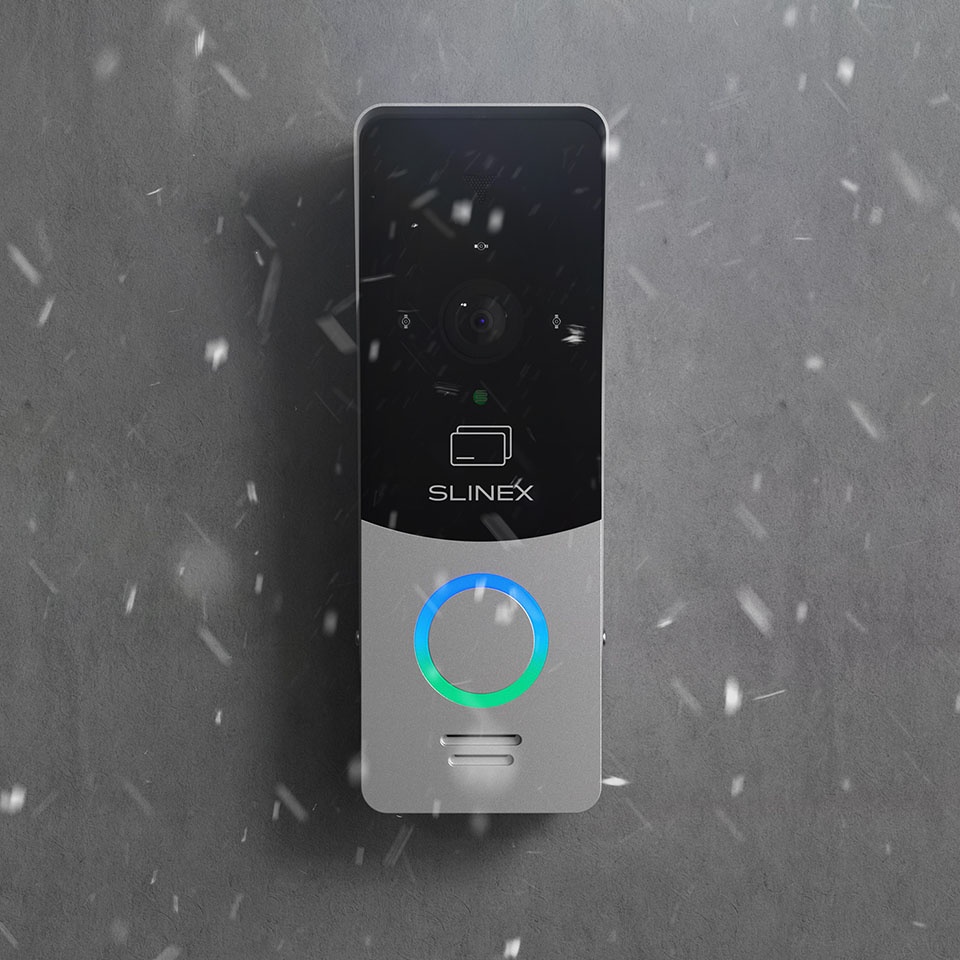

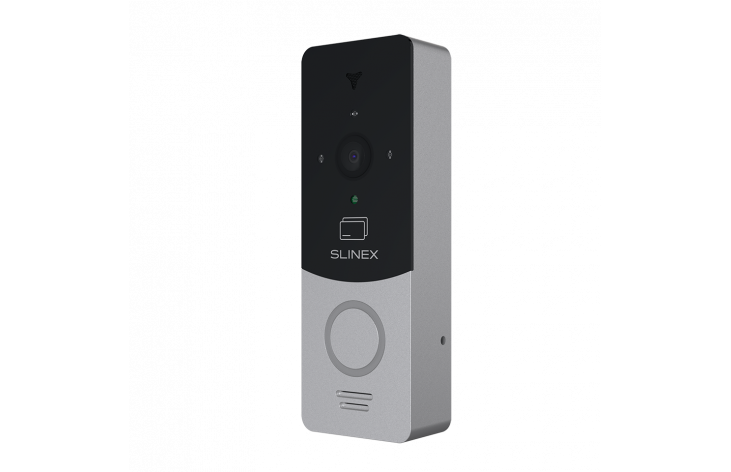

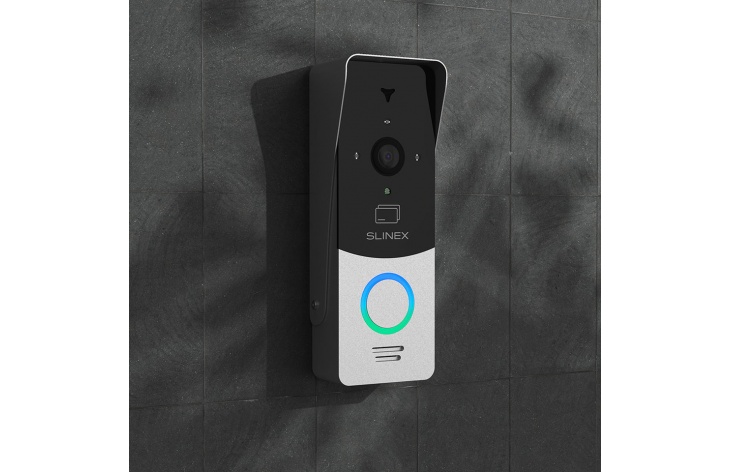

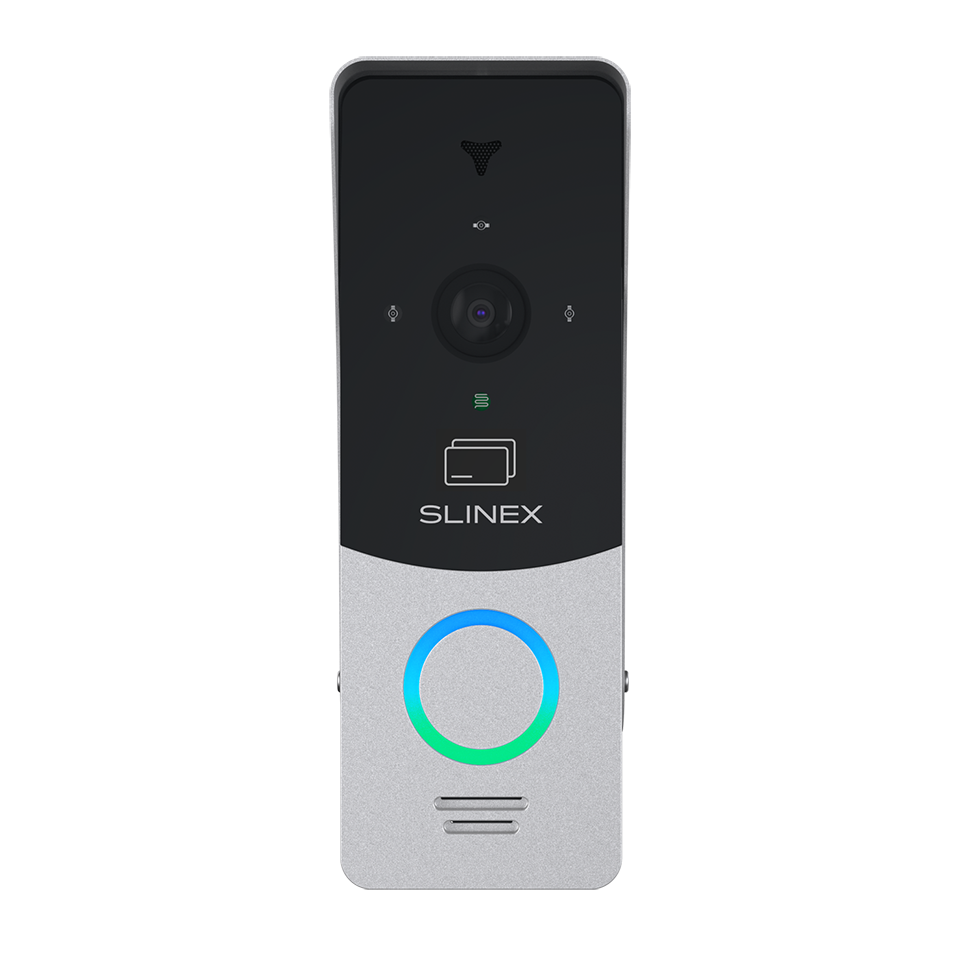

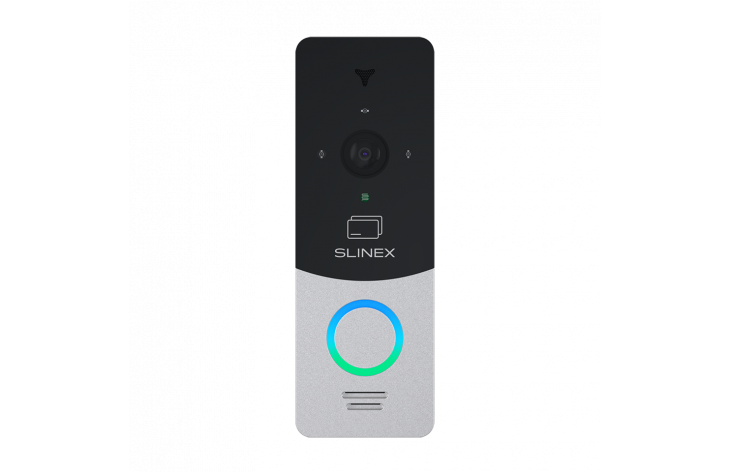

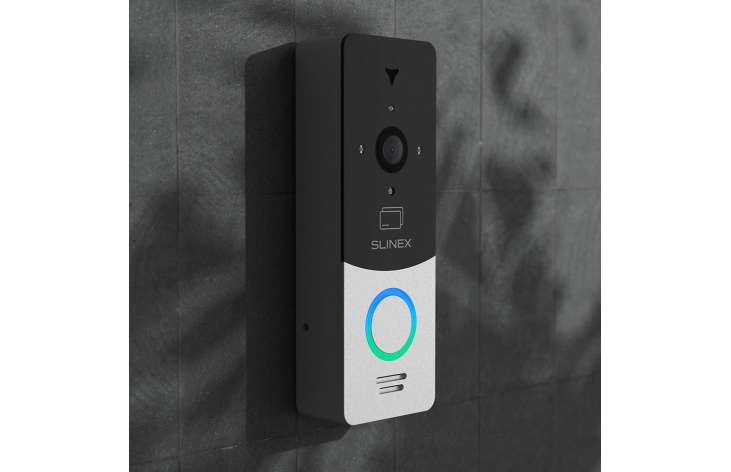

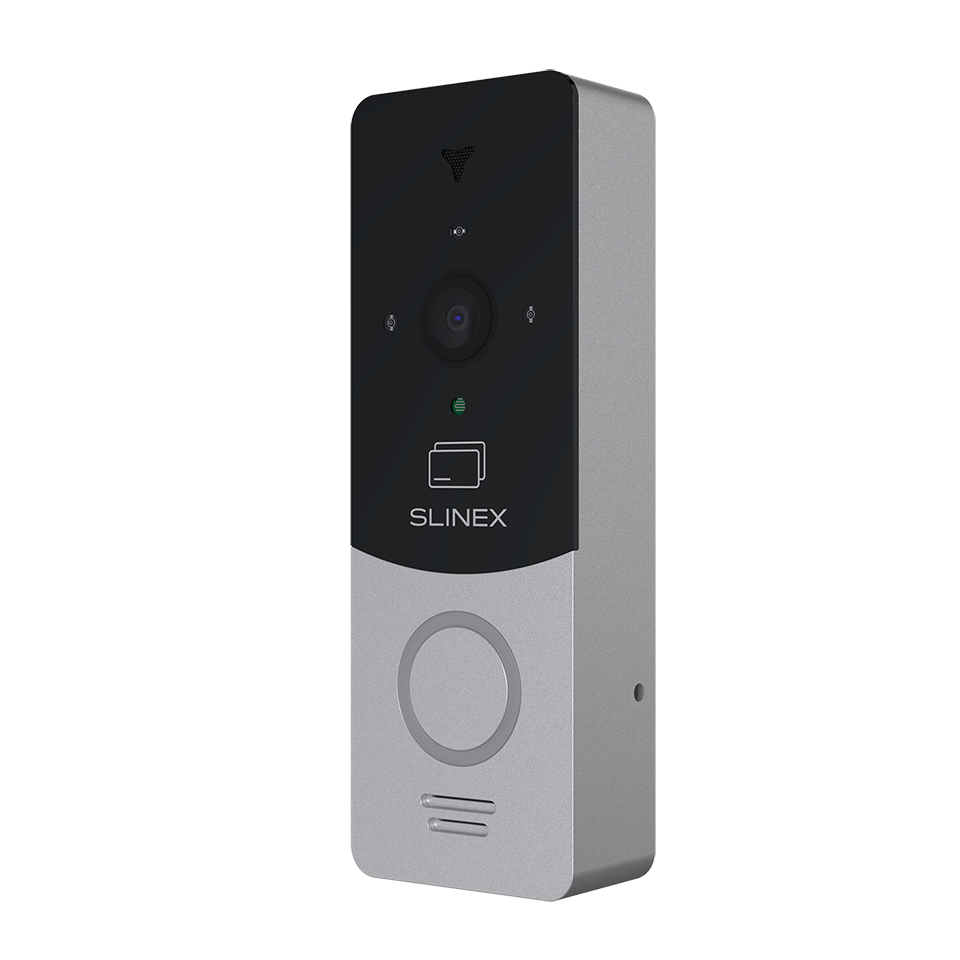

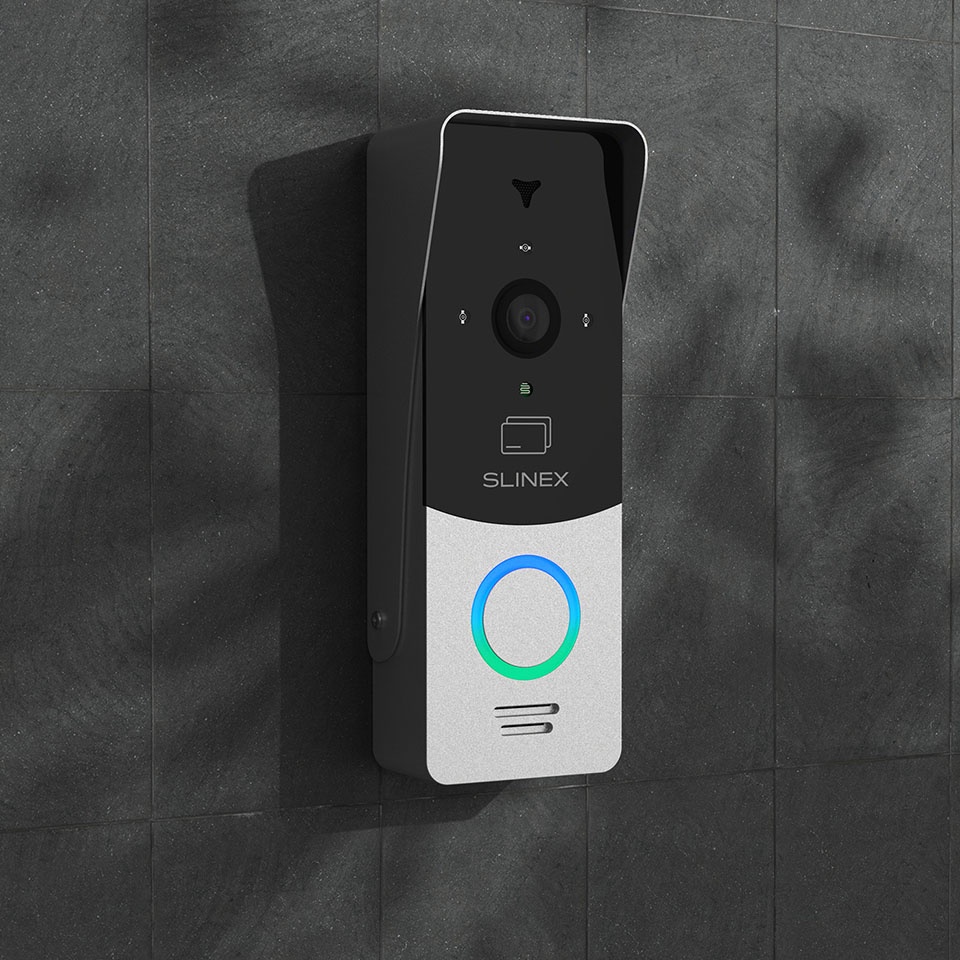

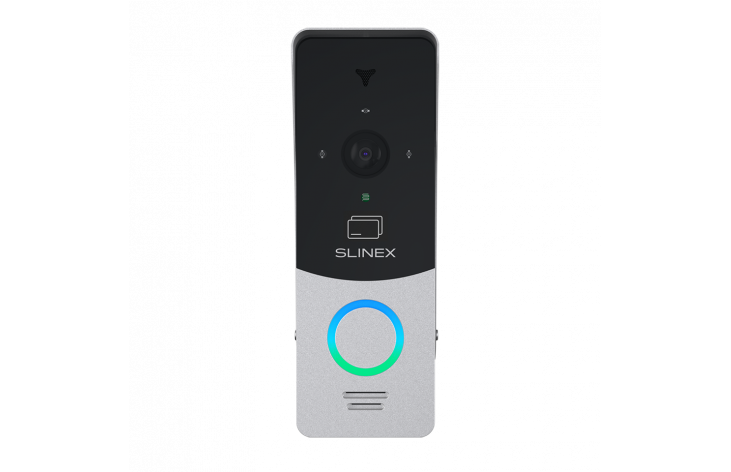

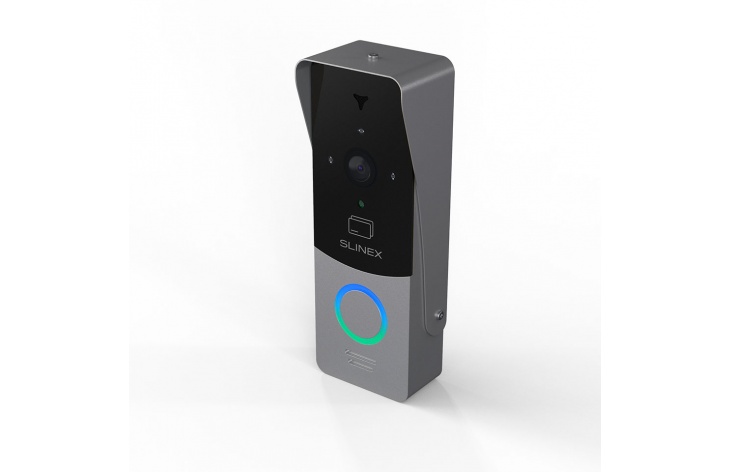

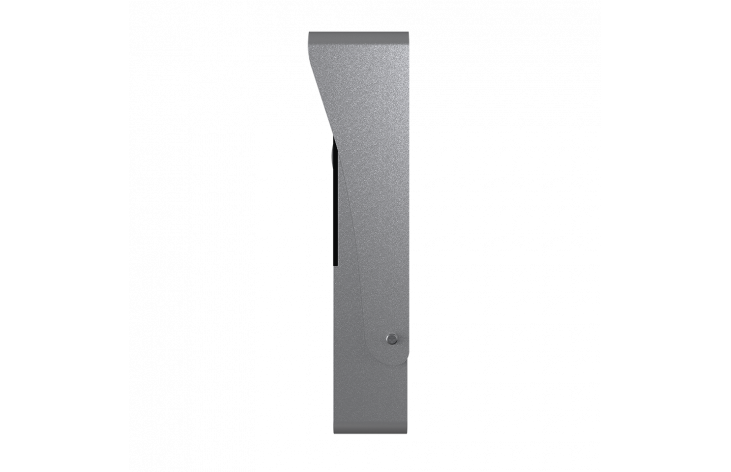

Slinex ML-20CR is the panel with a built-in proximity card reader and a unique design that effectively distinguishes this panel among all the others.

ML-20CR panel can store up to 248 cardholder Em-Marin cards to the protected internal memory. Support for both CVBS and AHD formats makes it unique in its kind. When you connect the panel to the DVR or video intercom with the function of recording by motion, the recording will be performed continuously or by motion detection.

In addition, ML-20CR is characterized by improved video performance that will delight lovers of high-quality images.

Horizontal viewing angle


Camera resolution

1 MP (AHD) / 960 TVL (CVBS)

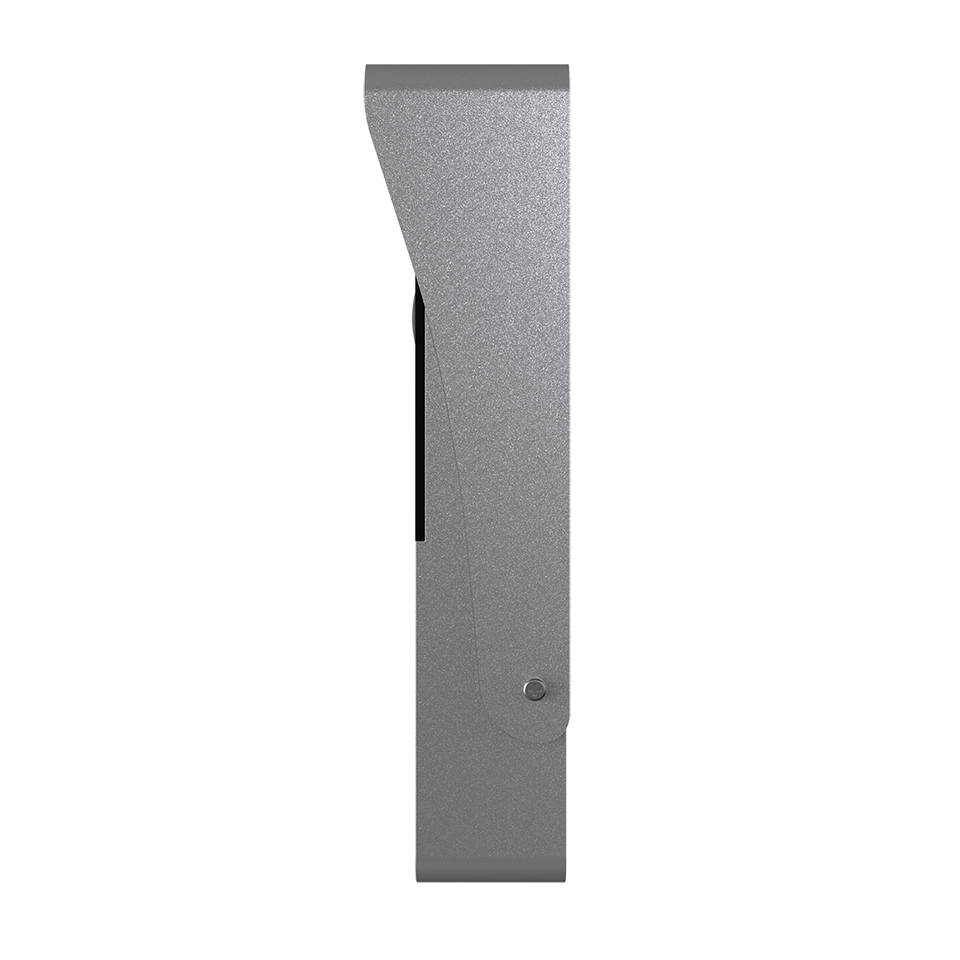

45×130×24 mm

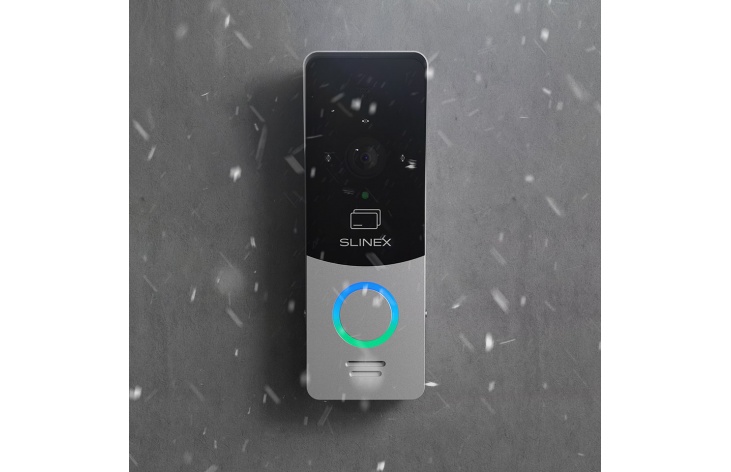

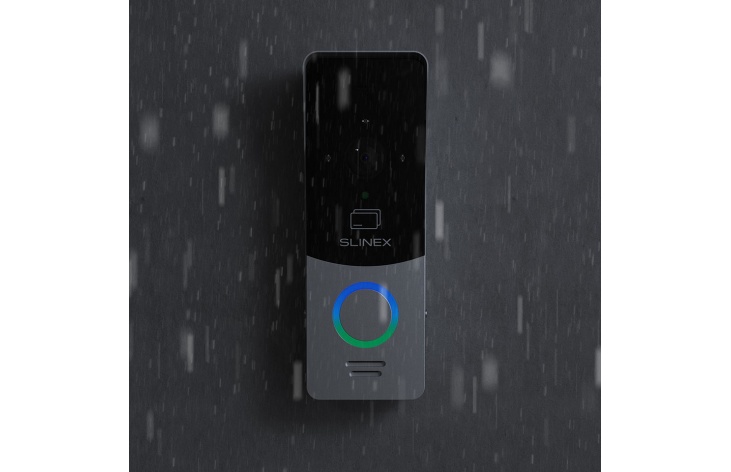

Operating temperature

-40 – +50 °С


Unique features
• Supports both AHD and CVBS
• Sensor type call button
• Access control - card reader EM-Marin
Type of sensor
1/4" CMOS
Night backlight
IR LED, up to 1.5 m
Minimal illumination
0,01 Lux

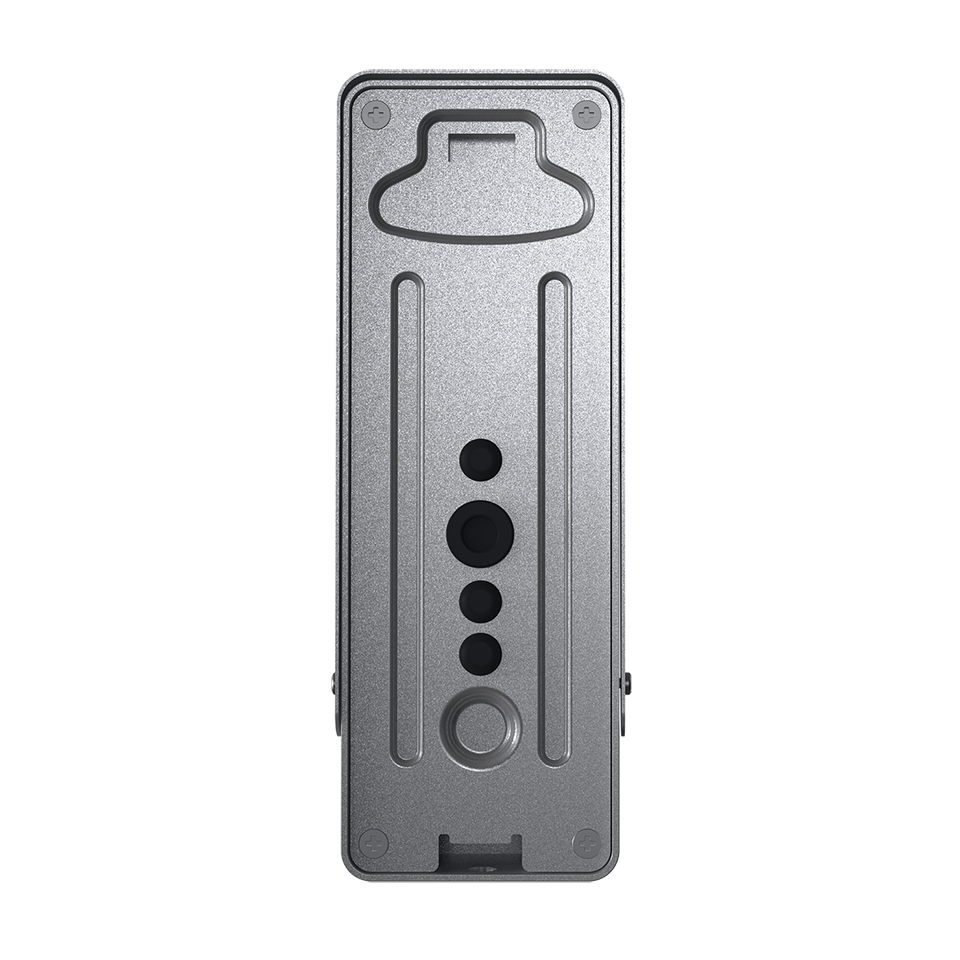

Body structure
Metal alloy
