Description

Acquaintance

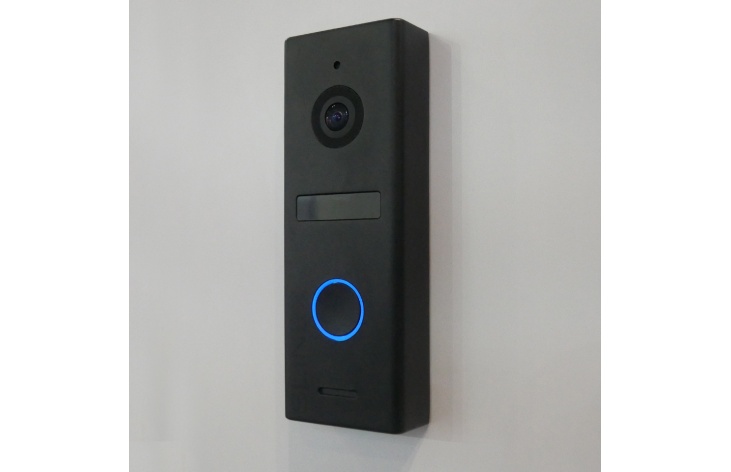

ML-17HD is the implementation of a fresh look at analog outdoor panels. Vandal-proof housing, full-size lens with an incredible viewing angle of 130°, support AHD/CVBS standards, work with electromechanical and support for electromagnetic locks. ML-17HD is ready to surprise you!



Where it can be used

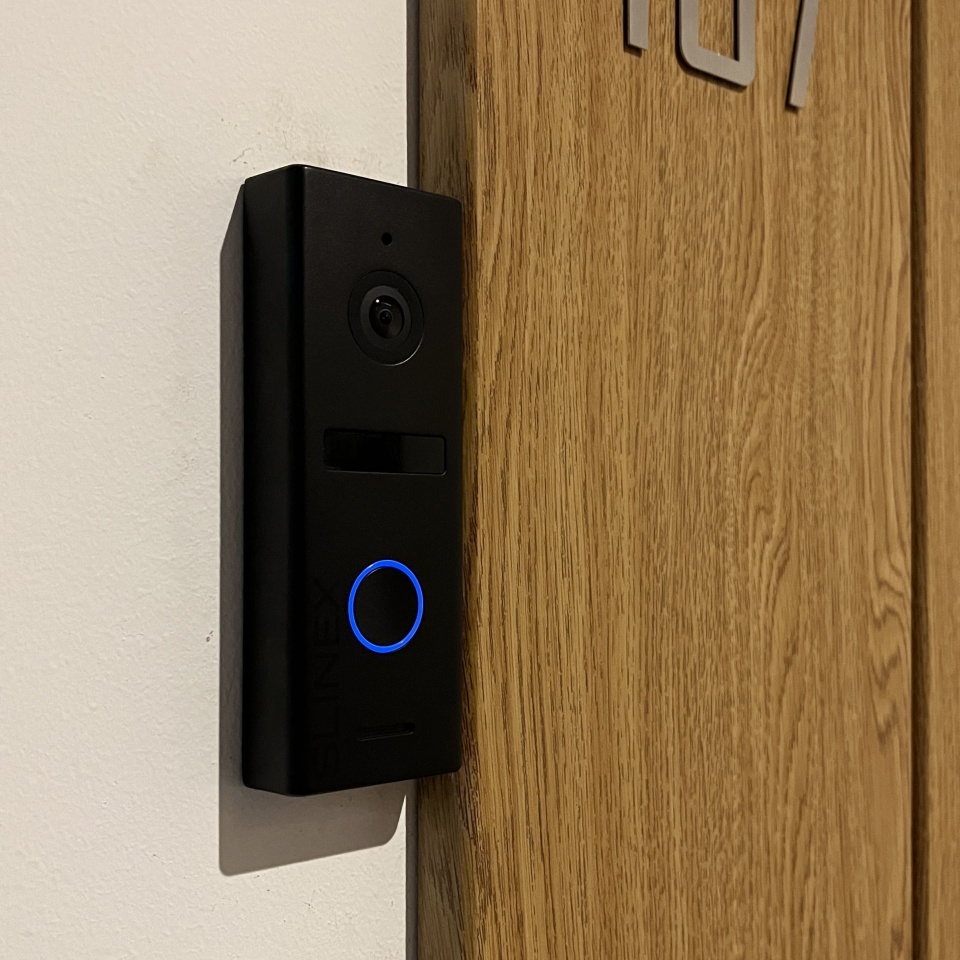

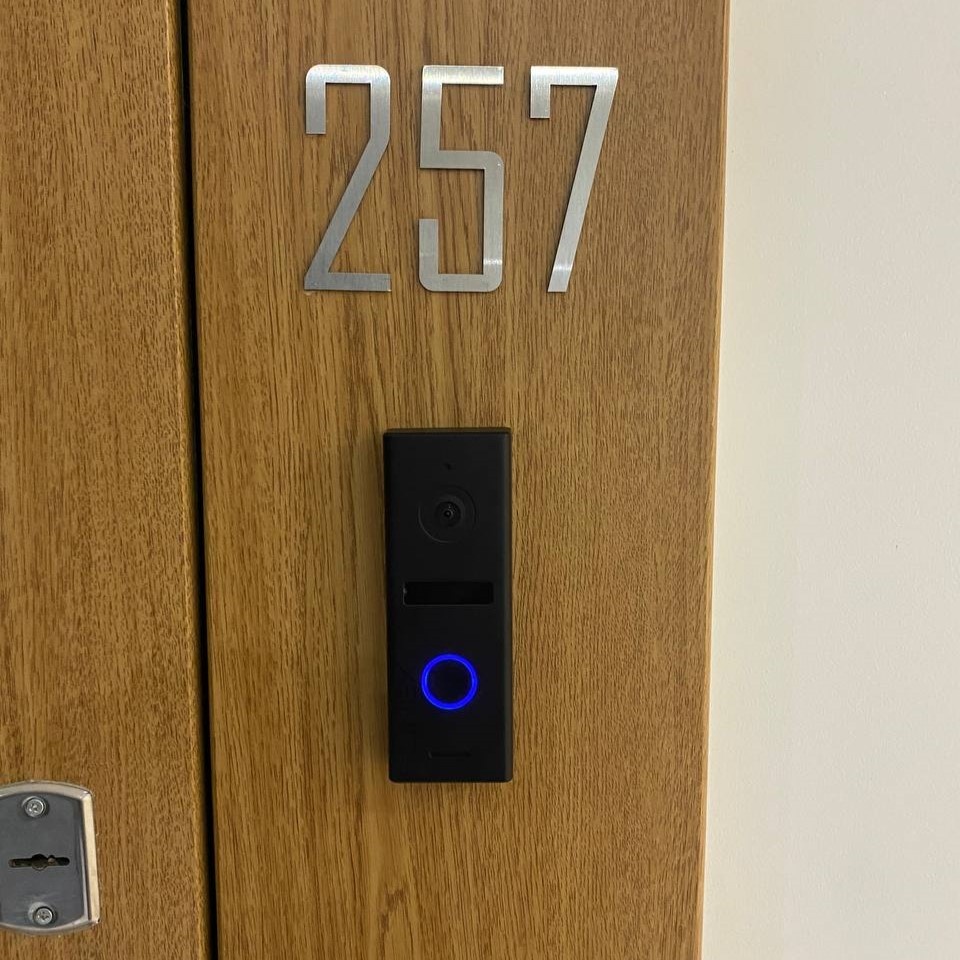

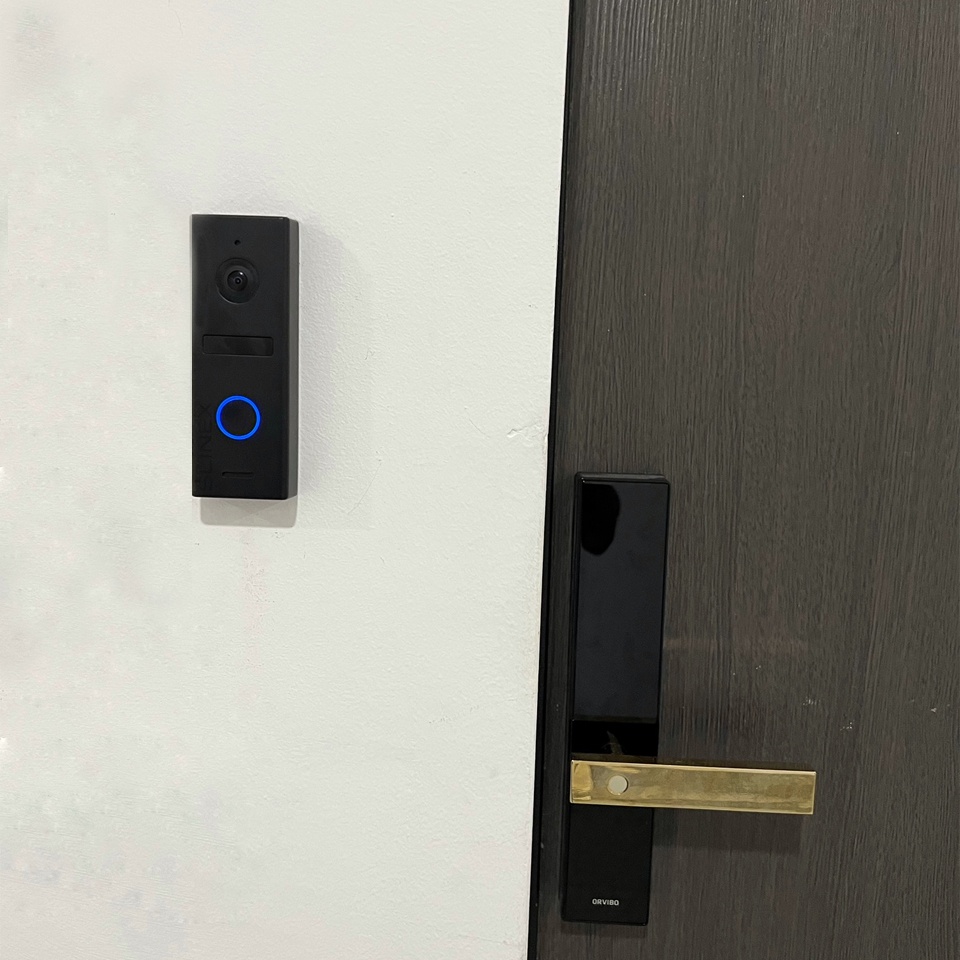

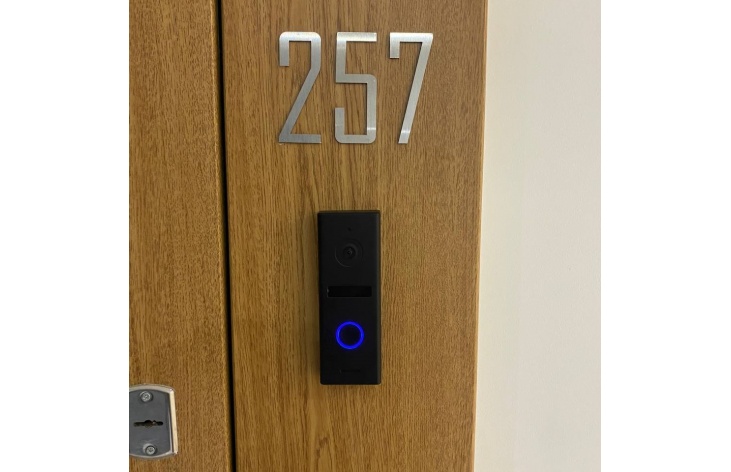

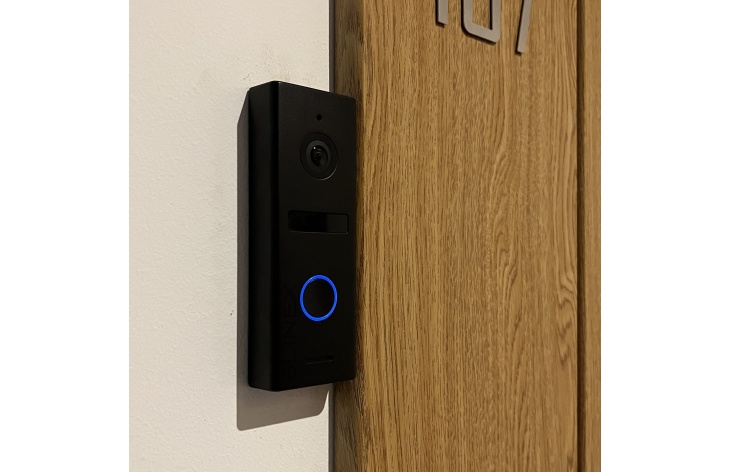

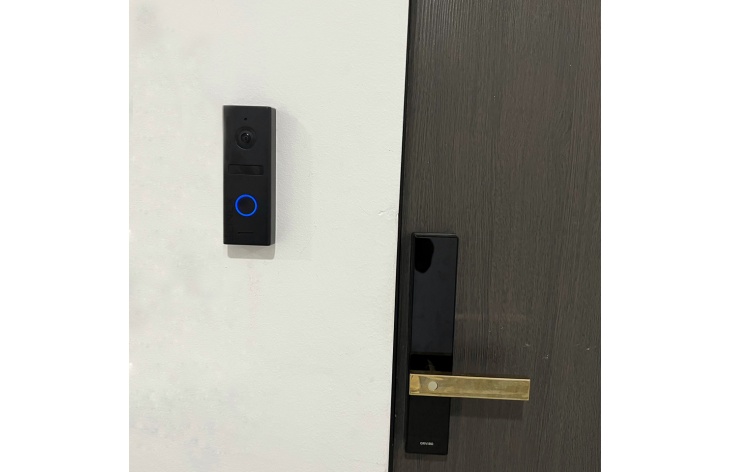

The model is versatile and easy to operate, suitable for absolutely all types of buildings, for installation both indoors and outdoors. ML-17HD is an individual outdoor panel, so it can be installed at the entrance to the office, in the common corridor or at the door to the apartment.



The panel features

In Slinex ML-17HD, support for electromagnetic locks was added to the usual electromechanical support. How is this useful? Electromagnetic locks are most often used in office centers, shops, pharmacies and many other institutions and now these locks can be controlled using the Slinex ML-17HD call panel.



The relay power has increased from 1 A to as much as 6 A, which allows you to control not only ordinary doors or a gate, but also large garage doors. The ML-17HD panel can be powered by an external power supply to connect it to a DVR or video intercom with recording capability.

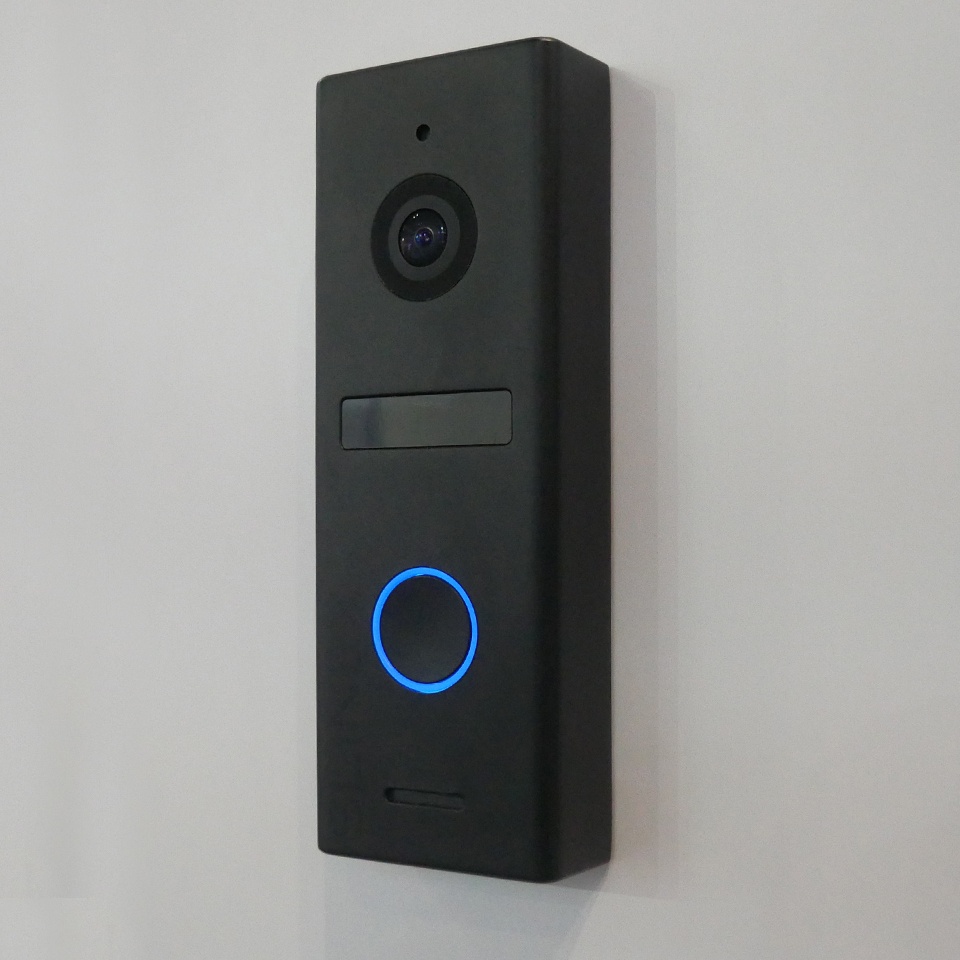

The panel also has IR backlight to provide a high-quality image at night, and a button backlight to illuminate the button area.

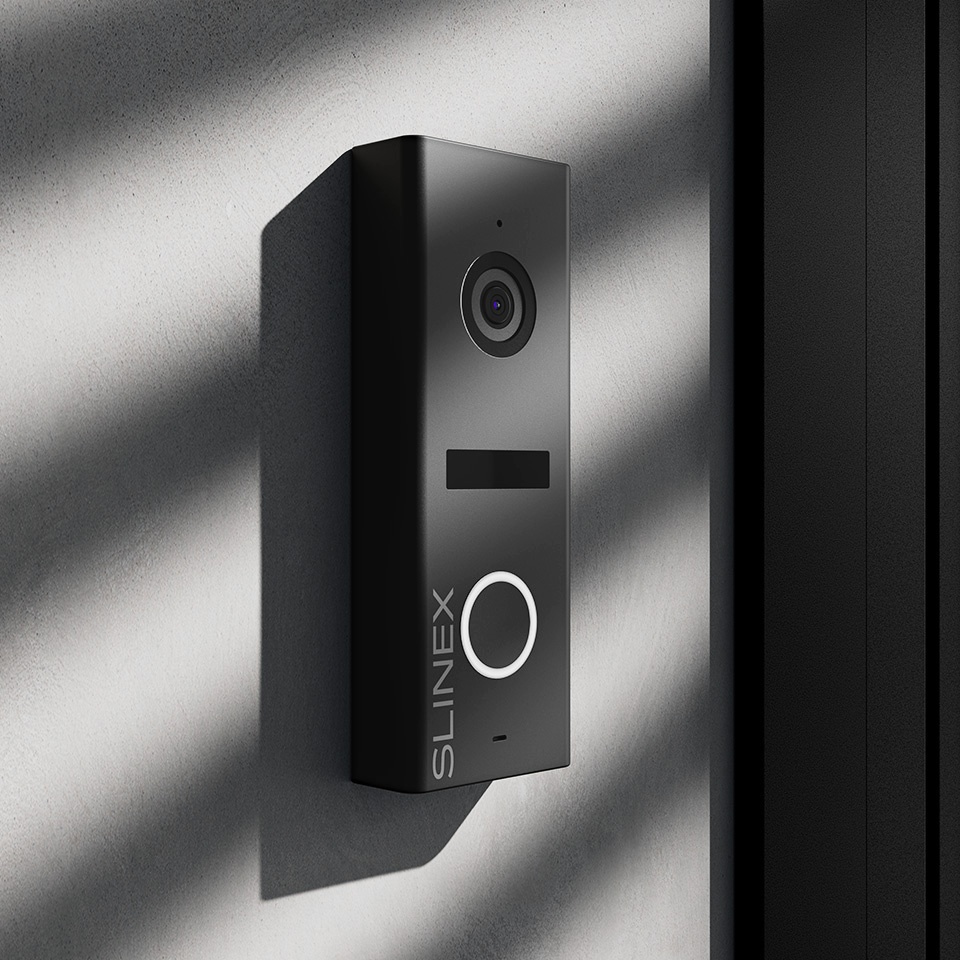

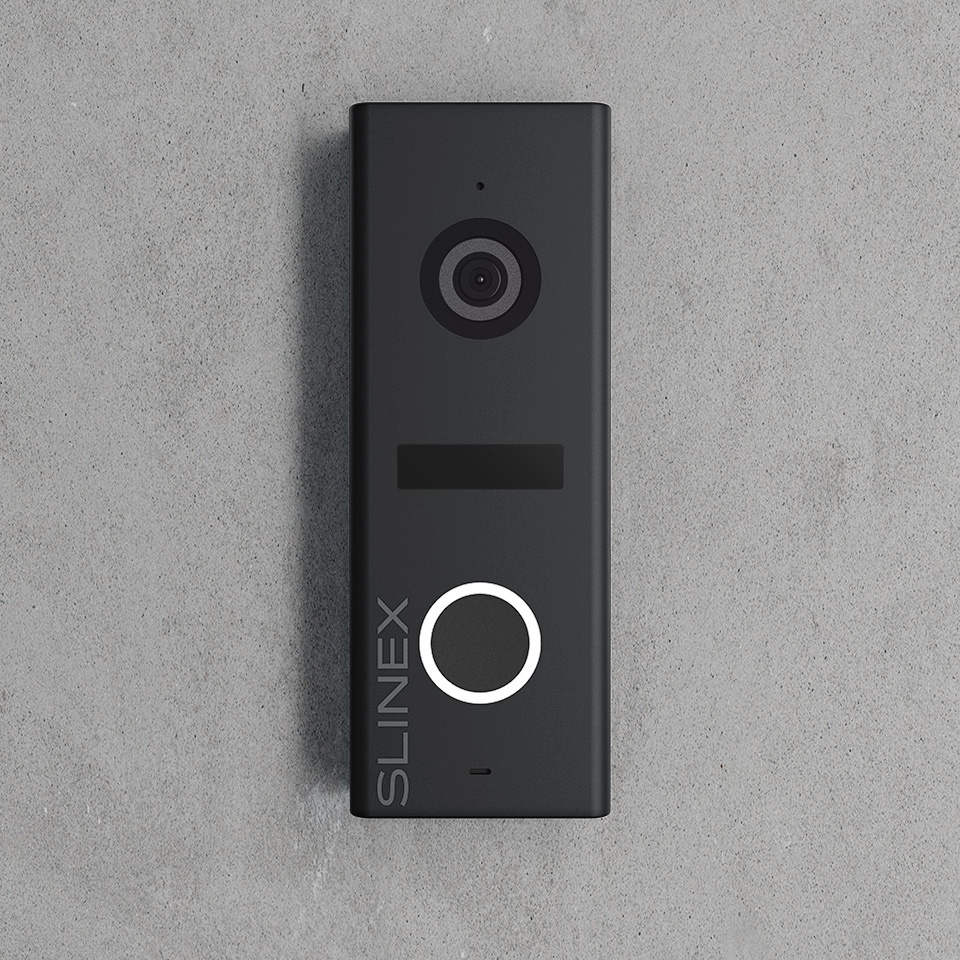

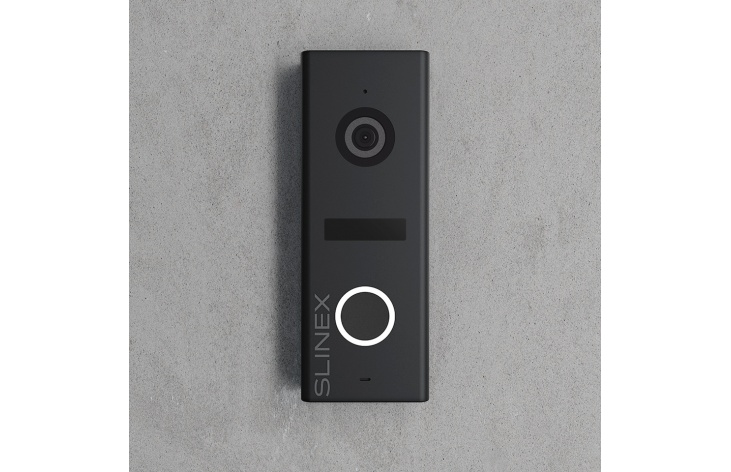

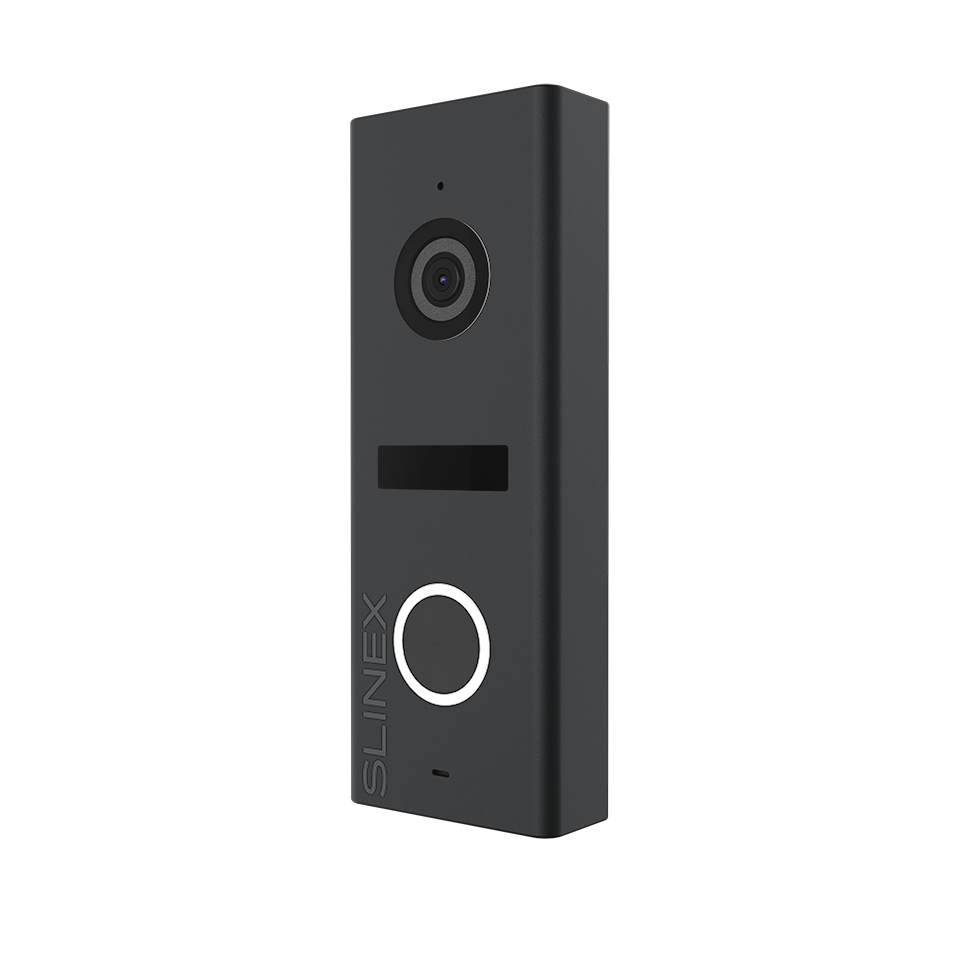

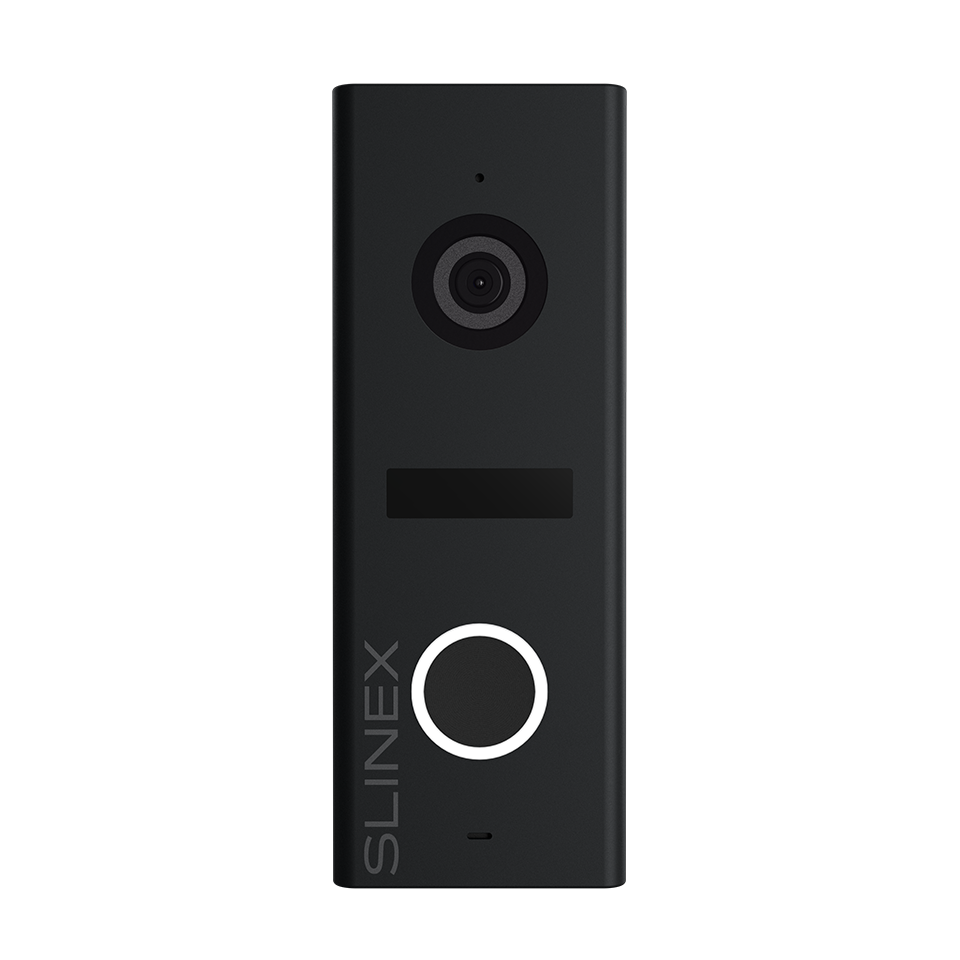

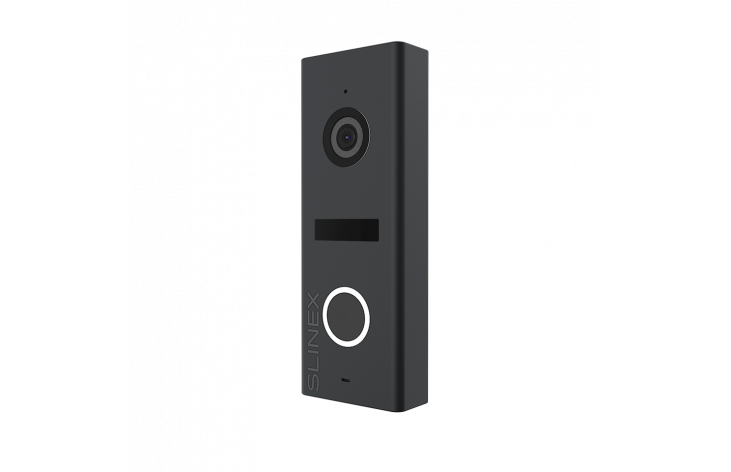

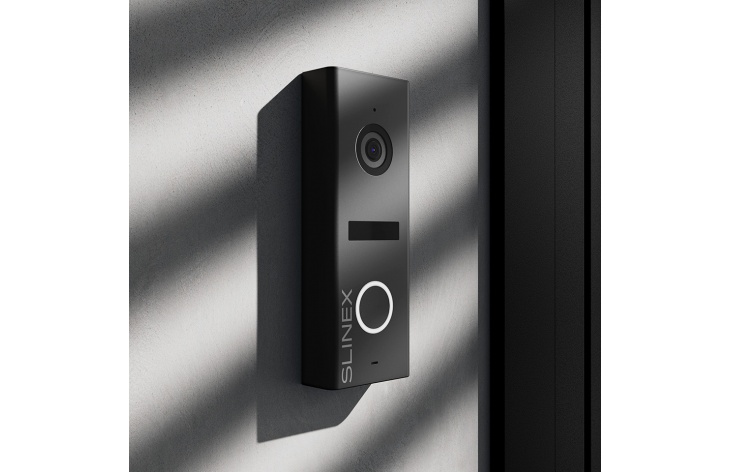

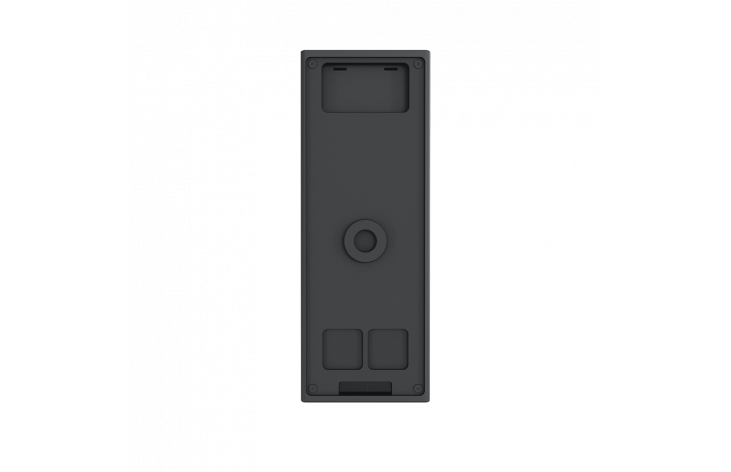

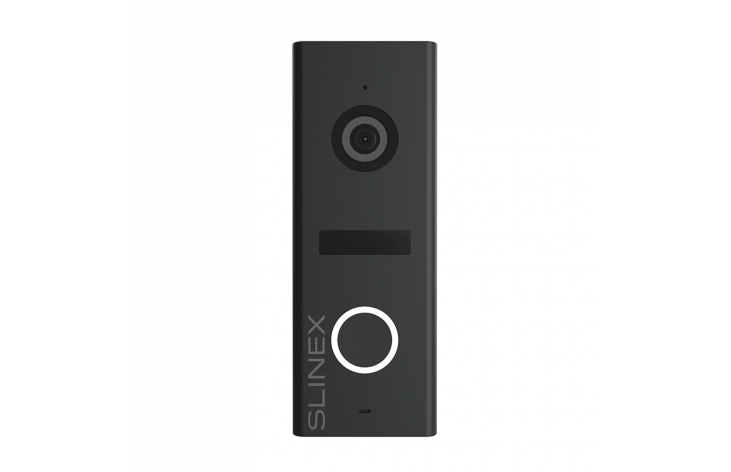

Appearance and camera

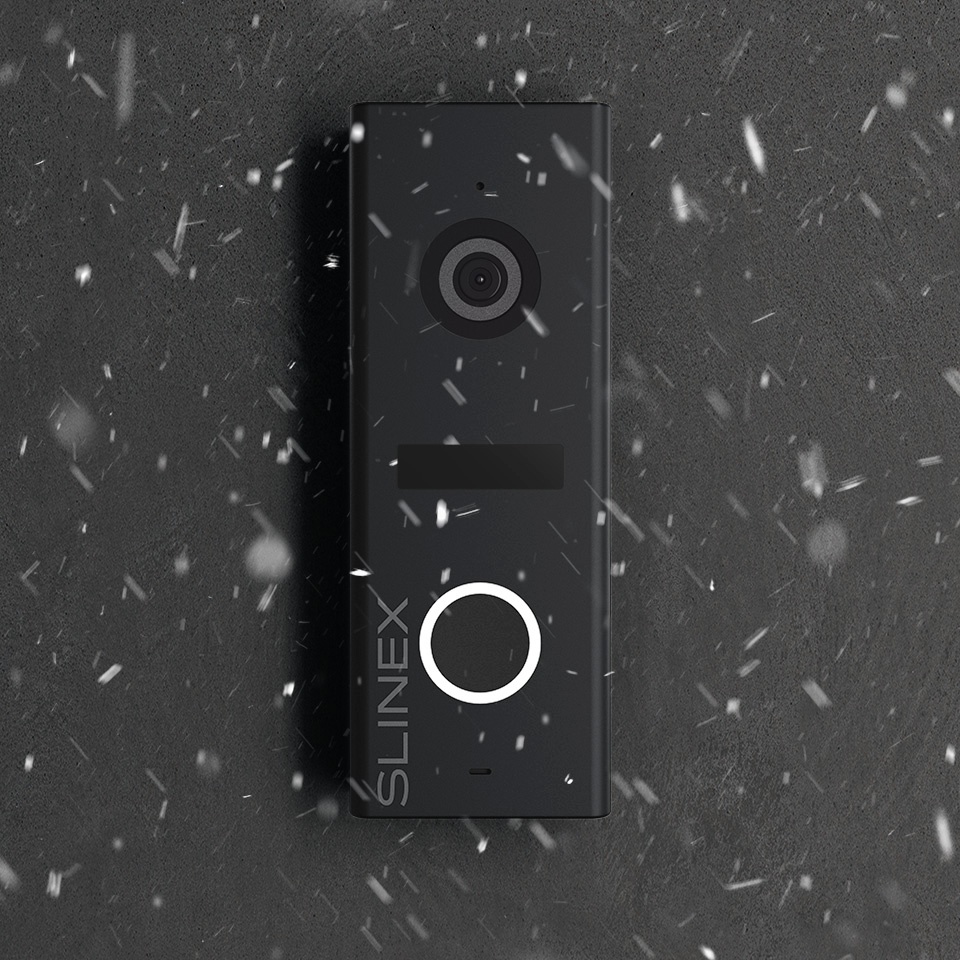

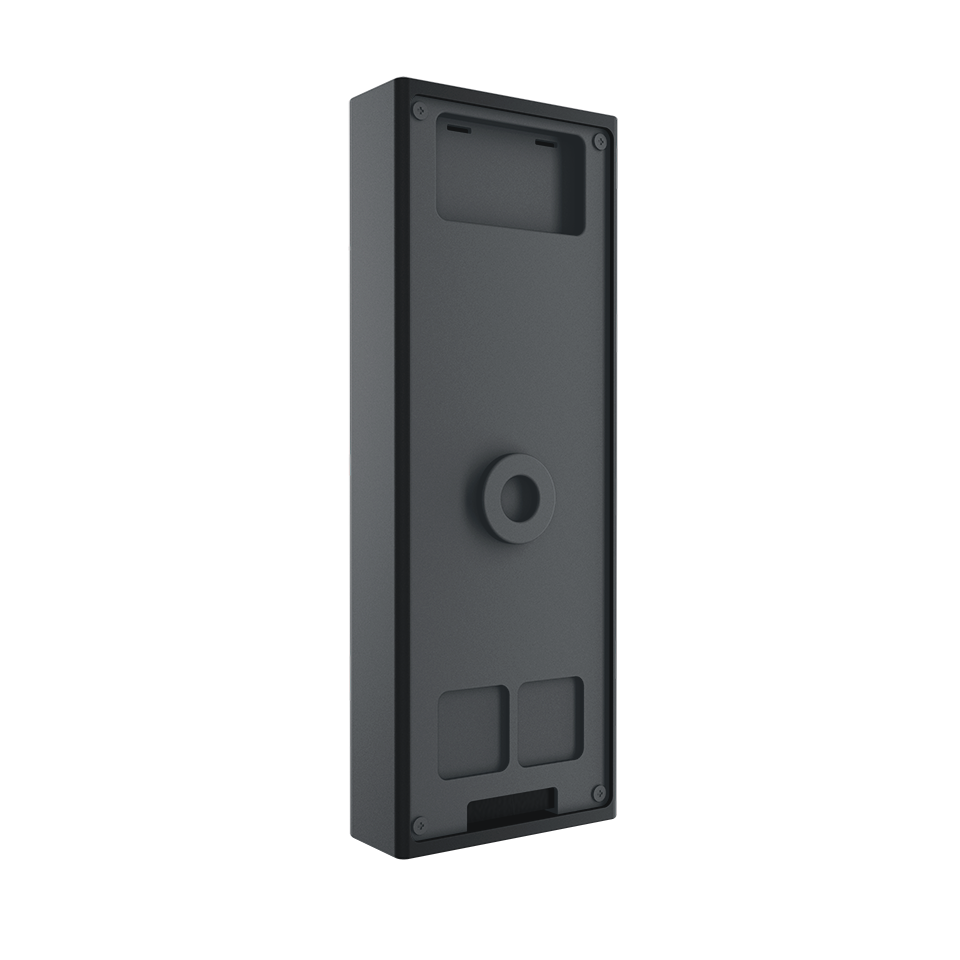

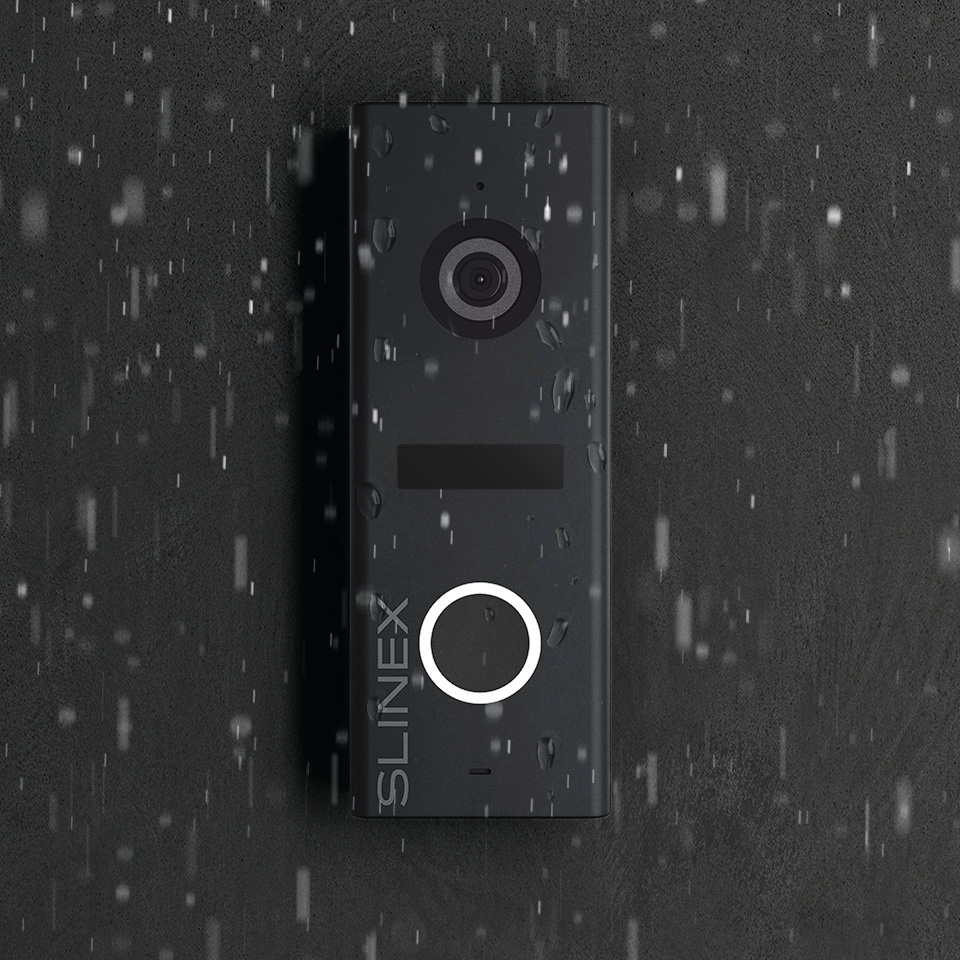

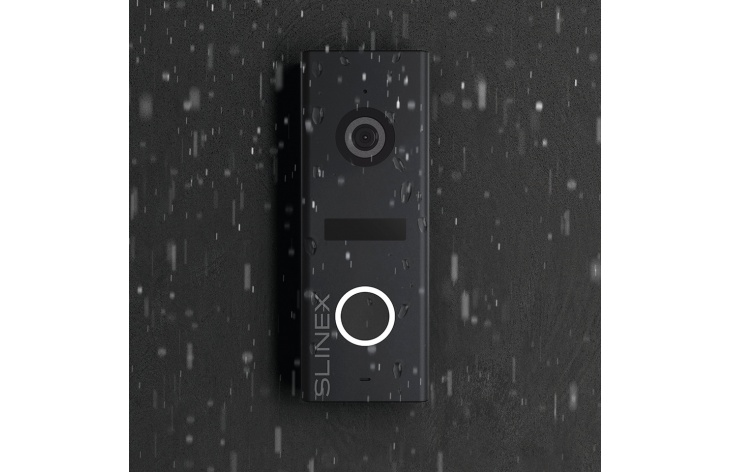

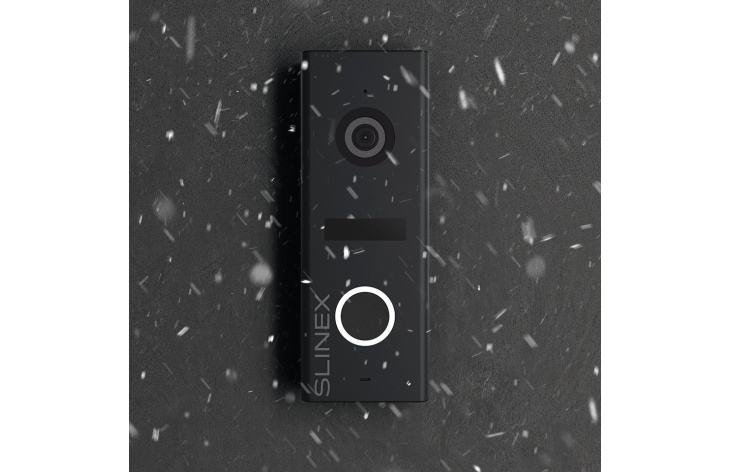

The ML-17HD case has been completely designed to provide protection from precipitation of any intensity and guarantee 100% tightness. Panel is not afraid of direct jets of water, gusts of wind with dust and other particles. IP65 protection class, operates at a temperature range from -40 up to +65°С.



As the camera supporting AHD and has a mechanical IR-cut filter, the user gets an image with an improved color rendition and deep image detail. Thanks to camera mode switch button (AHD-H, AHD-M, CVBS), ML-17HD can be connected to a large list of analog intercoms.

Full description Hide
Horizontal viewing angle

130º

Camera resolution

• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)

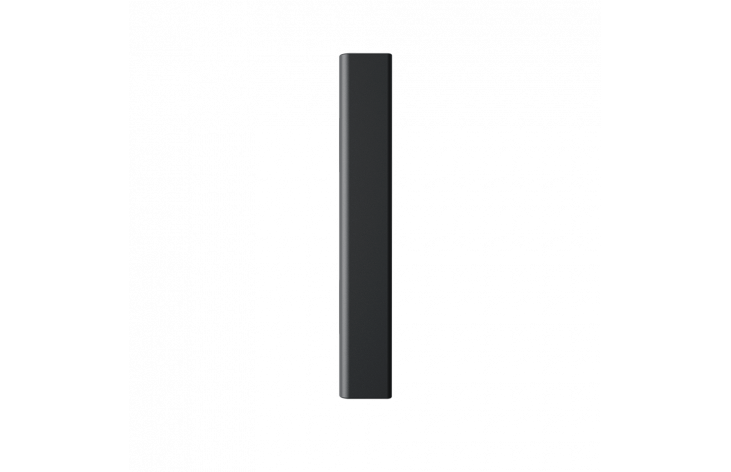

Dimensions

48×133×21 mm

Operating temperature

-40 – +50°С

Characteristics

Device type
Individual outdoor panel
Unique features
• Camera operation modes switcher (AHD-H, AHD-M, CVBS)
• Mechanical and magnetic type of locks support
• Increased relay power (Up to 6 A)
• Mechanical IR cut filter
• Backlight of the button
• Output of signal on the DVR for recording on motion
Type of sensor
1/2.9” CMOS
Night backlight
IR LED, up to 1.5 m
Minimal illumination
0,01 Lux
