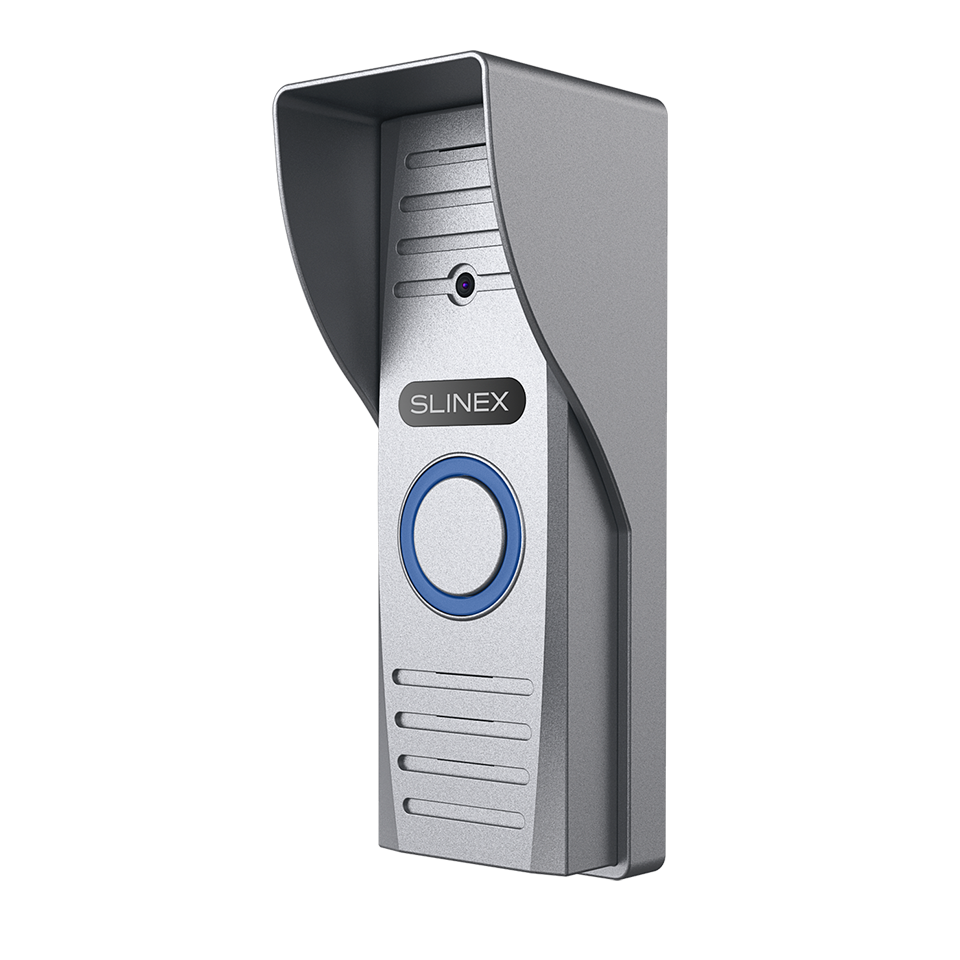

Slinex ML-15HD
Outdoor panel with output of signal on the DVR for recording on motion and AHD
- Resolution 2 MP (AHD) / 1 MP (AHD) / 960 TVL (CVBS)
- The backlight of the button
- Mechanical IR cut filter
Slinex ML-15HD
Outdoor panel with output of signal on the DVR for recording on motion and AHD
- Resolution 2 MP (AHD) / 1 MP (AHD) / 960 TVL (CVBS)
- The backlight of the button
- Mechanical IR cut filter
Description
Acquaintance
The ML-15HD is an innovative outdoor panel designed for one subscriber, featuring a built-in 2 MP camera with a color CMOS matrix that supports AHD format. This provides an exceptional video signal and image transmission with no delay, making it a unique and valuable asset.
Where it can be used
This model is ideal for both indoor and outdoor installation, and its universal design means it is suitable for any building type. The ML-15HD panel can be installed at the office entrance, in the hallway, or at the apartment door as it is designed for a single subscriber.
The panel features
This model is ideal for both indoor and outdoor installation, and its The ML-15HD panel has a unique feature that sets it apart from other outdoor panels – it has a separate power supply for the video camera to connect to a DVR or video intercom with a recorder function. The panel is also equipped with IR backlighting for high-quality imaging at night and button backlighting to illuminate the button area.
Appearance and camera
The vandal-proof case of the ML-15HD outdoor panel is made of a durable metal alloy and has an IP65 protection class, indicating its resistance to dust and moisture. The device is capable of operating reliably in a temperature range of -40 up to +65°C.
The panel is available in 2 modern color solutions that perfectly complement various modern exteriors. The camera supporting AHD technology provides an image with improved color rendition and deep image detail, making it an excellent option for high-quality video communication. This panel is equipped with a camera mode switcher (AHD-H, AHD-M, CVBS), which makes it compatible with most video intercoms.
In conclusion, the ML-15HD is an innovative and versatile outdoor panel designed for one subscriber, with a unique feature set and a stylish design. Its advanced camera capabilities make it an excellent option for anyone looking for high-quality video communication.
Horizontal viewing angle
76º
Camera resolution
• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)
Dimensions
54×134×40 mm
Operating temperature
-40 – +65 °С
Characteristics
- Device type
- Individual outdoor panel
- Unique features
- • Camera operation modes switcher (AHD-H, AHD-M, CVBS)
• Mechanical IR cut filter
• Backlight of the button
• Output of signal on the DVR for recording on motion - Type of sensor
- 1/4” CMOS
- Night backlight
- IR LED, up to 1.5 m
- Minimal illumination
- 0,01 Lux
