First acquaintance

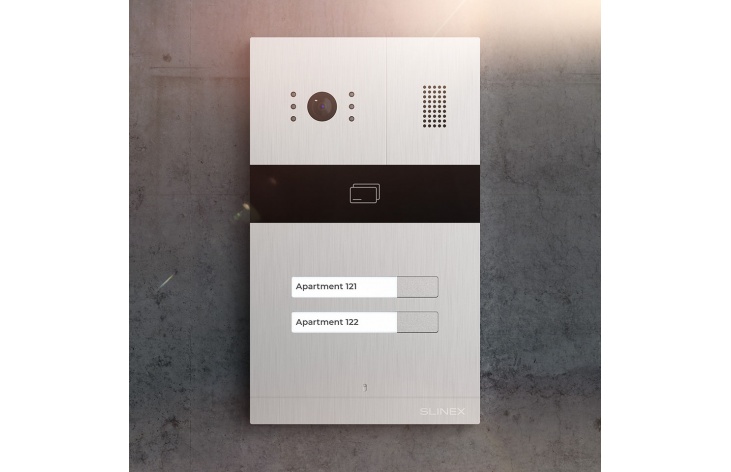

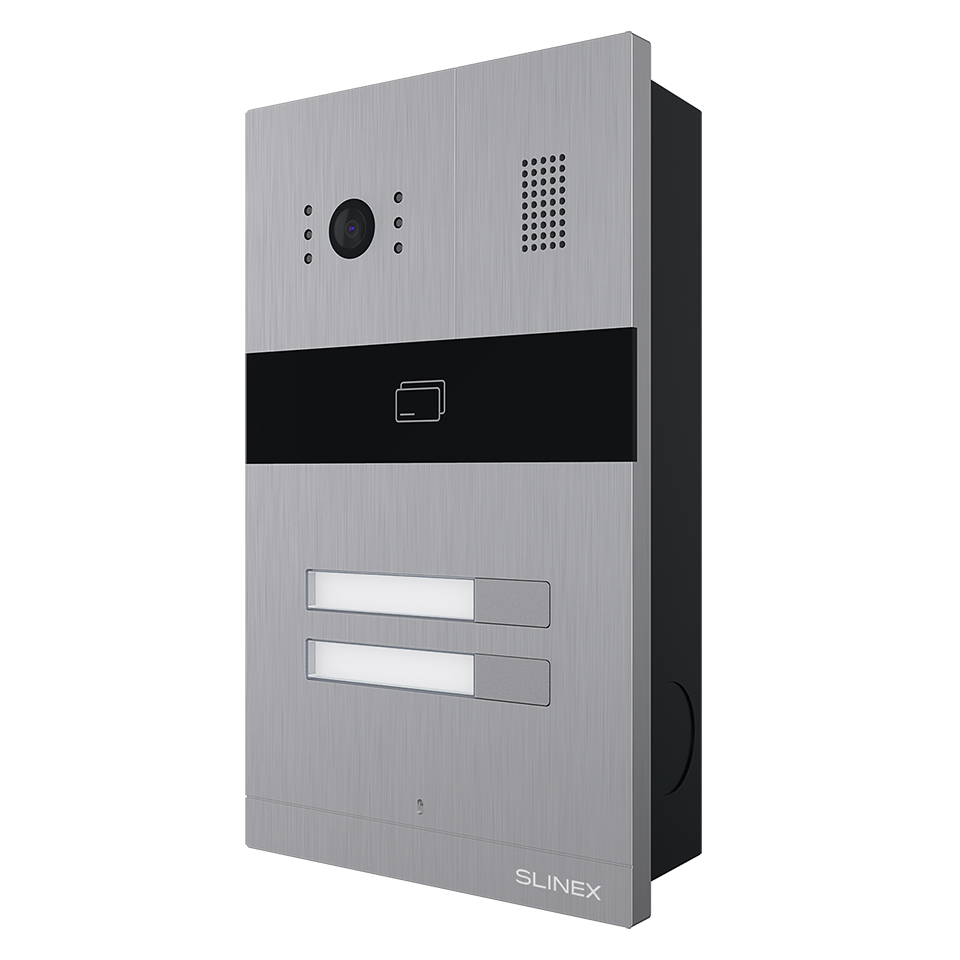

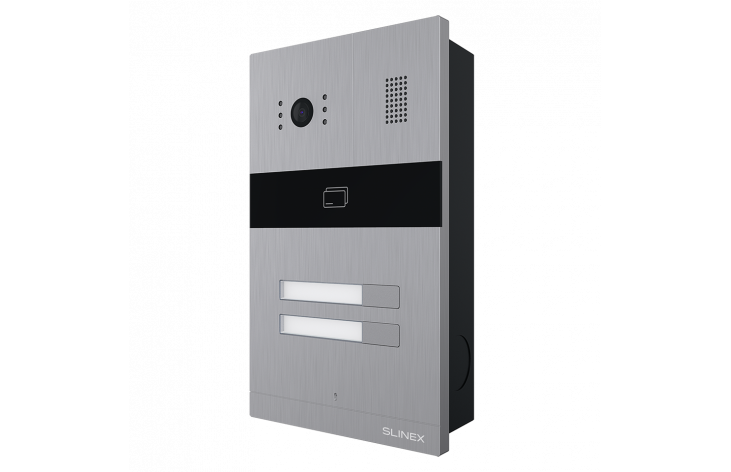

Slinex MA-02CRHD is an ultramodern 2-apartment outdoor panel with a sleek design. Among its advantages are a 2MP color camera, a built-in combined reader of contactless cards from EM-Marin, Mifare, a mechanical IR filter on 6 LEDs, and backlit nameplates. This outdoor panel stands out in terms of functionality and external parameters, surpassing the quality of outdoor panels of other manufacturers.


Where it can be used

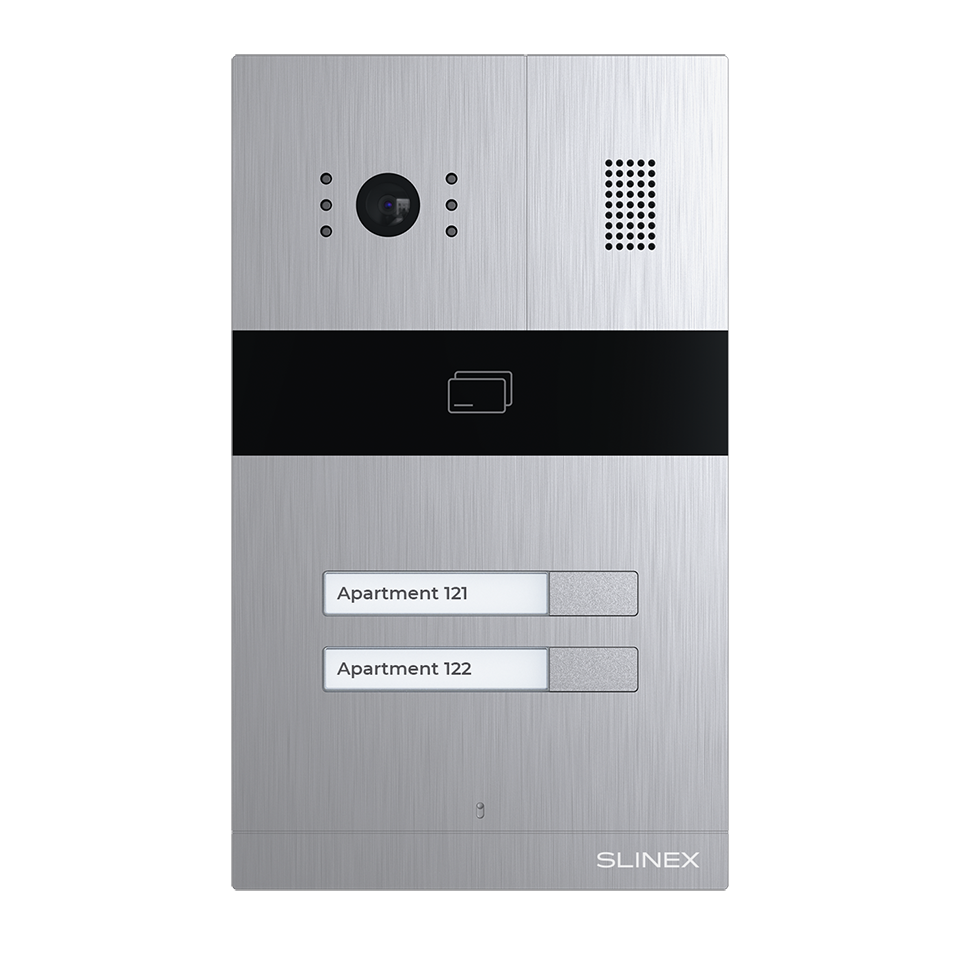

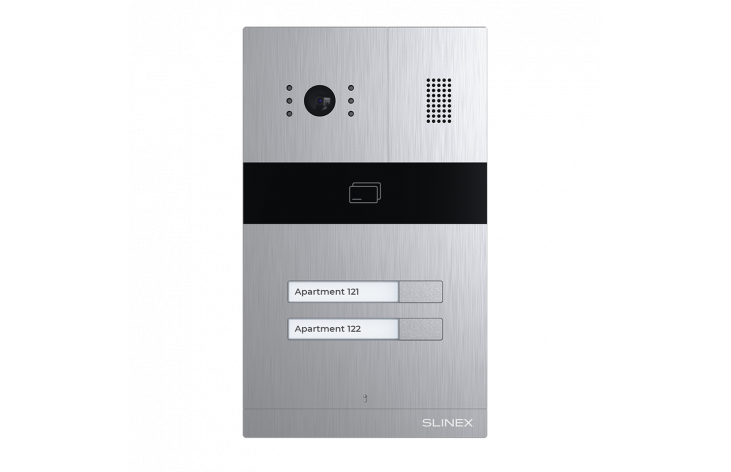

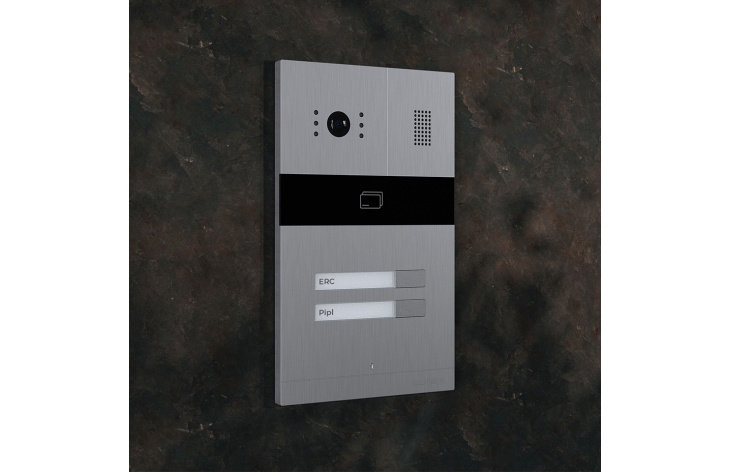

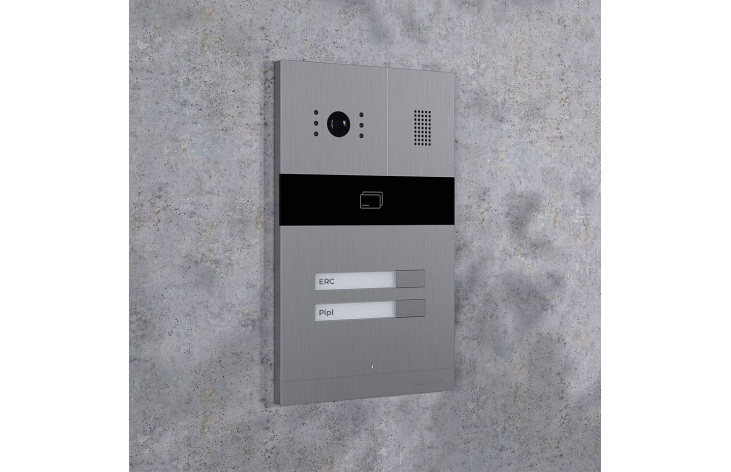

This device is ideal for installation in offices or buildings with a small number of apartments. This model can be a universal solution for installation on the floor of an office center that houses multiple offices. On special nameplates on the panel body, one can specify the apartment or office number, names of apartments or the name of the company. Thanks to the backlit nameplates, all information will be clearly visible, even in the dark. The outdoor panel can be flush-mounted both outside and inside. The panel dimensions are 110×185×34 mm, and the device works stably in a wide range of temperatures: from -40° to + 65°C.


Specifications of the model
The key feature of this model is the availability of a combined reader of contactless cards from EM-Marin, Mifare for controlled and safe access to premises. The internal memory is designed for up to 248 cards. The model impresses with the presence of a mechanical IR filter, which provides better visibility in the dark and enables you to get a better picture. As a result, identification of the visitor is much easier, not only during the daytime but also in the evening.


Appearance and camera

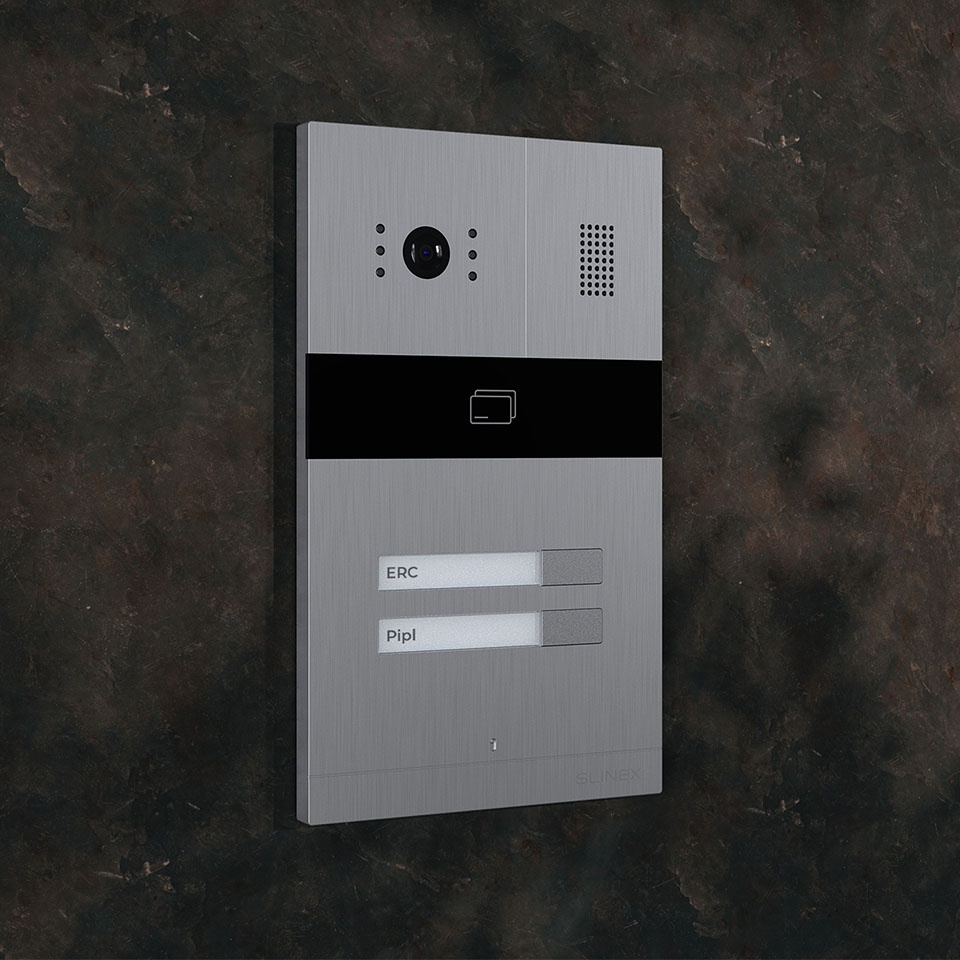

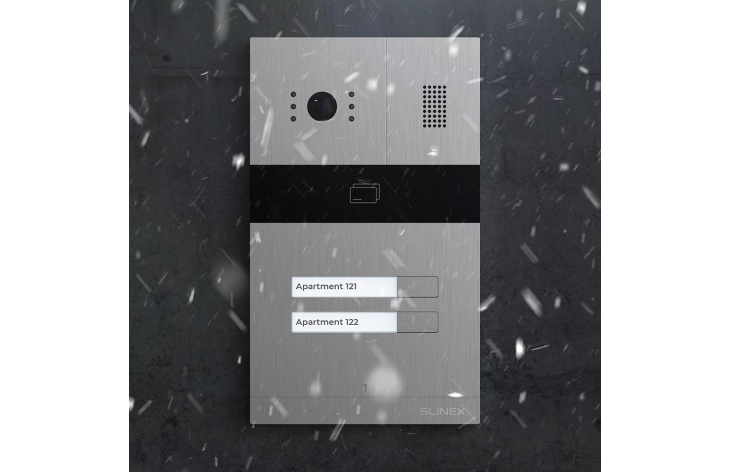

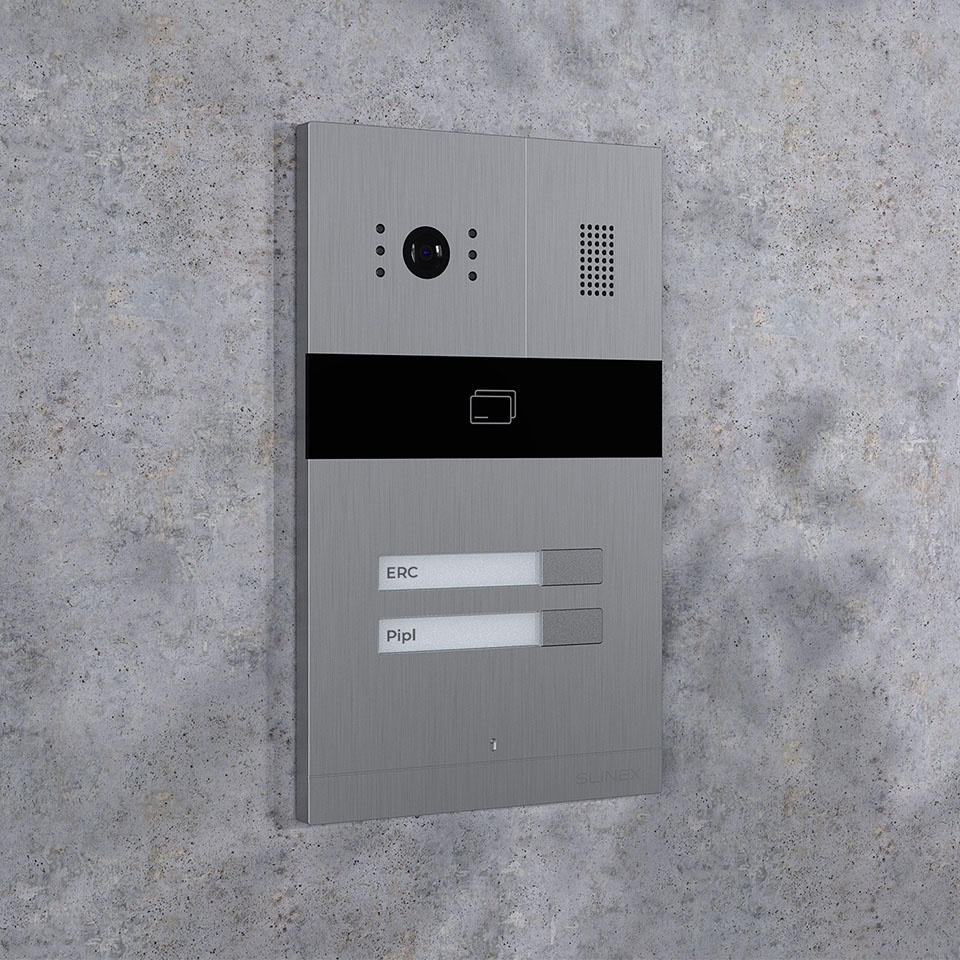

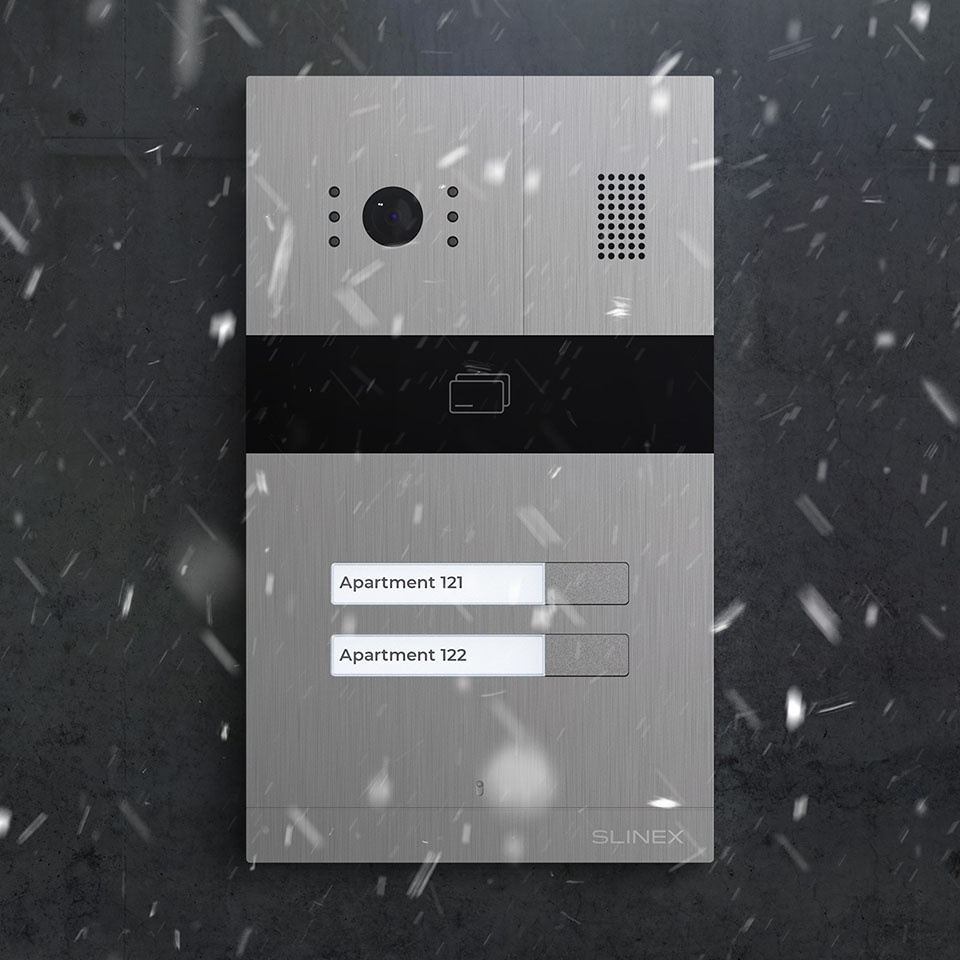

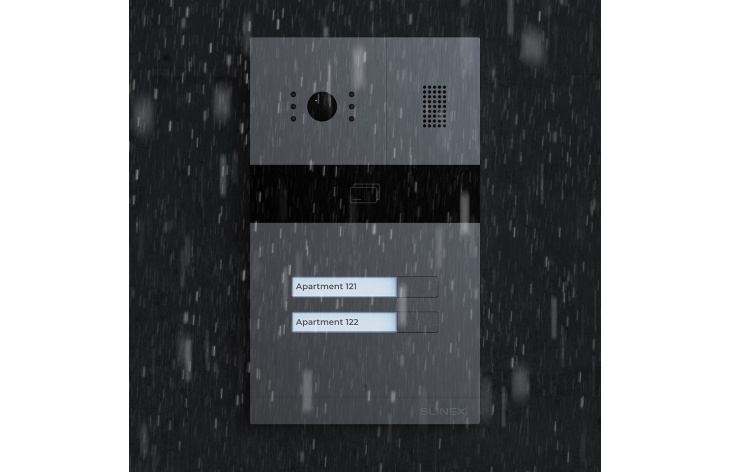

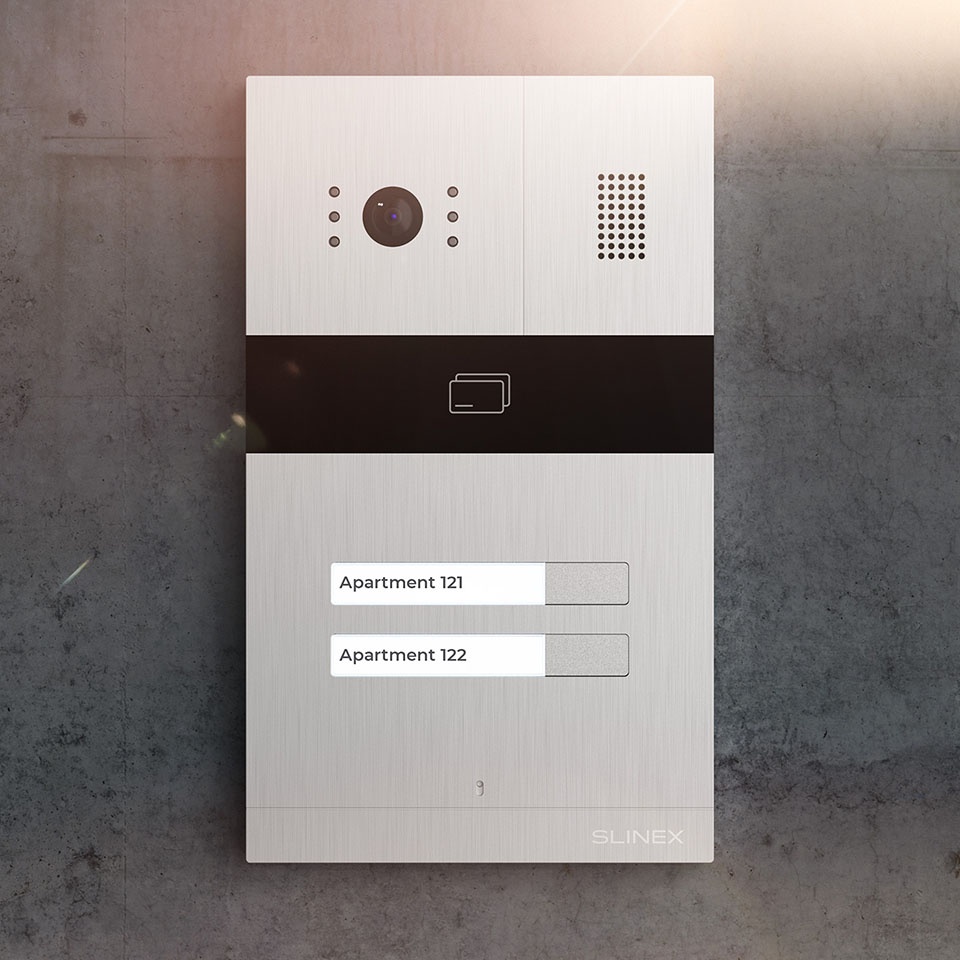

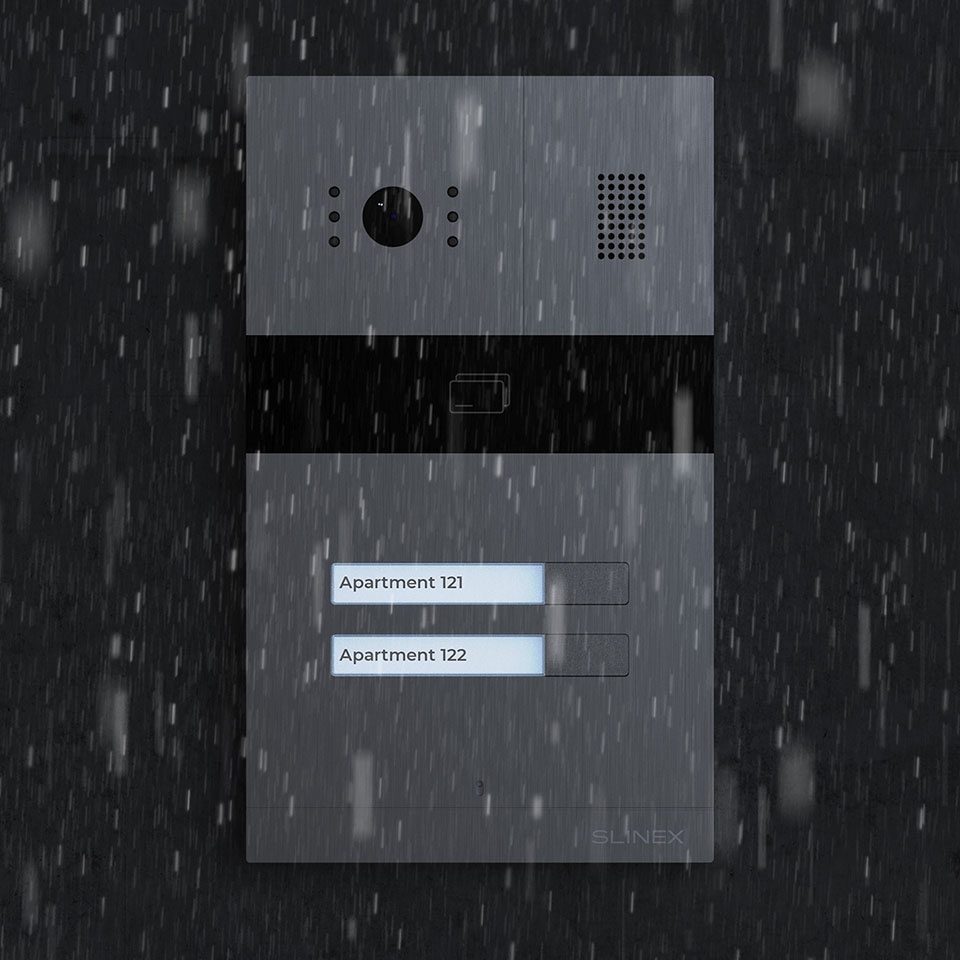

The MA-02CRHD body is made of brushed aluminum and has a special acrylic insert for the reader. The IP65 device protection class indicates the panel's stability to the effects of dust and moisture. The outdoor panel is available in one color – "silver," which is universally suitable for all building types. The panel is equipped with a Full HD camera with a 115° viewing angle. The camera allows you to get high-quality images and videos, which can be displayed on the internal monitor.


Interoperability with additional devices
The MA-02CRHD is interoperable with any 4-wire intercoms. To increase the number of apartments in the system, you can connect an additional MA-08 extension module for 8 apartments.


Slinex MA-02CRHD is a modern and stylish panel with high functionality. This outdoor panel is simple and convenient to use.

Full description Hide
Horizontal viewing angle


Camera resolution

• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)

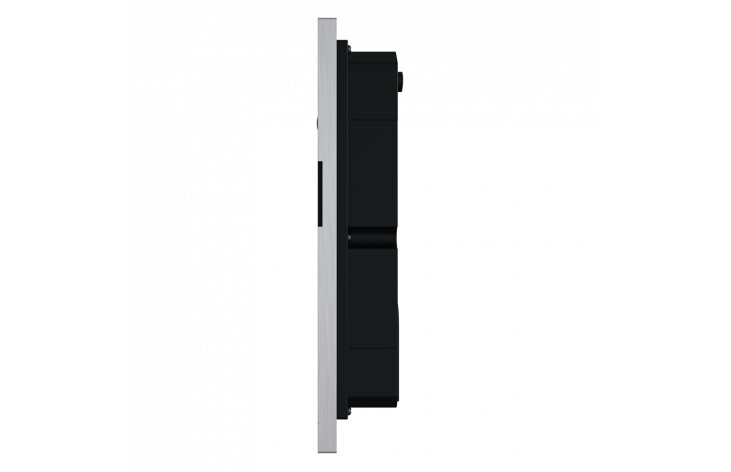

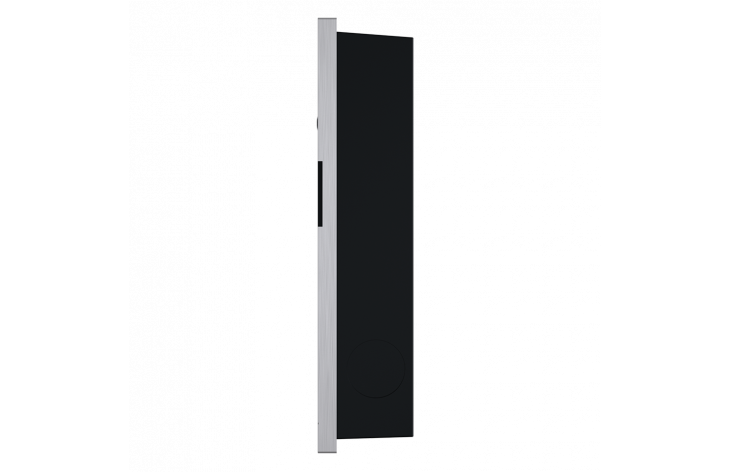

110×185×34 mm

Operating temperature

-40 – +65 °С


Device type
Outdoor panel for 2 subscribers
Unique features
• Combined EM-Marin / MIFARE reader
• Camera operation modes switcher (AHD-H, AHD-M, CVBS)
• Mechanical IR cut filter
• Wide-angle lens
• Nameplates backlight
• Support up to 2 MA-08 extensions (18 subscribers)
Type of sensor
1/2.9" CMOS
Cards type
Memory capacity
248 user cards
