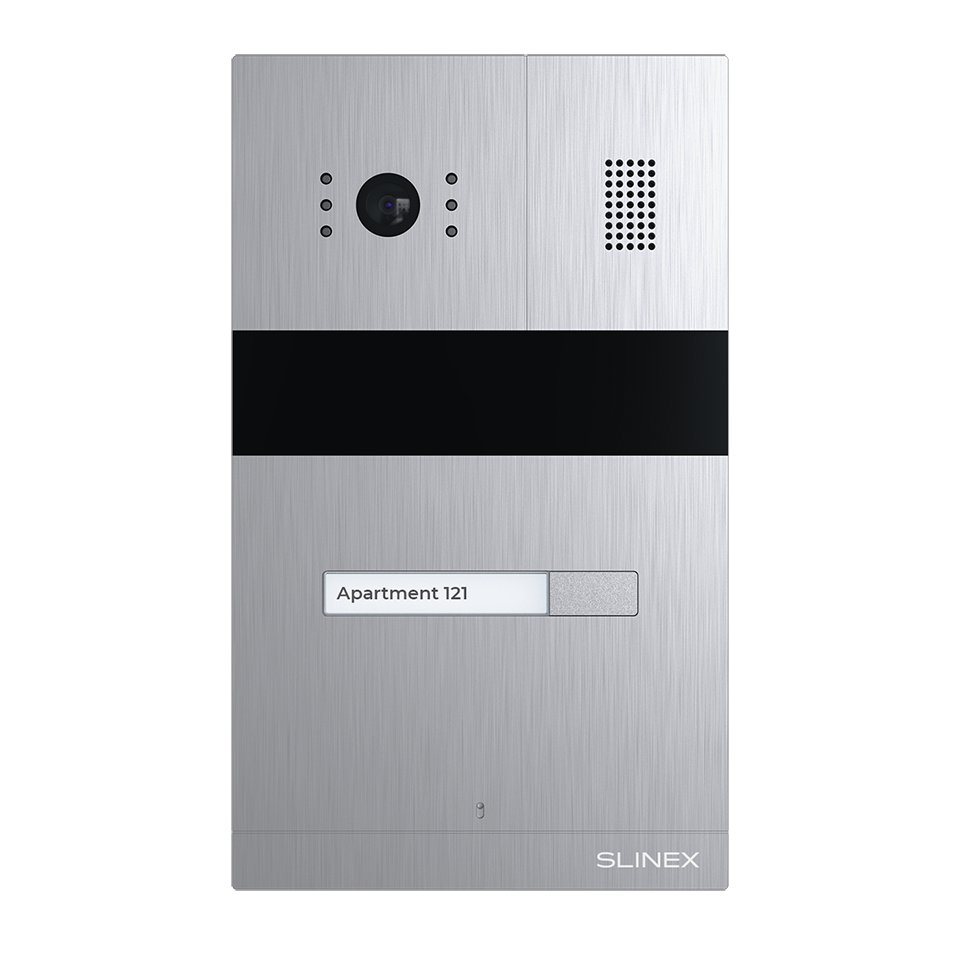

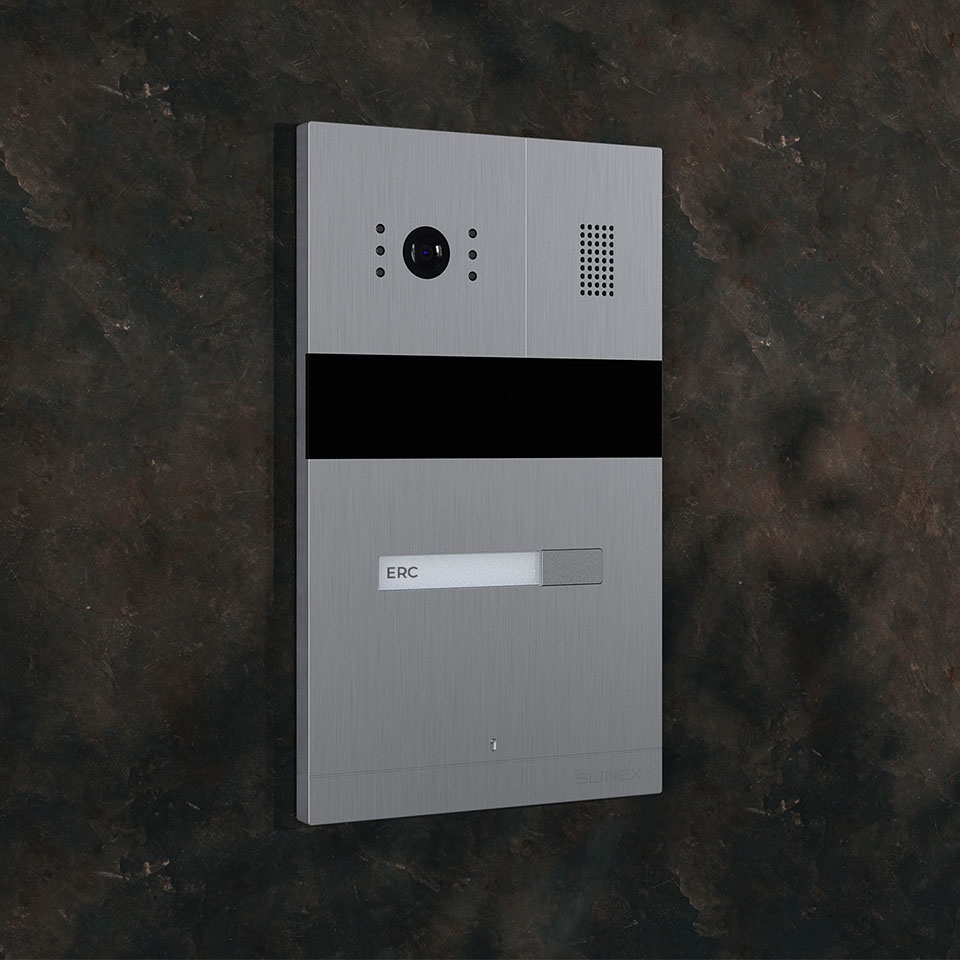

Slinex MA-01 is an individual outdoor panel with an ultramodern design. The panel has a lot of advantages, among them: a color CMOS camera with a resolution 2 Mp (AHD) / 1 Mp (AHD) / 960 TVL (CVBS), built-in combined reader of contactless cards from EM-Marin, Mifare/NFC, mechanical IR filter on 6 LEDs and backlit nameplates.
This panel has no equivalents in the modern market in terms of its functionality and external parameters. It far exceeds the quality of outdoor panels of other manufacturers.
Where it can be used

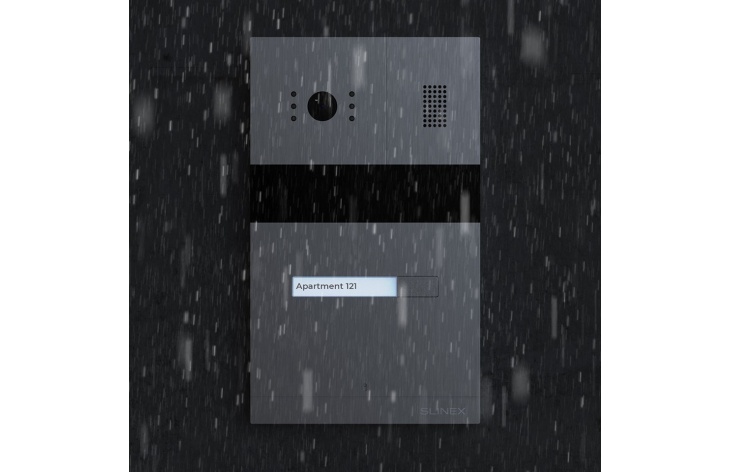

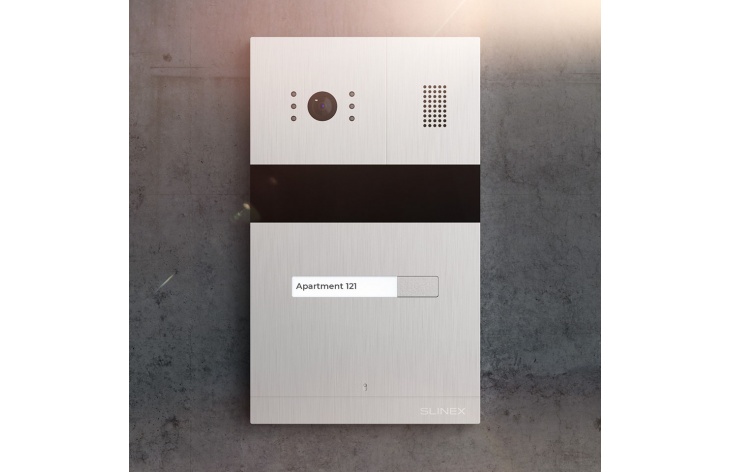

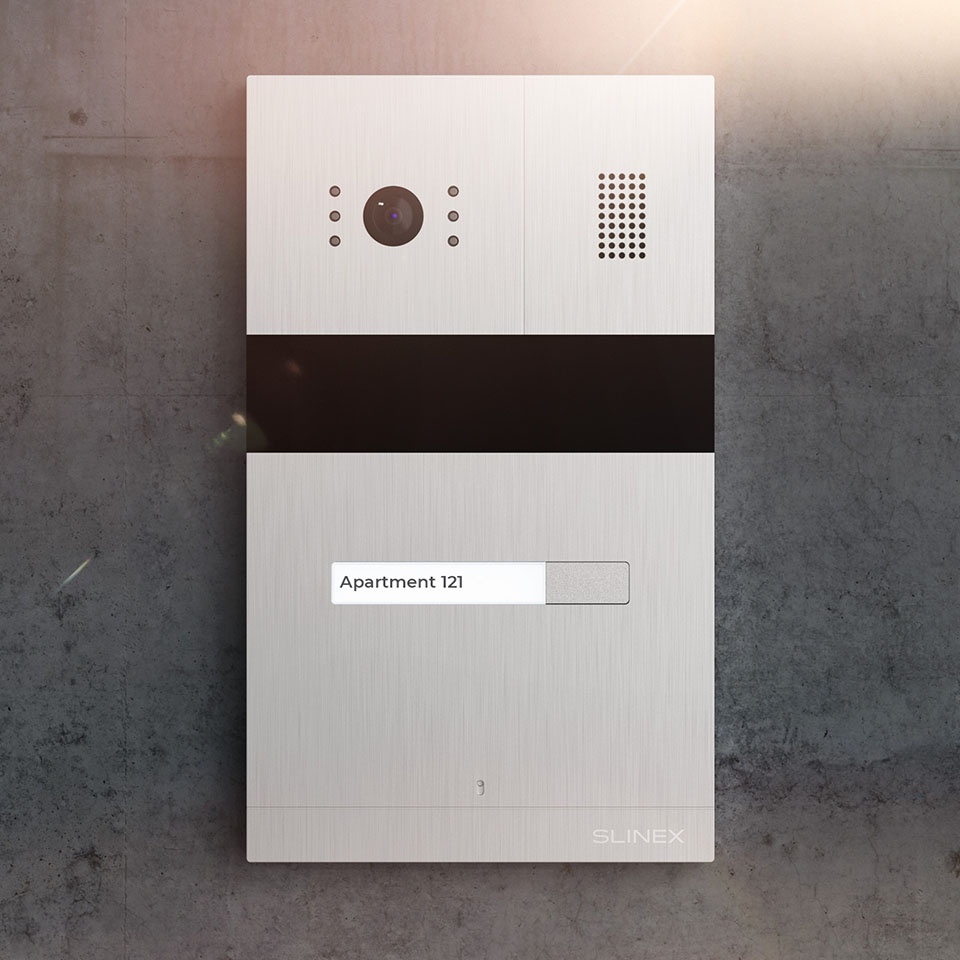

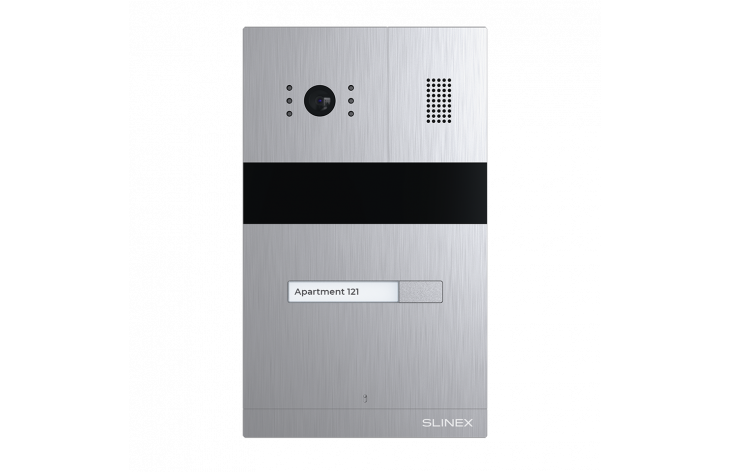

The device is ideal for installation in the office or in a building with a small number of apartments. This model will be a universal solution for installation on the floor of an office center which houses several offices. On special nameplates on the panel body it is possible to specify the number of an apartment, office, names of apartments or the name of the company, and thanks to backlit nameplates, all information will be clearly visible, even in the dark.

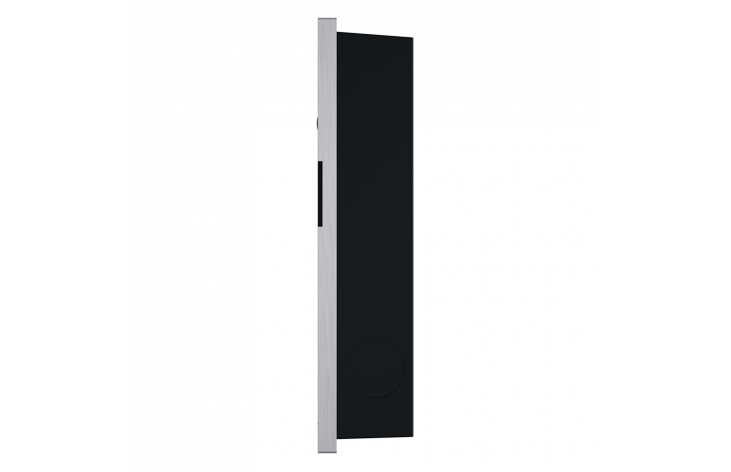

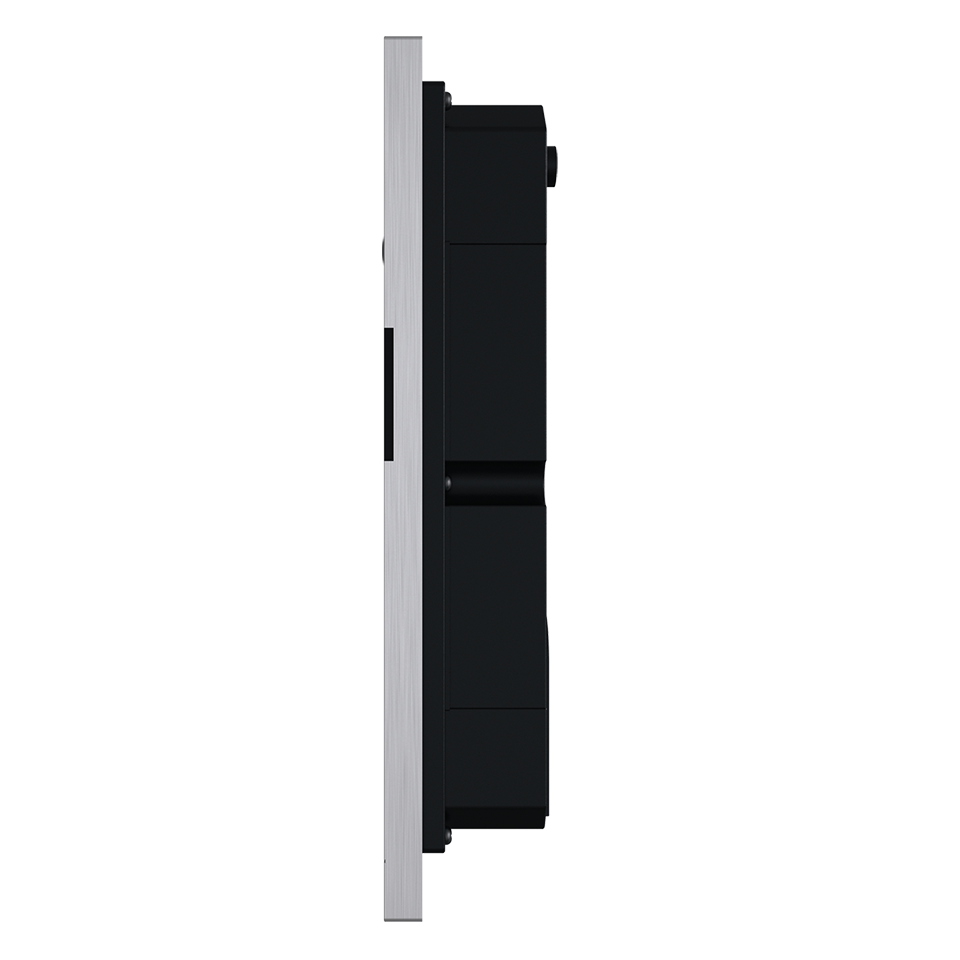

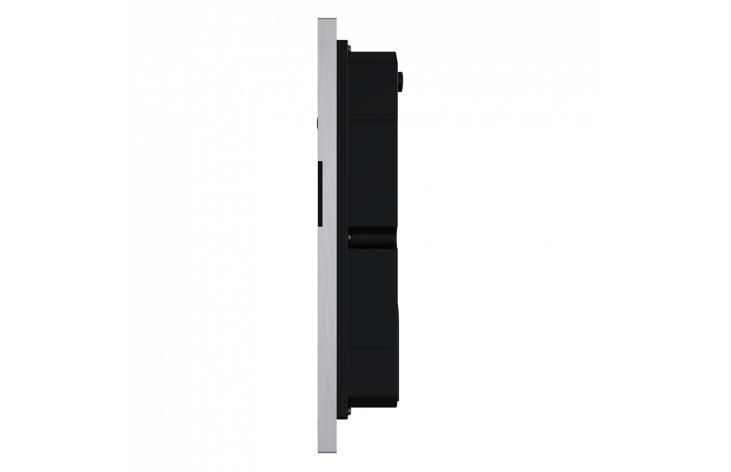

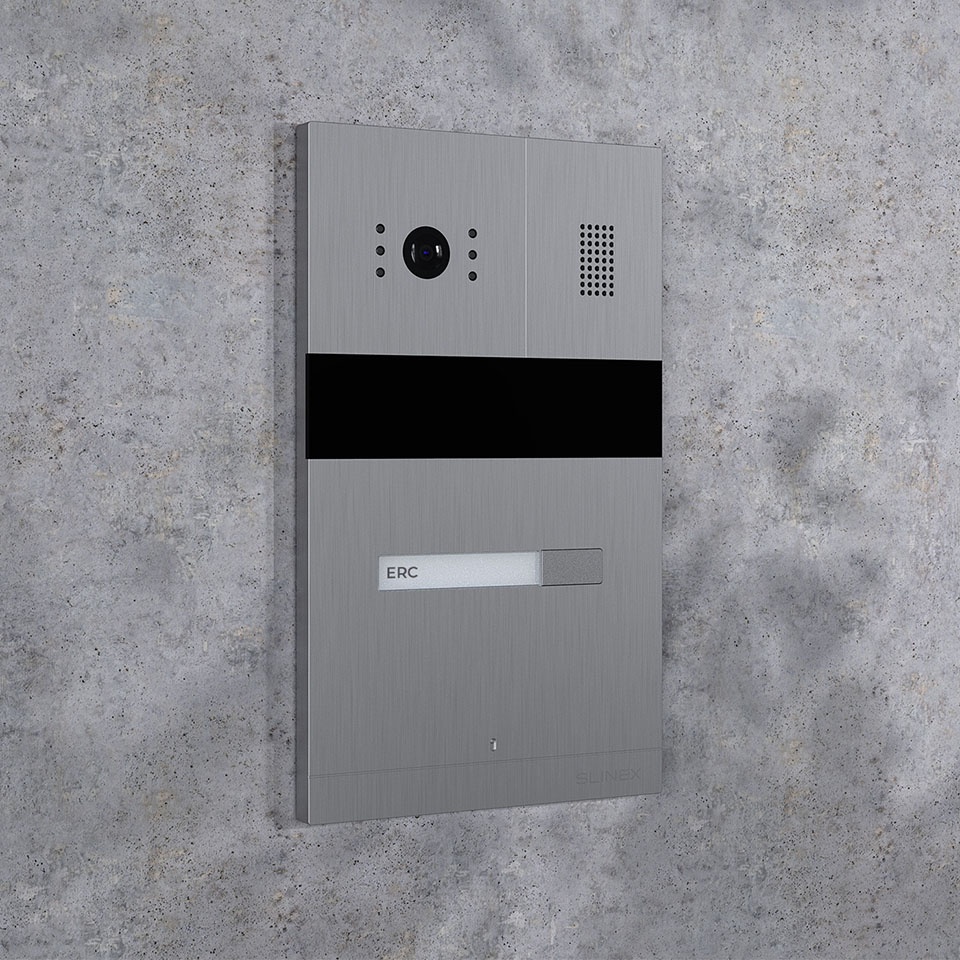

The outdoor panel can be flush mounted both outside and inside. Panel dimensions are 110x185x34 mm. The device works stably in a wide range of temperatures: from -40° to + 65°C.
Specifications of the model
The key feature is an availability of a combined reader of contactless cards from EM-Marin, Mifare/NFC for controlled and safe access to the premises. Internal memory is designed for up 248 cards.
The model is impressive with the presence of a mechanical IR filter, which provides better visibility in the dark and allows you to get a better picture, thanks to which the identification of the visitor is much easier not only in the afternoon, but also in the evening.
Appearance and camera

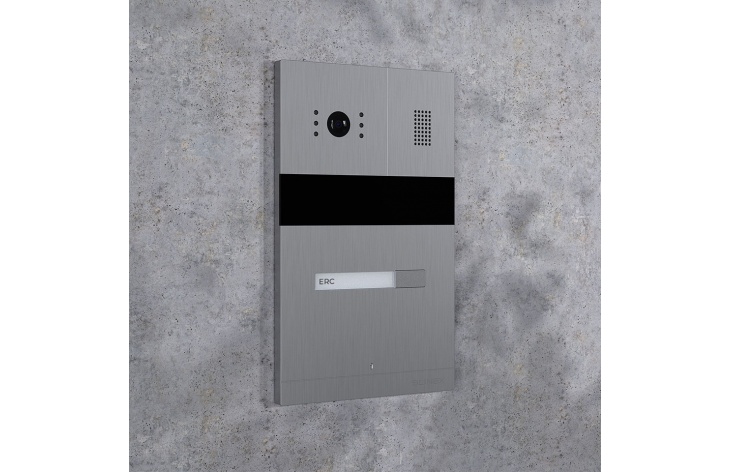

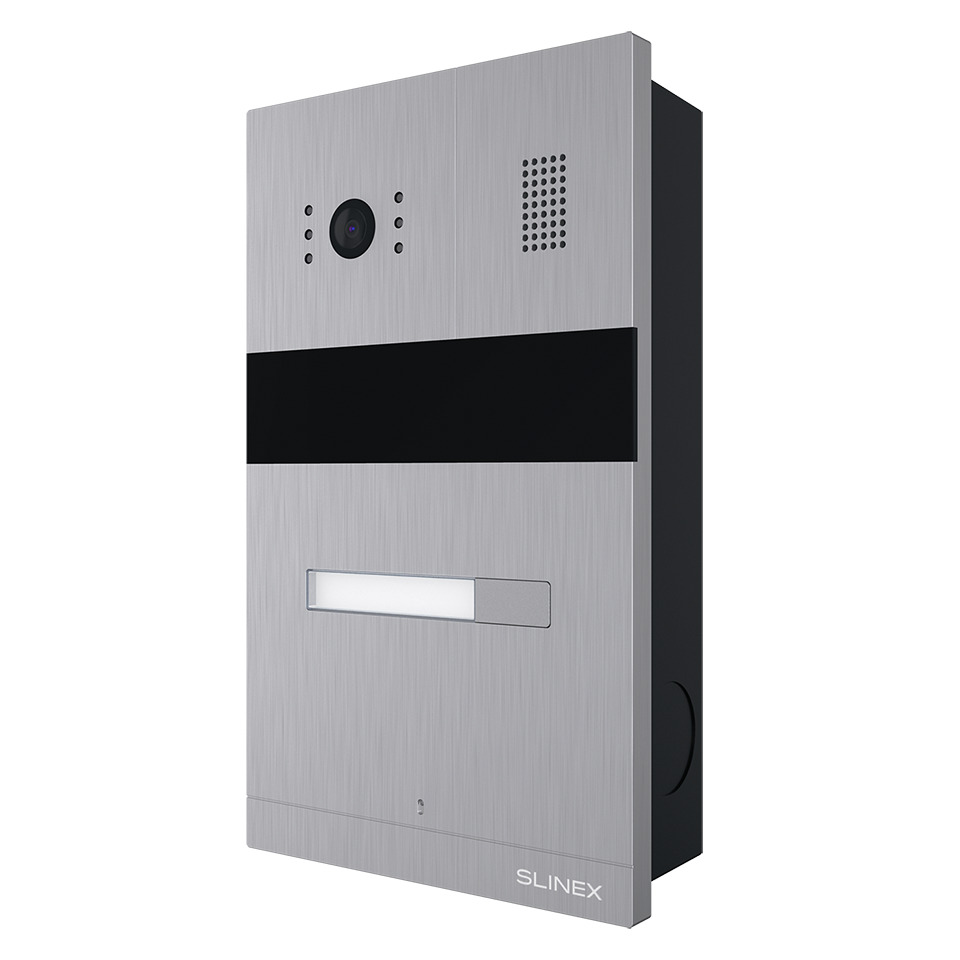

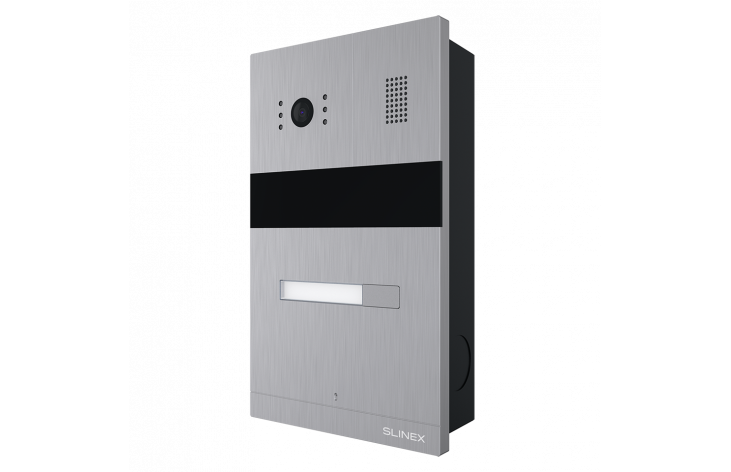

The MA-01 body is made of brushed aluminum and has a special acrylic insert for the reader. The protection class of the IP65 device indicates the stability of the panel to the effects of dust and moisture. The outdoor panel is presented in one color – “silver”, which is universal suitable for all types of building.
The panel is equipped with a 2 Mp (AHD) / 1 Mp (AHD) / 960 TVL (CVBS) camera with and 115° angle. The camera allows you to get high-quality images and video, and display them on the internal monitor.
Interoperability with additional devices
MA-01 is interoperable with any 4-wire intercoms. To increase a number of apartments in the system, you can connect an additional MA-08 extension module for 8 apartments.
- outdoor panel – 1 pc.
- power supply unit – 1 pc.
- contactless cards – 3 pcs.

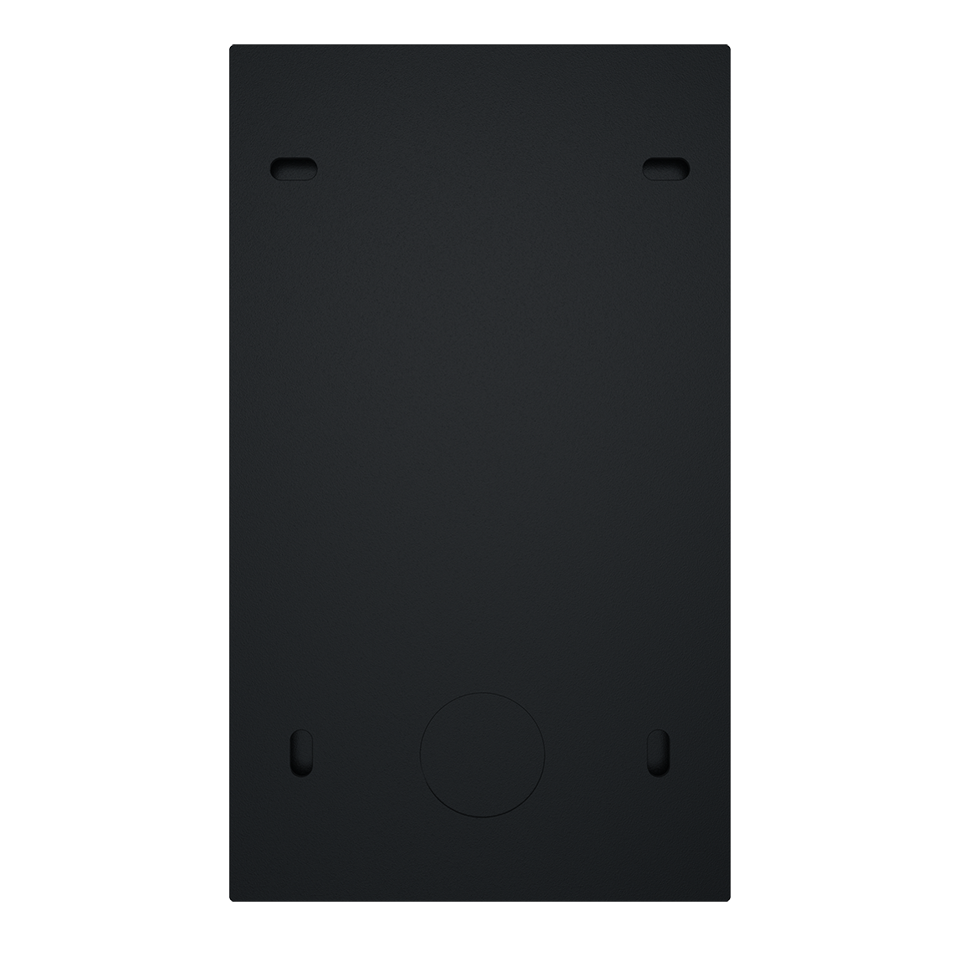

- flush mount box – 1 pc.
- wall mount bracket (optional) – 1 pc.
- set of conductive wires – 1 set.
- set of self-tapping screws and dowels – 1 set.
- operating instruction – 1 pc.
Flush mounting bracket
1. Prepare the recess in the wall at the location of the intended installation, at a height of 150-160 cm from the floor.
2. Fix the flush mount bracket into the wall.

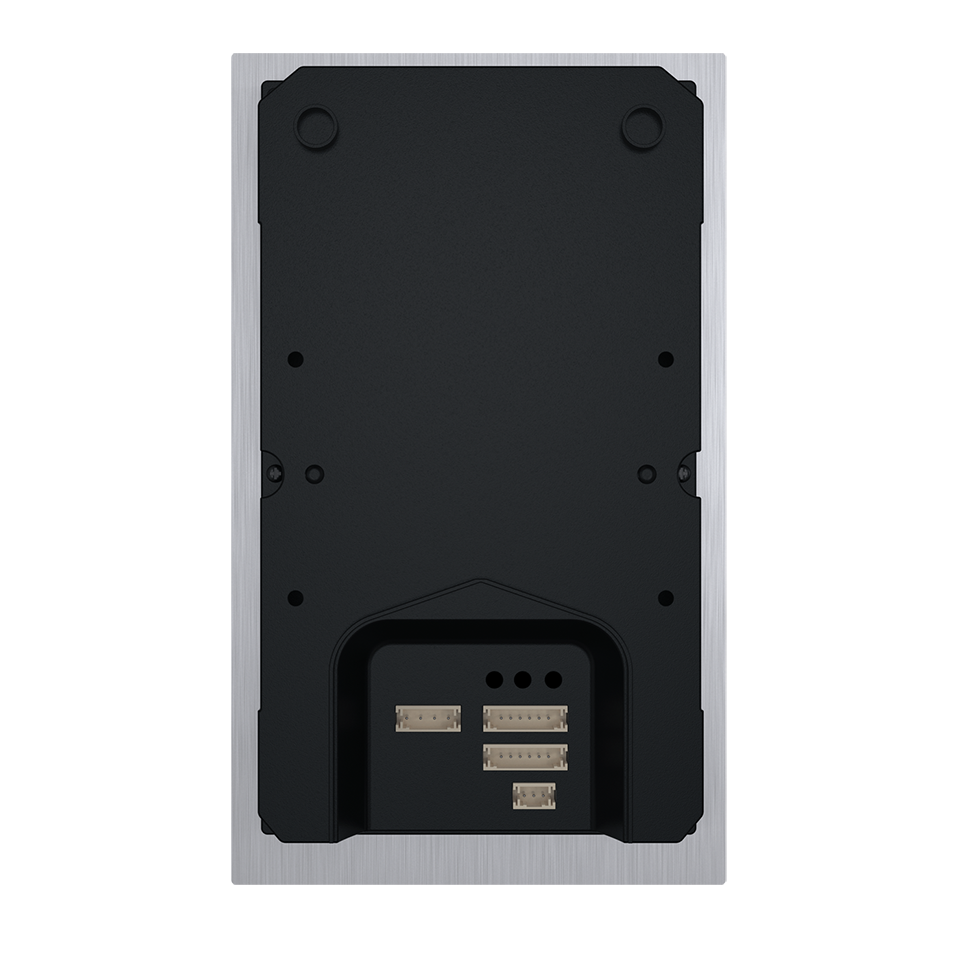

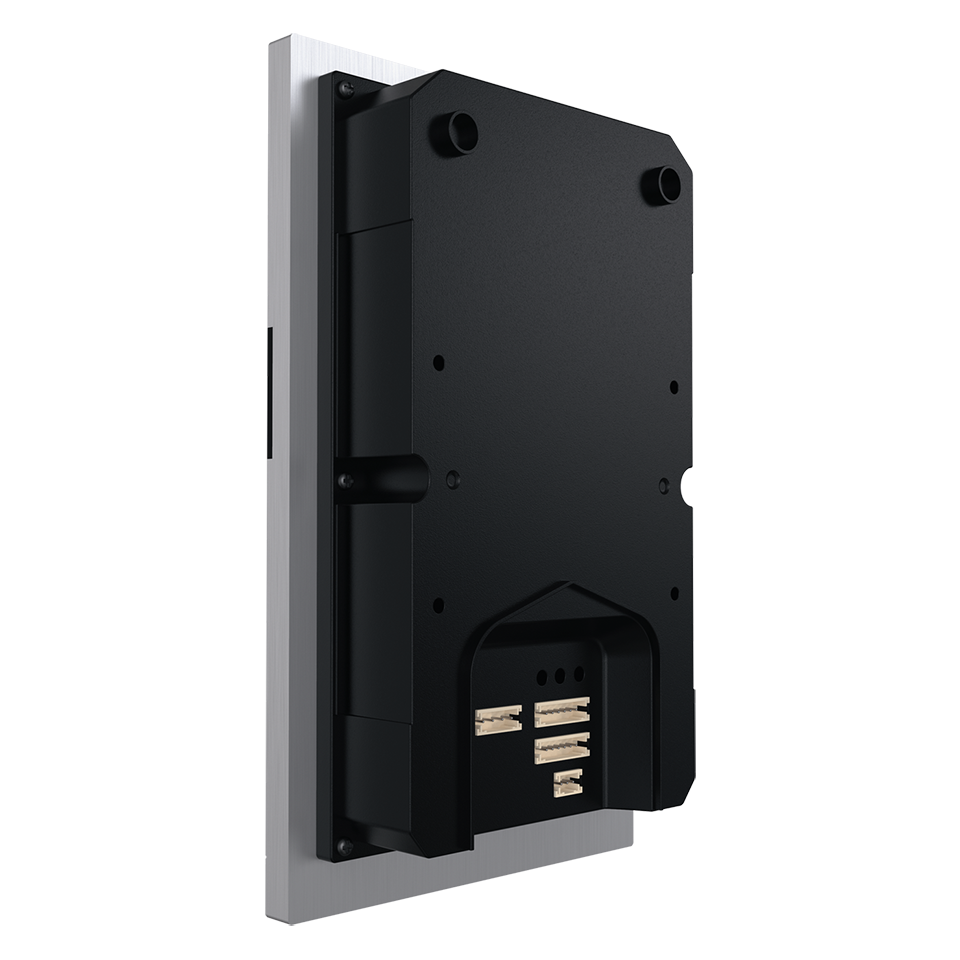

3. Connect the communication wires of the outdoor panel and fix the panel on the bracket with the 2 bolts included in the complete set on the side of the lower face.
Slinex MA-01 is a modern panel designed in stylish form factor with high functionality. This outdoor panel is simple and convenient to use.
2 Mp (AHD) / 1 Mp (AHD) / 960 TVL (CVBS)
-40 – +65 °С
• Mechanical IR cut filter
• Wide-angle lens
• Nameplates backlight
• Support up to 2 MA-08 extensions (18 subscribers)
Built-in card reader (EM-Marin, Mifare, NFC), supports both CVBS and AHD
